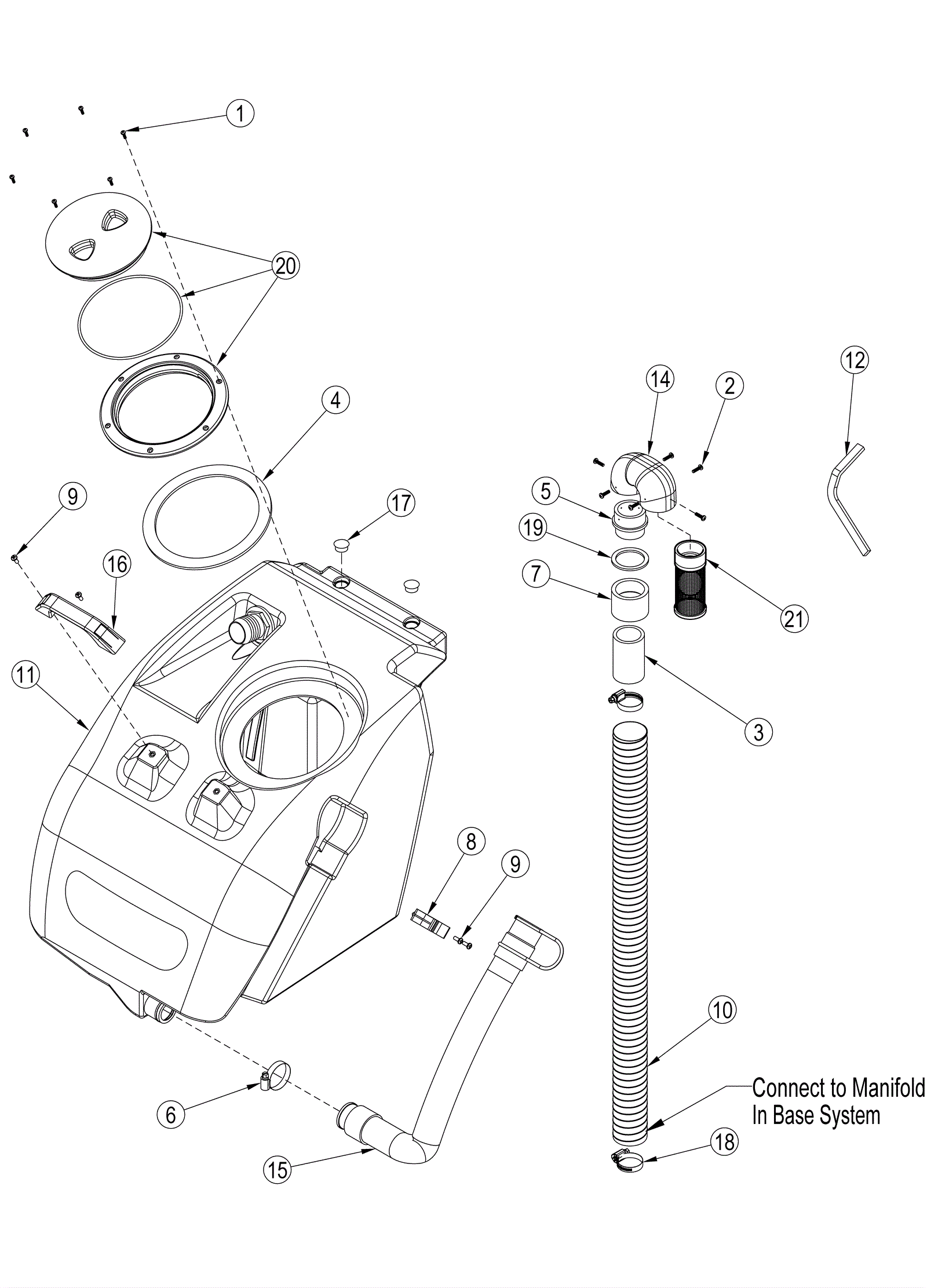

HYDRAPORT 200 Recovery Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-9339 Tank lid kit $176.61 6 (screw) usually ships 16-41 days
2 172-9341 Ball float kit $319.03 6 (screw) usually ships 1-5 days
3 209-0668 PVC pipe $9.60 3in usually ships 1-5 days
4 172-9339 Tank lid kit $176.61 1 (lid gasket) usually ships 16-41 days
5 172-9341 Ball float kit $319.03 1 (adapter) usually ships 1-5 days
6 270-8636 Hose clamp 3/4 x 1 3/4 SS $8.20 1 usually ships 16-41 days
7 270-8637 1 1/2 inch female adapter $8.20 1 usually ships 16-41 days
8 272-1159 Plastic clamp $9.60 1 ships same day
9 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 4 ships same day
10 172-9333 Vacuum hose $21.77 1 ships same day
11 209-6099 Recovery tank (white) $327.05 1 usually ships 1-5 days
12 172-9334 Gasket $10.24 1 usually ships 16-41 days
14 172-9341 Ball float kit $319.03 1 (ball float manifold) usually ships 1-5 days
15a 209-0669 Drain hose (OBSOLETE) $21.77 1 usually ships 16-41 days
15b 172-9338 Drain hose cap $12.18 1 usually ships 16-41 days
16 209-0656 Handle grip kit $34.19 1 usually ships 16-41 days
17 172-1803 Plug $10.90 2 usually ships 1-5 days
18 209-0657 Hose clamp $9.60 2 usually ships 1-5 days
19 172-9341 Ball float kit $319.03 1 (washer) usually ships 1-5 days
20a 172-9339 Tank lid kit $176.61 1 (lid) usually ships 16-41 days
20b 209-0386 O-ring $10.90 1 usually ships 16-41 days
21 172-9341 Ball float kit $319.03 1 (filter) usually ships 1-5 days
KIT 172-9339 Tank lid kit $176.61 1 usually ships 16-41 days
KIT 172-9341 Ball float kit $319.03 1 usually ships 1-5 days
