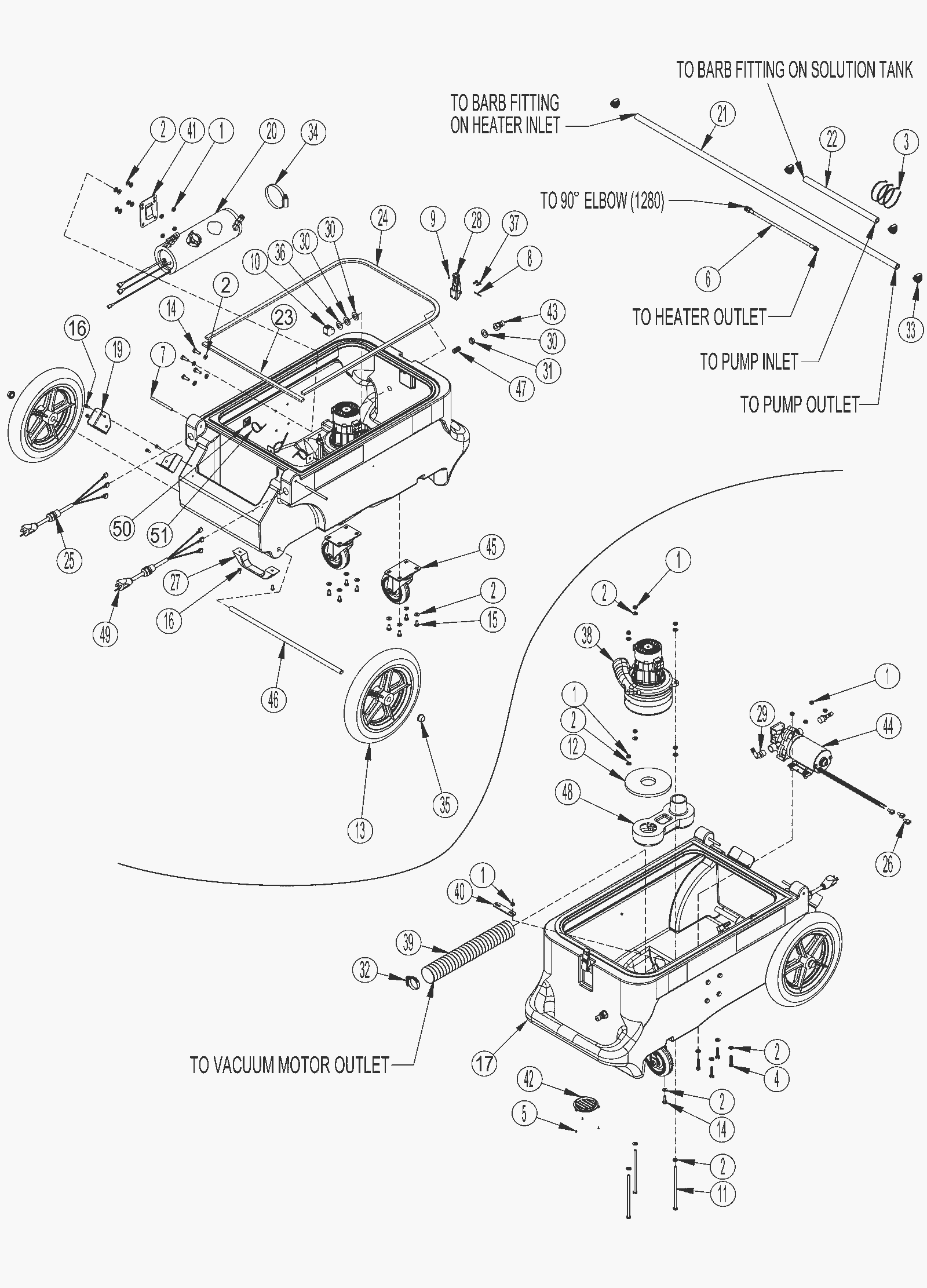

HYDRAPORT 100D Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-9138 Hardware base kit $44.79 15 (nut) usually ships 16-41 days
2 172-9138 Hardware base kit $44.79 34 (washer) usually ships 16-41 days
3 209-0652 8 inch tie (black) $7.47 3 usually ships 1-5 days
4 172-9138 Hardware base kit $44.79 4 (bolt) usually ships 16-41 days
5 172-9138 Hardware base kit $44.79 3 (screw) usually ships 16-41 days
6 209-0622 Braided hose $44.79 1 usually ships 16-41 days
7 209-0648 Hinge pin $11.99 2 usually ships 1-5 days
8 172-9138 Hardware base kit $44.79 1 (screw) usually ships 16-41 days
9 172-9138 Hardware base kit $44.79 1 (nut) usually ships 16-41 days
11 172-9138 Hardware base kit $44.79 3 (bolt) usually ships 16-41 days
12 209-0005 Vacuum motor gasket $13.40 1 usually ships 16-41 days
13 209-0357 12 inch wheel $57.08 2 usually ships 16-41 days
14 172-9138 Hardware base kit $44.79 5 (screw) usually ships 16-41 days
15 172-9138 Hardware base kit $44.79 8 (screw) usually ships 16-41 days
16 999-0898 Screw 10-16 x 3/4 pan head phillips stainless steel type B $0.99 6 ships same day
17a 209-6086 Base $402.90 1 (100S) usually ships 1-5 days
17b 209-0653 Base $387.70 1 (100D) usually ships 1-5 days
19 209-6087 Wand bracket $11.99 2 usually ships 1-5 days
20a 209-0654 120V heater $805.83 1 (100S) usually ships 1-5 days
20b 209-0655 120V heater $529.98 1 (100D) usually ships 16-41 days
21 172-9136 Hose (red) $10.56 1 usually ships 1-5 days
22 209-6088 Hose (red) $9.02 1 usually ships 1-5 days
23 272-6804 Gasket $9.02 1 usually ships 16-41 days
24 209-6090 Gasket $9.02 1 usually ships 16-41 days
25 272-6805 Pigtail power cord $20.86 1 usually ships 16-41 days
26 172-9140 100PSI pump kit $761.01 3 (terminal) usually ships 16-41 days
27 209-0656 Handle grip kit $37.61 1 usually ships 16-41 days
28 172-0094 Latch $43.41 1 ships same day
29 172-9140 100PSI pump kit $761.01 2 (hose barb) usually ships 16-41 days
30 172-9138 Hardware base kit $44.79 3 (washer) usually ships 16-41 days
31 209-0125 Fiber bushing $13.40 1 usually ships 16-41 days
32 209-0657 Hose clamp $10.56 1 usually ships 1-5 days
33 209-0604 Hose clamp $10.56 4 ships same day
34 209-0405 Hose clamp $5.26 1 usually ships 1-5 days
35 170-5410 Axle cap (OBSOLETE) $10.56 2 usually ships 16-41 days
36 172-9138 Hardware base kit $44.79 1 (washer) usually ships 16-41 days
37 172-9138 Hardware base kit $44.79 2 (bolt) usually ships 16-41 days
38a 209-0330 120V 3 stage vacuum motor $216.68 1 ships same day
38b 209-0658 Carbon brush kit $17.90 1 usually ships 16-41 days
39 209-0344 Vacuum hose $11.99 1 usually ships 16-41 days
40 209-0345 Vacuum hose bar (OBSOLETE) $5.28 1 usually ships 1-5 days
41 209-0621 Heat exchanger mount $10.56 1 usually ships 1-5 days
42 209-0659 Louver $10.56 1 usually ships 1-5 days
43 209-0336 Male quick disconnect $16.50 1 usually ships 16-41 days
44 172-9140 100PSI pump kit $761.01 1 (pump) usually ships 16-41 days
45 209-0480 Caster wheel (gray) $27.18 2 ships same day
46 209-0356 Axle rod $16.50 1 usually ships 16-41 days
47 209-0124 Nipple $11.26 1 usually ships 16-41 days
48 209-0132 Vacuum manifold $113.41 1 usually ships 16-41 days
49 272-6811 Pigtail power cord (red) $20.86 1 (100D) usually ships 16-41 days
50 N/A Not available Call for price 3 (Mounting pad) usually ships 3-26 days
51 272-6806 4 inch tie $7.47 3 usually ships 1-5 days
KIT 172-9138 Hardware base kit $44.79 1 usually ships 16-41 days
KIT 172-9140 100PSI pump kit $761.01 1 usually ships 16-41 days
N/S 209-0354 25 foot power cord $93.14 2 (qty of 1 for 100S) usually ships 16-41 days
N/S 272-6802 Main harness $186.96 1 usually ships 16-41 days
N/S 209-0333 Bi-metallic heat repair kit $246.26 1 (100D) usually ships 16-41 days
N/S 209-0662 Bi-metallic heat repair kit $156.64 1 (100S) usually ships 1-5 days
