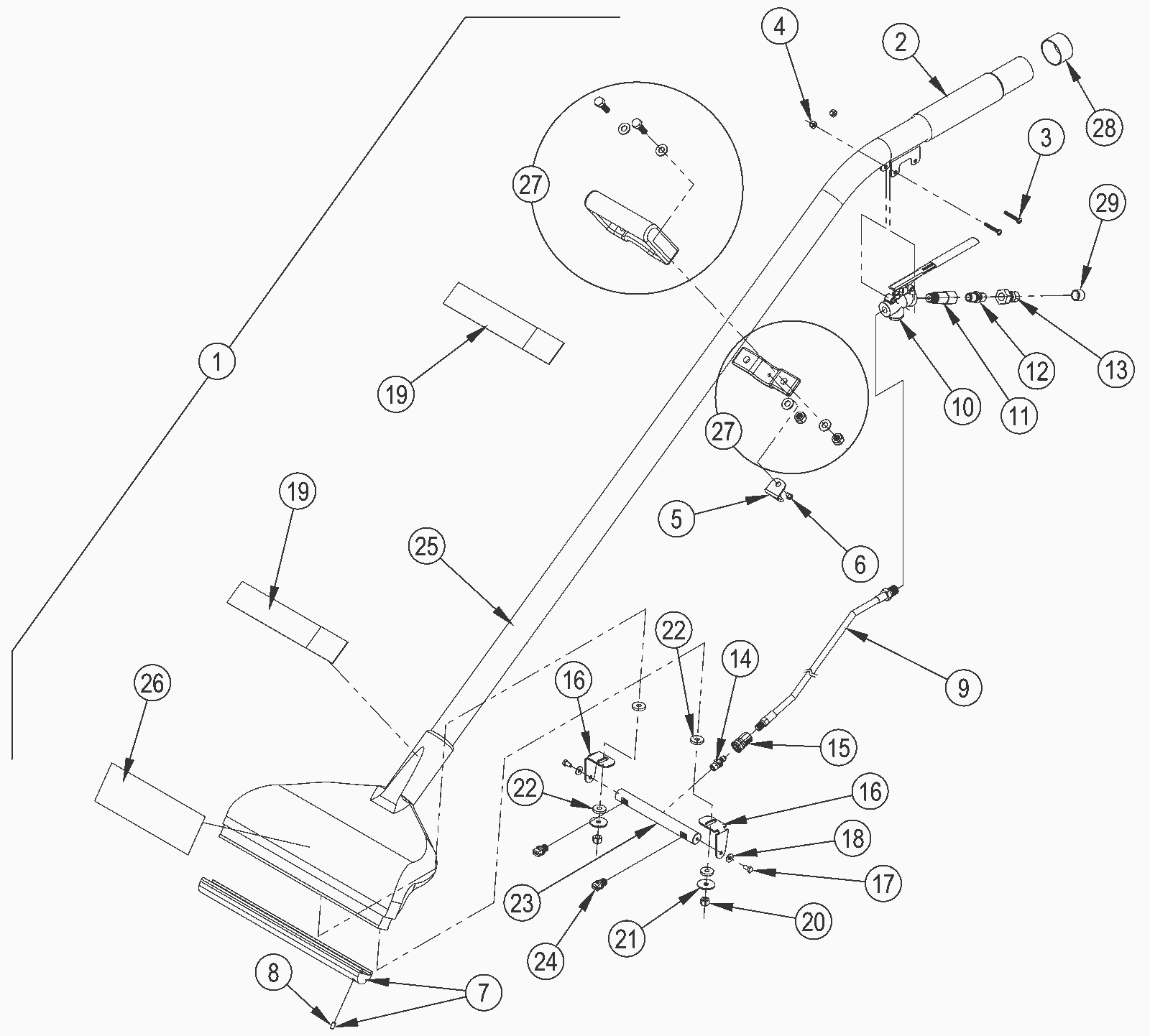

Evolution wand

#PartDescription ReqNotesAvailability
01a 209-0300 Evolution carpet wand 1
01b 209-0300 Evolution carpet wand 1
01c 209-0300 Evolution carpet wand 1
02 209-0301 6 inch sleeve 1
03 209-0255 Screw 8-32 x 1 1/2 2
04 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 2
05 209-0304 D-ring 1
06 209-0305 Bolt 10-32 x 3/8 1
07 209-0466 Slotted glide plate 1
08 999-1533 Screw 10-24 x 3/8 set socket cup point stainless steel 1
09 209-0308 Solution hose assembly (OBSOLETE) 1
10a 209-0264 Spray valve (on handle) 1
10b 209-0467 Valve rebuild kit 1
11 209-0274 Inline filter 1
12 170-3055 1/4 hex nipple 1
13 209-0336 Male quick disconnect 1
14 209-0099 Male quick disconnect 1
15 209-0468 Brass quick disconnect socket 1
16 209-0310 Spray tube bracket 2
17 999-1276 Screw 10-32 x 3/8 hex head stainless steel 2
18 999-0998 Washer #10 flat stainless steel 2
19 209-0313 Hook and loop strap 2
20 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
21 172-0548 Washer 17/64 x 47/64 flat stainless steel 2
22 209-0258 Washer 4
23 209-0307 Manifold 1
24a 209-0265 Spray tip 11003 (sold individually) 2 150 PSI
24b 209-0470 Brass spray tip 110015 2 300 PSI
24c 209-0369 Spray tip 2 500 PSI
25 209-0471 Bare evolution wand (OBSOLETE) 1 (Includes items 02, 03, 04, 07, 26, 27, and 28)
26 209-0472 Evolution decal 1
27 209-0473 Handle 1
28 209-0474 1 1/2 inch vinyl cap (black) 1
29 209-0469 1/2 inch vinyl cap (black) 1
