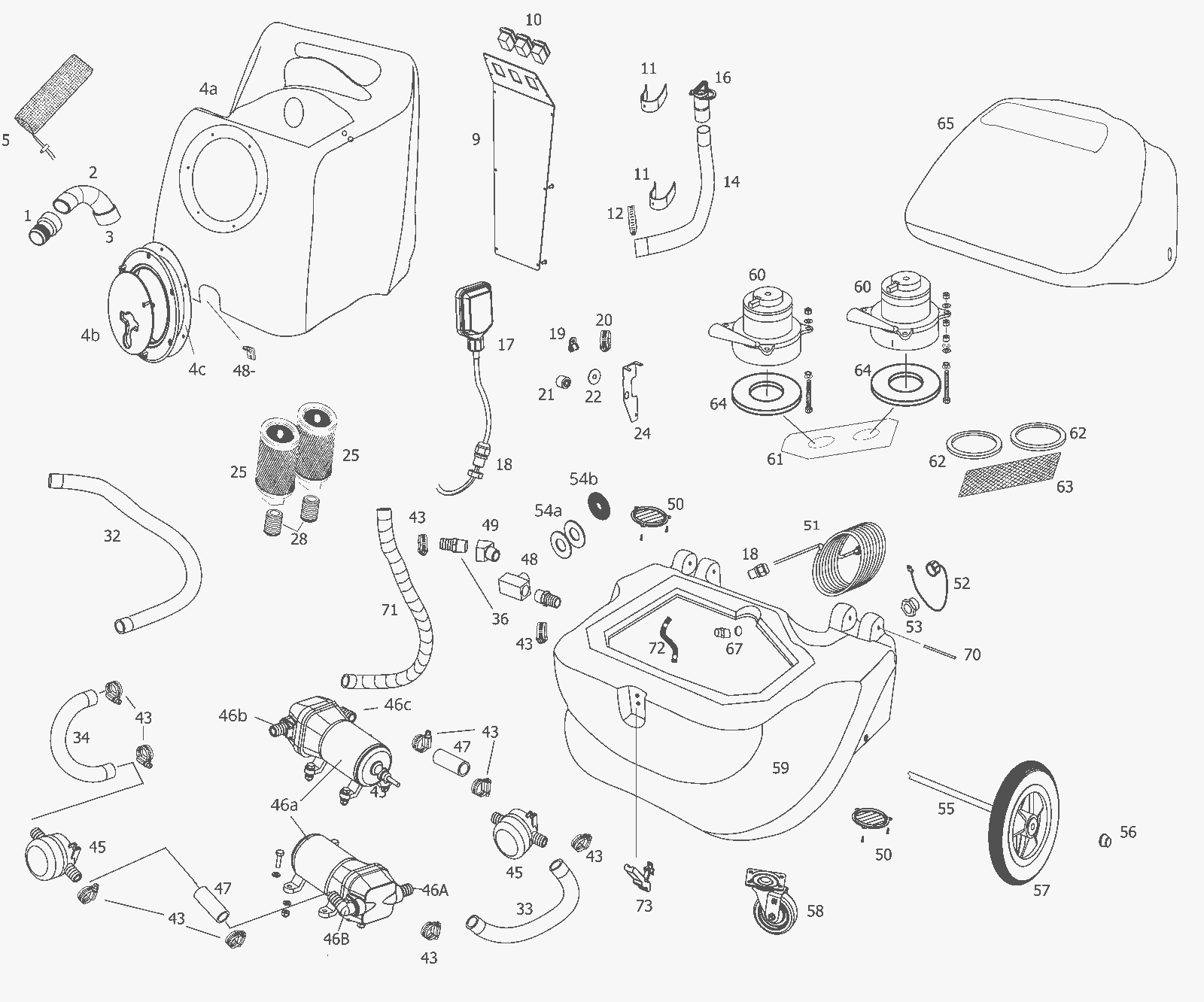

General Assembly

#PartDescription ReqNotesAvailability
1 209-2349 1 ½ inch hose barb 1
2 209-2350 45 Degree ABS elbow 3
3 209-2049 BUSHING FLUSH-ABS-3X2-SPXH 1
4a 209-2351 Recovery tank 1
4b 272-6031 Lid with mounting ring 1
4c 272-6026 Gasket 1
5 209-2354 Vacuum inlet strainer bag 1
9 209-2355 Switch plate 1
10 172-3539 Switch with cover (OBSOLETE) 1
11 209-0269 Cord strap (OBSOLETE) 1
12 270-8636 Hose clamp 3/4 x 1 3/4 SS 1
14 209-0092 Dump hose 1
16 172-9338 Drain hose cap 1
17 209-0690 90° float switch 1
18 209-0677 Cord retainer 1
19 172-2467 Wire clamp 1
20 270-8636 Hose clamp 3/4 x 1 3/4 SS 1
21 209-2356 Float spacer 1
22 209-2357 Rubber flat washer 1
24 209-2358 Float mounting bracket 1
25 209-0270 Inlet filter 60 mesh 1
28 209-2359 PVC nipple ¾ x 1 3/8 inch 1
33 209-2361 Hose ¾ x 14 inch 1
34 209-2362 Hose ¾ x 13 inch 1
36 209-2363 Brass hose barb 1
43 209-2364 Hose clamp 1
45 209-2365 50 mesh in-line filter 1
46a 209-0277 120V dump pump 1
46b N/A Not available 1 (hose barb from pump)
46c 209-2050 HOSE BARB 3/4 QUAD PORT 90 D 1
48 209-2057 TEE BRANCH MALE 1/2 BRASS 1
49 209-2367 45 Degree brass elbow 1
50 372-3715 Shutter 1
51 209-0143 Yellow power cord 1
52 209-0441 Hose cap with chain 1
53 209-2368 Hose fitting 1
54a 209-2369 Flat washer 1
54b 209-2100 WASHER RUBBER 1 X 5/8 ID X 1
55 372-1304 Axle rod (zinc) 1
56 170-5410 Axle cap (OBSOLETE) 1
57 209-0106 10 inch wheel 1
58 209-0480 Caster wheel (gray) 1
59 209-2371 Black drilled base 1
60 209-0337 120V 3 stage vacuum motor 1
61 209-2372 Vacuum manifold 1
62 209-2373 Under Vac manifold gasket 1
63 209-2374 Vacuum inlet wire filter screen 1
64 209-0632 Adhesive gasket 1
65 209-2375 Over vacuums cover 1
67 209-0141 PVC reducer 1
70 209-0648 Hinge pin 1
71 209-2376 10 inch Reinforced hose 1
72 209-0605 Strap with grommet 1
73 209-2377 Latch and strike 1
N/S 209-2378 25 foot vacuum inlet hose 1
N/S 209-0250 Hose cuff (obsolete) 1
N/S 209-2379 50 foot drain hose 1
N/S 209-2380 Hose mesh bag 1
