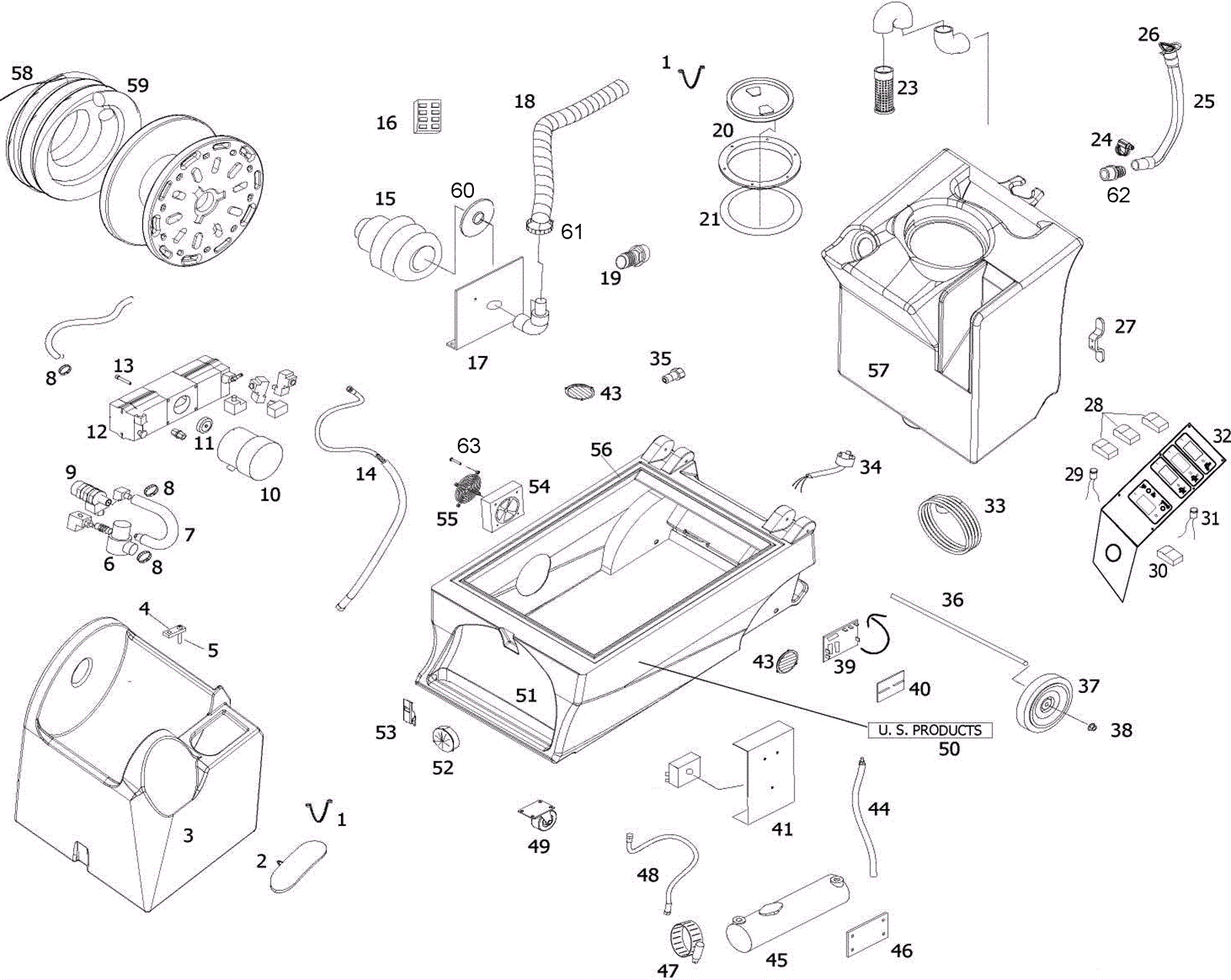

COBRA PLUS 310 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-2474 8 inch chain $10.85 1 usually ships 16-41 days
2 209-0290 Solution tank lid (OBSOLETE) $56.49 1 usually ships 16-41 days
3 209-0078 White KC holding tank (OBSOLETE) Call for price 1 usually ships 1-5 days
4 209-0396 Glide $7.67 1 usually ships 1-5 days
5 209-0227 Screw 6-32 x 1/2 inch $0.99 1 usually ships 1-5 days
6 209-0611 Solenoid $383.41 1 usually ships 1-5 days
7 209-0076 24 inch pump inlet hose (sold by the inch) (OBSOLETE) Call for price 1 usually ships 16-41 days
8 209-0657 Hose clamp $10.85 1 usually ships 1-5 days
9 209-0613 Bypass valve $129.05 1 usually ships 16-41 days
10 172-2452 1/3HP motor for 300 PSI pump $578.72 1 usually ships 16-41 days
11 209-6164 Cam/bearing assembly $87.54 1 usually ships 16-41 days
12 209-6165 Complete pump (OBSOLETE) Call for price 1 (no motor or solenoid) usually ships 16-41 days
13 209-0615 Screw 1/4-20 x 2 cap $24.60 1 usually ships 1-5 days
14 209-6166 Pump to gauge hose assembly (OBSOLETE) Call for price 1 usually ships 16-41 days
15 209-0015 120V 3 stage vacuum motor tangential discharge $448.80 1 usually ships 5-8 days
16 209-0322 25amp relay $110.79 1 usually ships 1-5 days
17 209-0400 Vacuum motor mount manifold $183.90 1 usually ships 1-5 days
18 209-0401 1 1/2 inch vacuum hose (clear) $19.98 1 usually ships 16-41 days
19 172-2481 Hose barb $15.48 1 usually ships 16-41 days
20 225-0032 6 inch clear lid with deck plate ring $163.50 1 usually ships 5-16 days
21 209-0088 Gasket lid $12.31 1 ships same day
23 209-0089 Ball float and manifold assembly $643.69 1 usually ships 1-5 days
24 209-0657 Hose clamp $10.85 1 usually ships 1-5 days
25 209-0092 Dump hose $24.60 1 ships same day
26 172-9338 Drain hose cap $13.76 1 usually ships 16-41 days
27 209-0093 Cord wrap $130.02 1 usually ships 1-5 days
28 209-0094 Switch (OBSOLETE) $88.55 1 usually ships 16-41 days
29 172-3551 Light (green) $18.38 1 usually ships 16-41 days
30 209-0094 Switch (OBSOLETE) $88.55 1 usually ships 16-41 days
31 209-0640 Light (red) $8.80 1 usually ships 1-5 days
32 209-2031 SWITCH PLATECOBRA PLUS13 GALL (OBSOLETE) $57.64 1 usually ships 16-41 days
33 209-0097 12/3 extension cord 25 foot $181.01 1 ships same day
34 172-2451 Power cord receptacle $92.03 1 usually ships 16-41 days
35 209-0336 Male quick disconnect $16.95 1 usually ships 16-41 days
36 209-0107 Axle $0.99 1 usually ships 1-5 days
37 209-0106 10 inch wheel $275.91 1 usually ships 1-5 days
38 170-5410 Axle cap (OBSOLETE) $10.85 1 usually ships 16-41 days
39 209-0101 PCB dual circuit sensor board (OBSOLETE) $320.16 1 usually ships 16-41 days
40 209-0100 PCB mount $70.50 1 usually ships 1-5 days
41 209-0453 Heat sink plate $18.38 1 usually ships 1-5 days
43 372-3715 Shutter $11.69 1 usually ships 16-41 days
44 209-6167 27 3/4 inch hydraulic hose (OBSOLETE) Call for price 1 usually ships 16-41 days
45 209-6140 Complete heat exhange (OBSOLETE) $522.50 1 usually ships 16-41 days
46 209-0621 Heat exchanger mount $10.85 1 usually ships 1-5 days
47 209-0120 Hose clamp (OBSOLETE) $4.92 1 usually ships 1-5 days
48 209-6168 13 inch hydraulic hose $100.10 1 usually ships 16-41 days
49 209-0480 Caster wheel (gray) $27.92 1 ships same day
50 209-6169 CP-310 decal (OBSOLETE) Call for price 1 usually ships 16-41 days
51 209-0072 Base (black) (OBSOLETE) $76.67 1 usually ships 1-5 days
52 209-0011 PSI pressure gauge $59.31 1 usually ships 16-34 days
53 172-2487 Black rubber latch with strike $111.99 1 ships same day
54 209-0074 Cooling fan $73.59 1 usually ships 16-41 days
55 209-0075 Guard fan $12.31 1 usually ships 1-5 days
56 209-0292 Gasket $60.06 1 usually ships 1-5 days
57 209-0294 Vacuum tank (white) (OBSOLETE) $113.85 1 usually ships 1-5 days
58 209-0252 15 foot solution hose $513.19 1 usually ships 1-5 days
59 209-0251 15 foot vacuum hose $41.84 1 usually ships 1-5 days
60 209-0284 Vacuum motor gasket $10.85 1 usually ships 16-41 days
61 209-0657 Hose clamp $10.85 1 usually ships 1-5 days
62 172-2481 Hose barb $15.48 1 usually ships 16-41 days
63 209-0159 Screw 6/32 inch x 2 inch-1/4 $9.26 1 usually ships 1-5 days
KIT 1 209-0113 Heat repair kit w/ probe, thermistor control, cutout & board $667.60 1 usually ships 1-5 days
KIT 2 209-0114 Heat repairkitw/probe,thermistor control & circuit board(OBS $641.04 1 usually ships 16-41 days
KIT 3 209-0297 Vacuum hose and pressure line with reel $574.78 1 usually ships 1-5 days
KIT 4 209-0229 Vacuum and solution hose assembly (OBSOLETE) $209.55 1 usually ships 1-5 days
