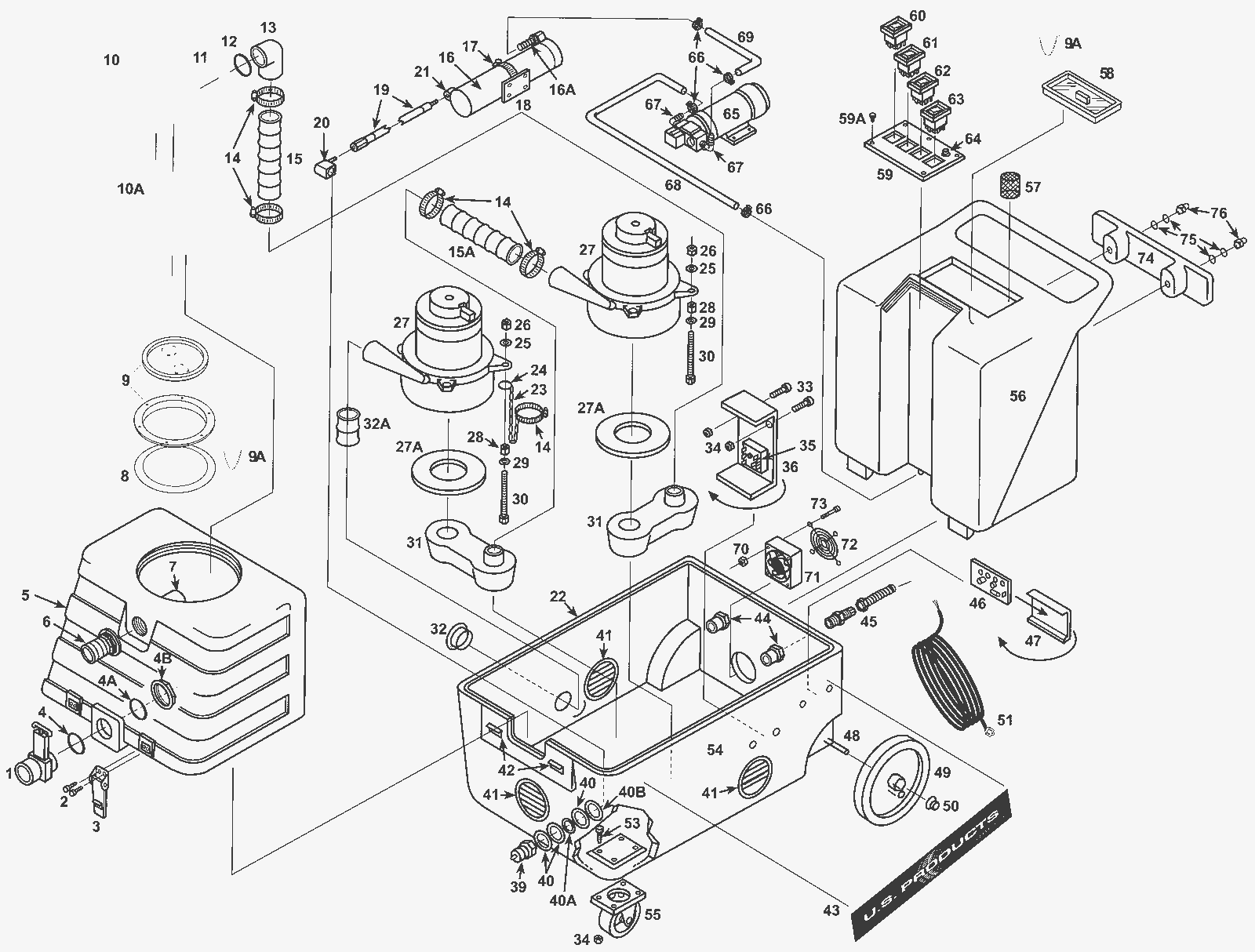

Complete Assembly

#PartDescription ReqNotesAvailability
1 209-2203 DRAIN GATE ASSEMBLY FOR COBRA
2 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel
3 172-0094 Latch
4 270-8075 O-ring
4A 209-0341 Rubber washer
4B 170-0647 Lock nut
5 372-1370 Vacuum tank
6 172-2481 Hose barb
7 172-2473 PVC elbow 1-1/2
8 209-0088 Gasket lid
9A 209-0394 8 inch lid chain (OBSOLETE)
10 209-0071 Complete ball float assembly (OBSOLETE)
11 170-0647 Lock nut
12 209-0341 Rubber washer
13 172-2473 PVC elbow 1-1/2
14 209-0657 Hose clamp
15 209-2339 Vacuum hose
15A 209-2344 Vacuum hose
16 209-0007 Complete heat exchanger (OBSOLETE)
16A 209-0460 Hose barb 3/8 x 1/8 pt
17 209-0405 Hose clamp
18 209-0621 Heat exchanger mount
19 270-8093 Heater to outlet hose (OBSOLETE)
20 209-0609 90 degree elbow
22 372-1373 Gasket
23 N/A Not available (chain)
24 209-0128 Split ring
25 999-0006 Washer 3/16 flat zinc plated
26 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel
27 209-0004 120V 2 stage vacuum motor with gasket and connectors
27A 209-0005 Vacuum motor gasket
28 170-6639 Nut 1/4-20
29 999-1049 Washer 1/4 split lock zinc plated
30 999-0682 Bolt 1/4-20 x 3 1/2 hex head grade 5 zinc plated
31 209-0132 Vacuum manifold
32 209-0139 Exhaust flange
32A 209-0079 Exhaust hose (sold by the inch)
33 999-0297 Bolt 1/4-20 x 1 hex head stainless steel
34 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel
35 209-0114 Heat repairkitw/probe,thermistor control & circuit board(OBS (for machines built before 7/2005)
36 209-0108 Heat sink plate
39 209-0336 Male quick disconnect
40 209-0628 Washer
41A 209-0125 Fiber bushing
40B 209-6081 Washer
41 372-3715 Shutter
42 209-0140 Latch strike
43 209-6154 Cobra-H decal (OBSOLETE)
44 209-0141 PVC reducer
45 209-0142 Cord retainer
46 209-0101 PCB dual circuit sensor board (OBSOLETE)
47 209-0100 PCB mount
48 N/A Not available (axle)
49 209-0145 Wheel inch8
50 170-5410 Axle cap (OBSOLETE)
51 209-0143 Yellow power cord
53 209-0148 Bolt 1/4 inch x 3/4 inch
54 209-6155 Base
55 270-8083 Castor (OBSOLETE)
56 372-1377 Holding tank
57 209-0150 Filter
58 270-8137 Tinted tank lid
59 209-6125 Switch plate
59A 272-6814 Screw M4 x .375mm
60 172-3539 Switch with cover (OBSOLETE)
64 172-3551 Light (green)
65 209-0006 100psi pump
66 209-0604 Hose clamp
67 209-0058 Hose barb elbow 3/8 inch x 3/8 inch
68 209-2346 13 inch hose
69 209-0153 Outlet hose 3/8 inchx 4'
70 270-8623 Nut nylon lock 6/32 Z.P
71 209-0074 Cooling fan
72 209-0075 Guard fan
73 209-0159 Screw 6/32 inch x 2 inch-1/4
74 209-0162 Cord wrap
75 209-0164 Washer, nylon
76 209-0163 Nut 3/8 inch acron
N/S 209-0020 Vac dome assy inc. gasket and dome (OBSOLETE) (includes 8 and 9) (for machines built before 2-15-2005)
