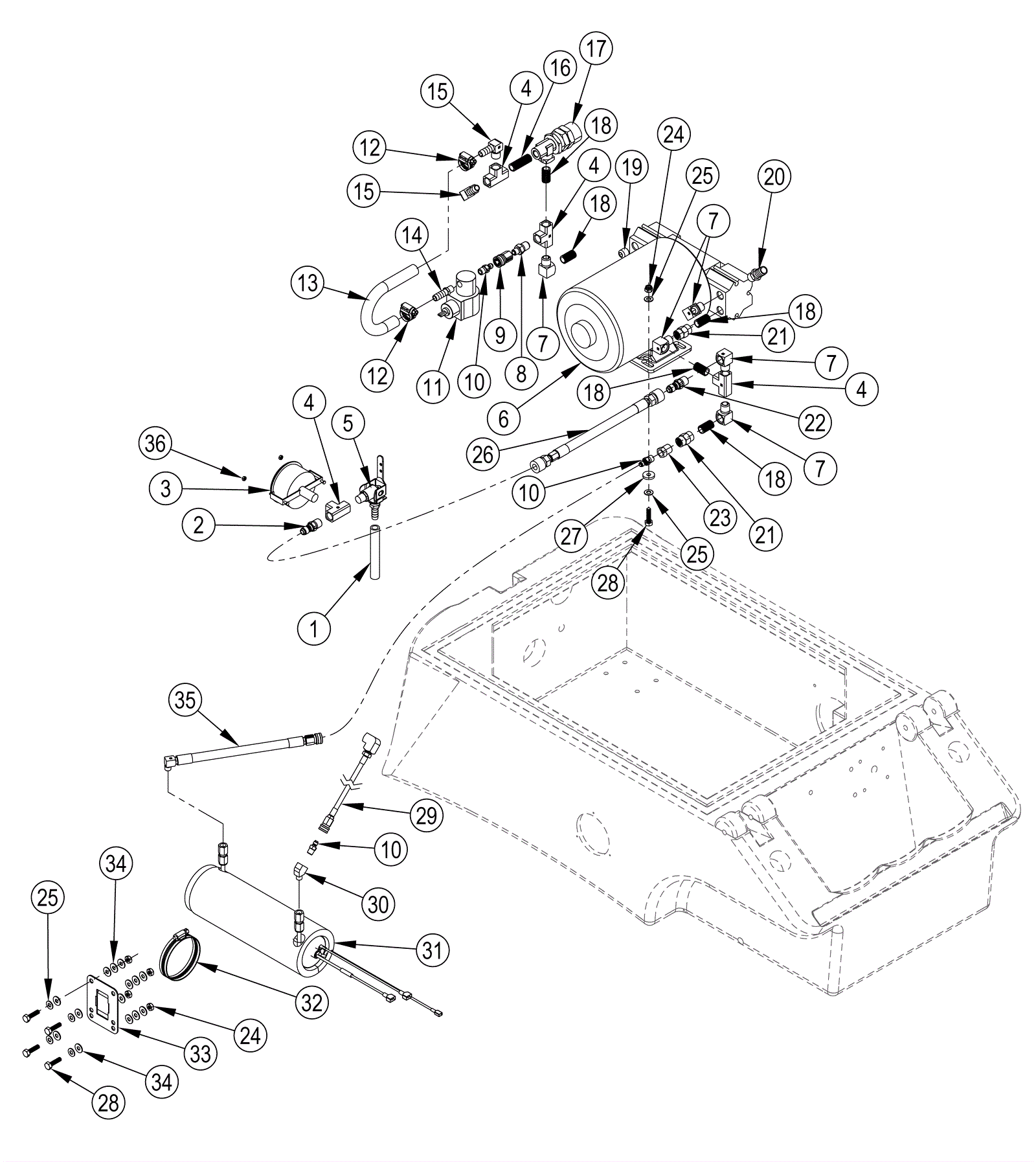

KING COBRA 310 Plumbing Assembly

#PartDescriptionPriceReqNotesAvailability
1 472-7659 HOSE-PVC $10.85 1 usually ships 17-28 days
2 209-0618 Quick connect plug $10.85 1 usually ships 17-28 days
3 209-0011 PSI pressure gauge $59.31 1 usually ships 17-28 days
4 209-0610 1/4 inch tee brass $12.31 4 usually ships 17-28 days
5 209-0371 Power prime valve $95.66 1 usually ships 17-28 days
6a 209-2217 PUMP & MOTOR COMPLETE KC-310 $2,444.97 1 usually ships 17-28 days
6b 209-6137 Pump with solenoid $1,817.20 1 usually ships 17-28 days
6c 209-6133 Pump $954.25 1 usually ships 17-28 days
7 209-0609 90 degree elbow $10.85 5 usually ships 17-28 days
8 172-1342 Male reducer nipple $12.31 1 usually ships 17-28 days
9 209-0468 Brass quick disconnect socket $15.48 1 usually ships 17-28 days
10 209-0099 Male quick disconnect $10.85 3 usually ships 1-5 days
11 209-0611 Solenoid $383.41 1 usually ships 1-5 days
12 209-0604 Hose clamp $10.85 2 ships same day
13 209-0076 24 inch pump inlet hose (sold by the inch) (OBSOLETE) Call for price 8 inches usually ships 17-28 days
14 209-0460 Hose barb 3/8 x 1/8 pt $9.26 1 usually ships 1-5 days
15 209-0627 90 degree hose barb 3/8 inch brass $11.80 2 usually ships 1-5 days
16 209-0293 Pipe $9.26 1 usually ships 1-5 days
17 209-0613 Bypass valve $129.05 1 usually ships 17-28 days
18 209-0124 Nipple $11.57 5 usually ships 17-28 days
19 209-0614 1/4 inch plug $9.26 1 usually ships 17-28 days
20 209-0449 Hose barb $12.31 1 usually ships 17-28 days
21 209-6138 1/4 inch brass coupling pipe $7.67 2 usually ships 17-28 days
22 209-0618 Quick connect plug $10.85 1 usually ships 17-28 days
23 170-5417 Bushing $12.31 1 usually ships 1-5 days
24 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 8 ships same day
25 999-0006 Washer 3/16 flat zinc plated $0.99 12 ships same day
26 209-0625 Hose assembly $212.33 1 usually ships 1-5 days
27 209-0258 Washer $9.26 4 usually ships 17-28 days
28 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 4 ships same day
29 209-0104 Hose, heater to outlet $288.31 1 usually ships 17-28 days
30 209-6139 1/8 inch brass elbow $6.22 1 usually ships 17-28 days
31 209-6140 Complete heat exhange (OBSOLETE) $522.50 1 usually ships 17-28 days
32 209-0405 Hose clamp $5.39 1 usually ships 1-5 days
33 209-0621 Heat exchanger mount $10.85 1 usually ships 1-5 days
34 209-0620 Washer 1/4 nylon (black) $7.67 16 usually ships 1-5 days
35 209-6141 Heater hose pump $205.74 1 usually ships 17-28 days
36 272-5675 Nut M4-0.7 hex flange stainless steel $10.85 2 usually ships 1-5 days
N/S 209-6142 Switch plate overlay (OBSOLETE) Call for price 1 usually ships 17-28 days
