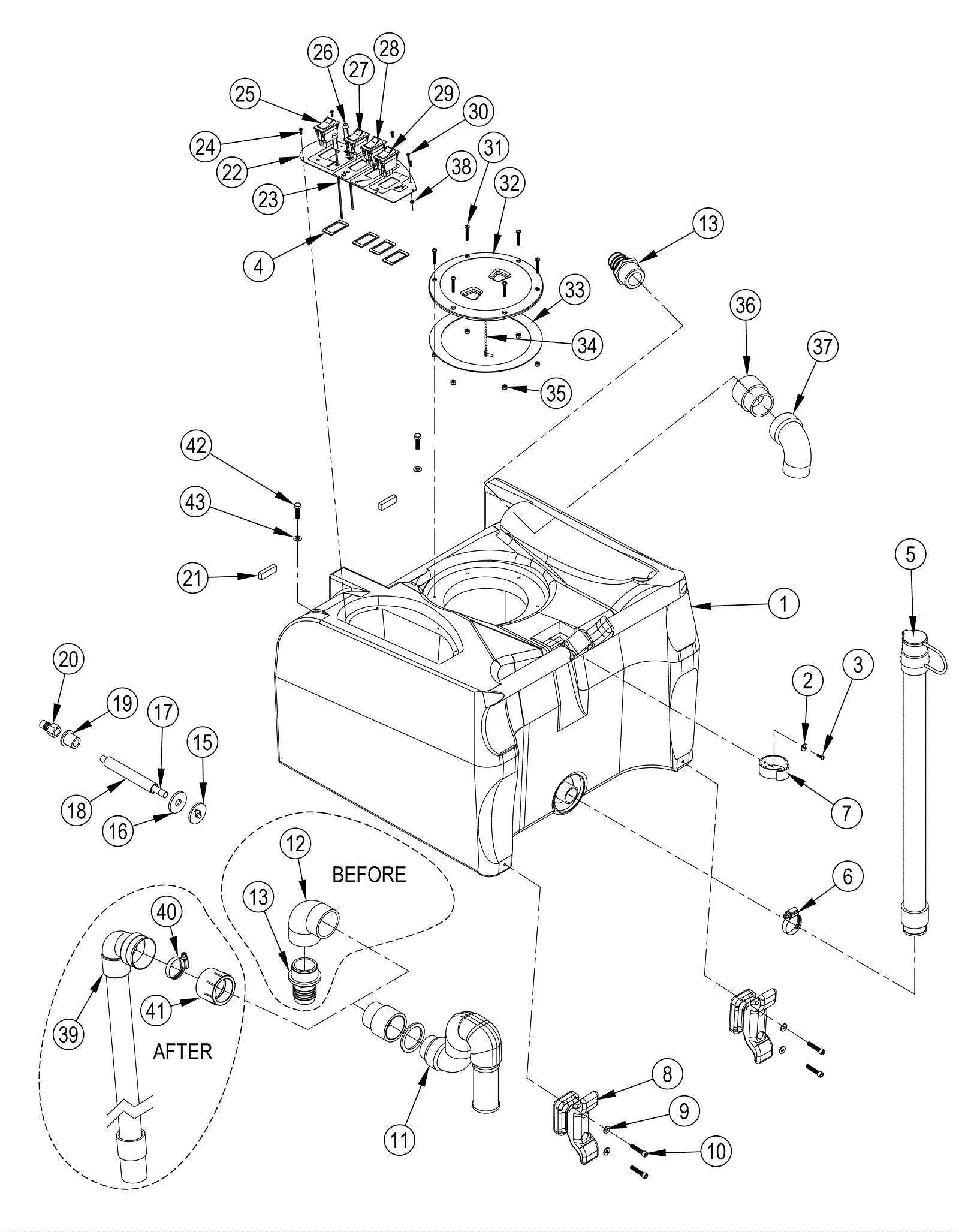

KING COBRA 310 Vacuum Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 472-7529 VACUUM TANK KC-310 $897.60 1 usually ships 17-28 days
2 209-0477 Backup washer for rive $5.09 1 ships same day
3 999-1216 Screw 6 x 1/2 flat head sheet metal stainless steel $1.10 1 ships same day
4 272-6593 Aluminum switch locking spacer $7.91 4 usually ships 17-28 days
5 209-0092 Dump hose $24.60 1 ships same day
6 270-8636 Hose clamp 3/4 x 1 3/4 SS $9.26 1 usually ships 17-28 days
7 209-0269 Cord strap (OBSOLETE) $8.11 1 usually ships 17-28 days
8 209-0430 Cord wrap $298.77 2 (cord wrap) usually ships 1-5 days
9 209-0430 Cord wrap $298.77 4 (washer) usually ships 1-5 days
10 209-0430 Cord wrap $298.77 4 (screw) usually ships 1-5 days
11 209-0089 Ball float and manifold assembly $643.69 1 usually ships 1-5 days
12 172-2473 PVC elbow 1-1/2 $10.85 1 usually ships 1-5 days
13 172-2481 Hose barb $15.48 2 usually ships 17-28 days
15 209-0415 Washer stainless steel $12.31 1 usually ships 1-5 days
16 209-6134 Washer 1/8 epdm rubber $7.67 1 usually ships 17-28 days
17 209-0086 Pipe $82.32 1 usually ships 17-28 days
18 209-6135 5/8 inch tubing (sold by the inch) $64.53 5 inch usually ships 17-28 days
19 209-0416 Spacer $8.26 1 usually ships 1-5 days
20 209-0336 Male quick disconnect $16.95 1 usually ships 17-28 days
21 272-5279 Teflon glide kit $133.87 2 (strips 1/2 w x 1-1/2 l x 3) usually ships 1-5 days
22 209-6136 Switchplate kc-310 (OBSOLETE) Call for price 1 usually ships 17-28 days
24 272-6814 Screw M4 x .375mm $12.31 5 usually ships 17-28 days
25 209-0717 Rocker switch $40.08 1 usually ships 17-28 days
26 172-3551 Light (green) $18.38 1 usually ships 17-28 days
27 209-0717 Rocker switch $40.08 1 usually ships 17-28 days
28 209-0717 Rocker switch $40.08 1 usually ships 17-28 days
29 209-0717 Rocker switch $40.08 1 usually ships 17-28 days
30 209-2116 SCREW 4-40 X 5/8 M.S. S/S PA $10.85 1 usually ships 17-28 days
31 472-4634 LID KIT-RECOVERY TANK $69.01 6 (screw) ships same day
32 472-4634 LID KIT-RECOVERY TANK $69.01 1 (lid) ships same day
33 472-4634 LID KIT-RECOVERY TANK $69.01 1 (gasket) ships same day
34 472-4634 LID KIT-RECOVERY TANK $69.01 1 (chain) ships same day
35 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 6 ships same day
36 209-0423 Adapter $10.85 1 usually ships 1-5 days
37 209-0364 Elbow $9.26 1 usually ships 1-5 days
38 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 1 ships same day
39 472-7896 HOSE-VACUUM-1.5 X 18 $35.60 1 usually ships 17-28 days
40 209-0657 Hose clamp $10.85 1 usually ships 1-5 days
41 270-8637 1 1/2 inch female adapter $9.26 1 usually ships 17-28 days
42 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 2 ships same day
43 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
KIT 1 209-0430 Cord wrap $298.77 1 ( includes 8-10) usually ships 1-5 days
KIT 2 272-5279 Teflon glide kit $133.87 1 ( includes 21) usually ships 1-5 days
KIT 3 472-4634 LID KIT-RECOVERY TANK $69.01 1 (includes 31-35) ships same day
N/S 999-1018 Screw 6-32 x 1/4 pan head phillips stainless steel $0.99 4 usually ships 1-5 days
