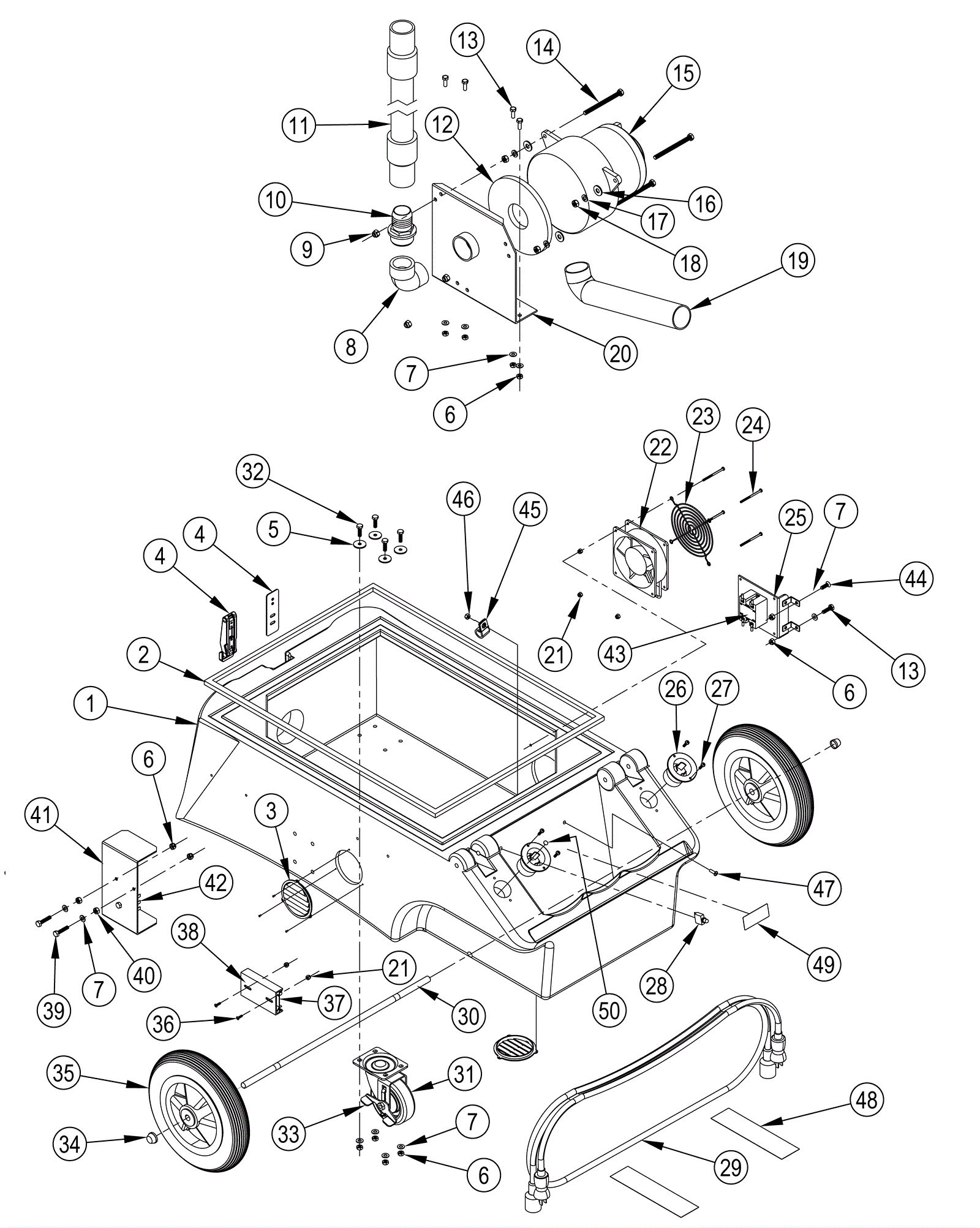

KING COBRA 310 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 209-6126 Drilled base KC-310 ( black) $829.40 1 usually ships 17-28 days
2 209-0083 Gasket $21.86 1 usually ships 17-28 days
3 209-0479 Louver (OBSOLETE) Call for price 3 usually ships 1-5 days
4a 172-2487 Black rubber latch with strike $111.99 1 (model KC-310) ships same day
4b 209-6131 Latch mount (OBSOLETE) $25.31 1 (model 56380559) usually ships 17-28 days
5 209-0608 Washer 1/4 x 1 flat zinc plated $9.26 8 usually ships 1-5 days
6 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 14 ships same day
7 999-0006 Washer 3/16 flat zinc plated $0.99 13 ships same day
8 209-0403 PVC elbow $12.87 1 usually ships 1-5 days
9 999-0278 Nut 5/16-18 nylon insert lock jam zinc plated $0.99 3 ships same day
10 172-2481 Hose barb $15.48 1 usually ships 17-28 days
11 209-0401 1 1/2 inch vacuum hose (clear) $19.98 1 usually ships 17-28 days
12 209-0284 Vacuum motor gasket $10.85 1 usually ships 17-28 days
13 209-0148 Bolt 1/4 inch x 3/4 inch $11.99 5 usually ships 1-5 days
14 209-6127 Bolt 5/16 x 4 fully threaded $6.71 1 usually ships 17-28 days
15 272-8045 Vac motor kit - 3 stage $1,118.25 1 usually ships 1-5 days
16 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
17 170-6686 Washer 5/16 lock $10.85 3 usually ships 17-28 days
18 999-0069 Nut 5/16-18 hex $0.99 3 ships same day
19 472-4649 VAC HOSE RUBBER 7.75 X 2.0 ID $18.38 1 usually ships 17-28 days
20 209-0400 Vacuum motor mount manifold $183.90 1 usually ships 1-5 days
21 270-8623 Nut nylon lock 6/32 Z.P $6.22 6 ships same day
22 172-2463 Fan kit $167.68 1 ( fan 4 120v) usually ships 1-5 days
23 172-2463 Fan kit $167.68 1 ( fan guard) usually ships 1-5 days
24 209-0159 Screw 6/32 inch x 2 inch-1/4 $9.26 4 usually ships 1-5 days
25 209-0453 Heat sink plate $18.38 2 usually ships 1-5 days
26 172-2451 Power cord receptacle $92.03 2 usually ships 17-28 days
27 209-0478 Screw 8 x 5/8 self tapping pan head $9.26 4 usually ships 1-5 days
28 209-0482 15amp circuit breaker $21.42 1 (model 56380559) usually ships 1-5 days
29 209-0097 12/3 extension cord 25 foot $164.55 2 ships same day
30 209-6130 Axle rod $18.26 1 usually ships 17-28 days
31 209-0480 Caster wheel (gray) $27.92 2 ships same day
32 209-6129 Bolt 1/4-20 x 7/8 fully threaded $6.22 8 usually ships 17-28 days
33 209-0455 Brake kit $8.26 2 usually ships 17-28 days
34 172-3527 Wheel kit $145.97 2 (axle cap) usually ships 1-5 days
35 172-3527 Wheel kit $145.97 2 (grey wheel) usually ships 1-5 days
36 209-0227 Screw 6-32 x 1/2 inch $0.99 2 usually ships 1-5 days
37 209-0101 PCB dual circuit sensor board (OBSOLETE) $320.16 1 usually ships 17-28 days
38 209-0100 PCB mount $70.50 1 usually ships 1-5 days
39 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 2 ships same day
40 170-6639 Nut 1/4-20 $13.17 2 usually ships 1-5 days
41 209-0108 Heat sink plate $77.12 1 usually ships 1-5 days
42 209-0412 Thermistor control (OBSOLETE) $625.50 1 usually ships 17-28 days
43 209-0322 25amp relay $110.79 1 usually ships 1-5 days
44 209-0138 Screw flathead 1/4 inch $6.22 1 usually ships 1-5 days
46 999-1269 Nut 10-32 nylon insert jam stainless steel $0.99 1 usually ships 12-18 days
47 209-0062 Screw 10-32 x 5/8 button head $10.85 1 usually ships 1-5 days
48 272-6871 Extension cord caution decal $7.67 2 usually ships 1-5 days
49 209-6083 Danger decal $9.26 1 usually ships 1-5 days
50 209-0382 Heat designation power decal $11.19 1 usually ships 1-5 days
K1 172-2463 Fan kit $167.68 1 (includes 22 and 23) usually ships 1-5 days
K2 172-3527 Wheel kit $145.97 2 (includes 34 and 35) usually ships 1-5 days
N/S 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
N/S 209-2101 WASHER FLAT THIN 10 STAIN (OBSOLETE) $10.85 2 usually ships 17-28 days
N/S 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 2 ships same day
N/S 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 2 ships same day
N/S 999-0976 Bolt 1/4-20 x 1 3/4 hex cap stainless steel $1.61 1 ships same day
N/S 999-0006 Washer 3/16 flat zinc plated $0.99 3 ships same day
N/S 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
