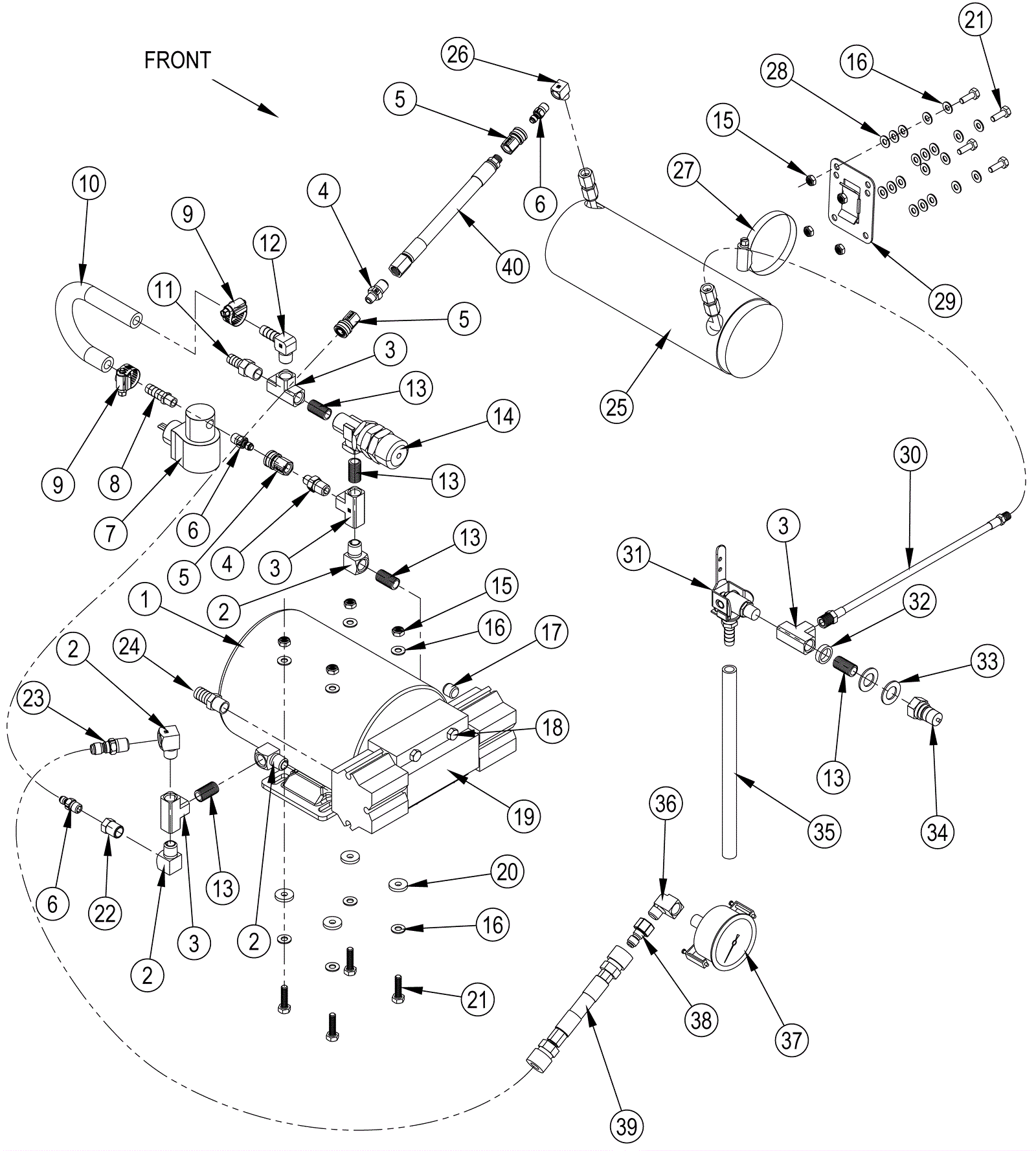

SOLUS 310 Plumbing Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-2452 1/3HP motor for 300 PSI pump $578.72 1 usually ships 16-41 days
2 209-0609 90 degree elbow $10.85 4 usually ships 16-41 days
3a 209-0610 1/4 inch tee brass $12.31 4 (before September 2011) usually ships 16-41 days
3b 209-0610 1/4 inch tee brass $12.31 1 (after September 2011) usually ships 16-41 days
4 172-1342 Male reducer nipple $12.31 2 usually ships 16-41 days
5 209-0468 Brass quick disconnect socket $15.48 3 usually ships 16-41 days
6 209-0099 Male quick disconnect $10.85 2 usually ships 1-5 days
7 209-0611 Solenoid $383.41 1 usually ships 1-5 days
8 209-0460 Hose barb 3/8 x 1/8 pt $9.26 1 usually ships 1-5 days
9 209-0604 Hose clamp $10.85 2 ships same day
10 209-0076 24 inch pump inlet hose (sold by the inch) (OBSOLETE) Call for price 8in usually ships 16-41 days
11 209-0157 Hose barb with male 1/4 pipe $5.50 1 usually ships 1-5 days
12 209-0627 90 degree hose barb 3/8 inch brass $11.80 1 usually ships 1-5 days
13 209-0124 Nipple $11.57 4 usually ships 16-41 days
14 209-0613 Bypass valve $129.05 1 usually ships 16-41 days
15 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 8 ships same day
16 999-0006 Washer 3/16 flat zinc plated $0.99 12 ships same day
17 209-0614 1/4 inch plug $9.26 1 usually ships 16-41 days
18 209-0615 Screw 1/4-20 x 2 cap $24.60 4 usually ships 1-5 days
19a 209-0616 Pump $674.08 1 usually ships 16-41 days
19b 209-0261 Pump kit $160.86 1 usually ships 16-41 days
19c 209-0616 Pump $674.08 1 usually ships 16-41 days
20 209-0258 Washer $9.26 4 usually ships 16-41 days
21 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 8 ships same day
22 170-5417 Bushing $12.31 1 usually ships 1-5 days
23 209-0618 Quick connect plug $10.85 1 usually ships 16-41 days
24 209-0449 Hose barb $12.31 1 usually ships 16-41 days
25 209-0335 120v complete heat exchanger $704.00 1 usually ships 1-5 days
26 209-0619 90 degree elbow 1/8 x 1/8 inch $10.85 1 usually ships 1-5 days
27 209-0405 Hose clamp $5.39 1 usually ships 1-5 days
28 209-0620 Washer 1/4 nylon (black) $7.67 16 usually ships 1-5 days
29 209-0621 Heat exchanger mount $10.85 1 usually ships 1-5 days
30 209-0622 Braided hose $46.00 1 usually ships 16-41 days
31 209-0371 Power prime valve $95.66 1 usually ships 16-41 days
32 209-0125 Fiber bushing $13.76 1 usually ships 16-41 days
33 209-0628 Washer $10.85 3 usually ships 16-41 days
34 209-0336 Male quick disconnect $16.95 1 usually ships 16-41 days
35 172-9081 Hose $10.85 1 usually ships 1-5 days
36 209-0623 90 degree elbow 1/4 inch brass $19.98 1 usually ships 16-41 days
37 209-0380 Pressure gauge $64.53 1 usually ships 16-41 days
38 209-0624 1/4 inch quick connect brass $7.85 1 ships same day
39 209-0625 Hose assembly $212.33 1 (pump to gauge) usually ships 1-5 days
40 209-0626 Hose $78.58 1 usually ships 16-41 days
