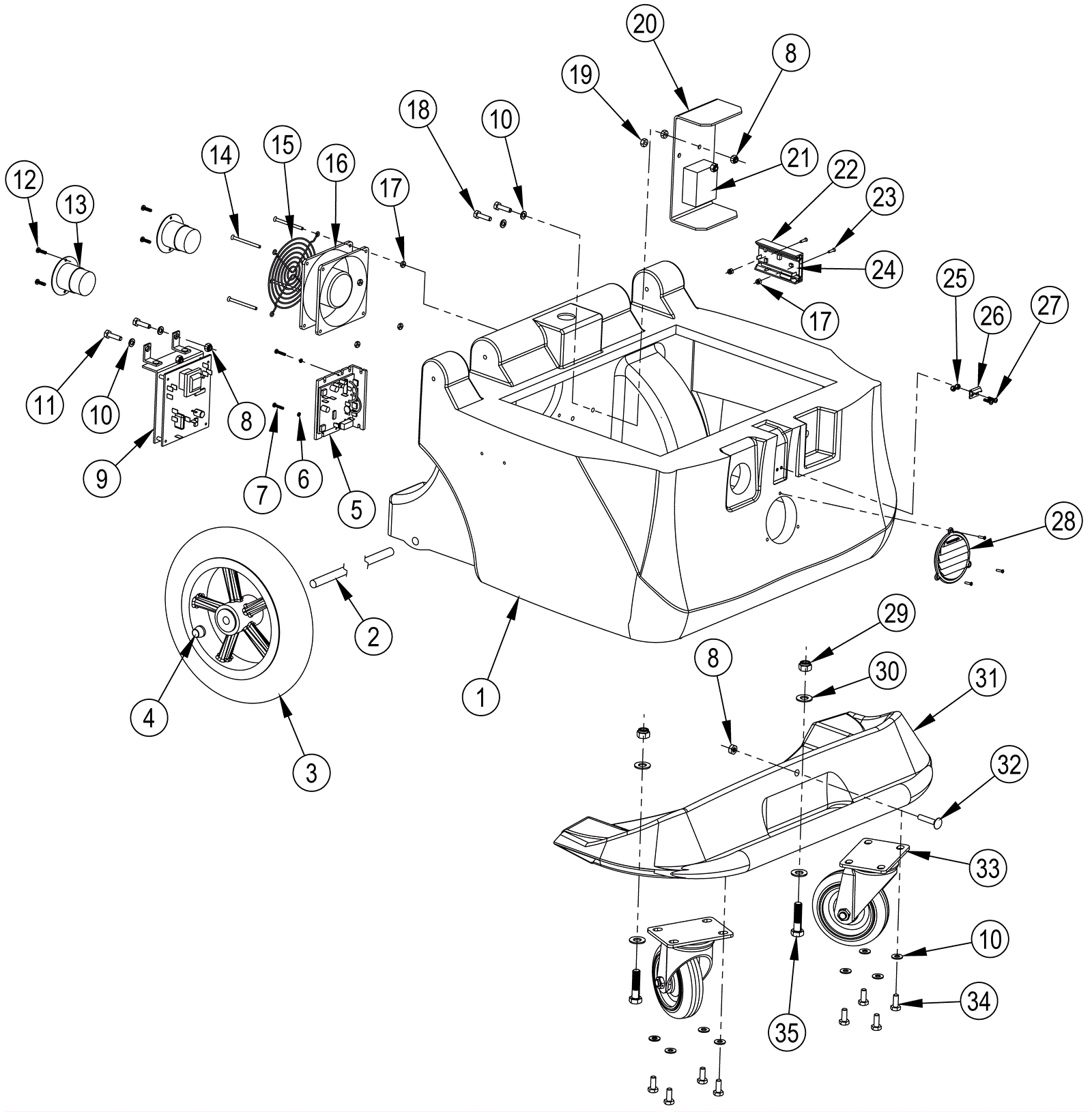

SOLUS 310 Base Assembly

#PartDescriptionPriceReqNotesAvailability
N/S 209-0481 Terminal block $42.98 1 (model 56380568) usually ships 1-5 days
1 209-0475 Base housing (OBSOLETE) $58.85 1 usually ships 1-5 days
2 209-0476 Axle rod $40.15 1 usually ships 1-5 days
3 209-0357 12 inch wheel $58.62 2 usually ships 16-41 days
4 170-5410 Axle cap (OBSOLETE) $10.85 2 usually ships 16-41 days
5 209-0404 Pump motor control board $337.39 1 usually ships 16-41 days
6 209-0477 Backup washer for rive $5.09 2 ships same day
7 999-0365 Screw 6-32 x 5/8 pan head phillips zinc plated $0.99 2 ships same day
8 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 5 ships same day
9 209-0012 Vacuum control board $605.06 1 usually ships 16-41 days
11 209-0148 Bolt 1/4 inch x 3/4 inch $11.99 2 usually ships 1-5 days
12 209-0478 Screw 8 x 5/8 self tapping pan head $9.26 4 usually ships 1-5 days
13 172-2451 Power cord receptacle $92.03 2 usually ships 16-41 days
14 209-0159 Screw 6/32 inch x 2 inch-1/4 $9.26 4 usually ships 1-5 days
15 172-2463 Fan kit $167.68 1 (fan guard) usually ships 1-5 days
16 172-2463 Fan kit $167.68 1 (fan) usually ships 1-5 days
17 270-8623 Nut nylon lock 6/32 Z.P $6.22 6 ships same day
18 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 2 ships same day
19 170-6639 Nut 1/4-20 $13.17 2 usually ships 1-5 days
20 209-0108 Heat sink plate $77.12 1 usually ships 1-5 days
21a 209-0412 Thermistor control (OBSOLETE) $625.50 1 (includes 21b-21d) usually ships 16-41 days
21b 999-0976 Bolt 1/4-20 x 1 3/4 hex cap stainless steel $1.61 1 ships same day
21d 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
22 209-0100 PCB mount $70.50 1 usually ships 1-5 days
23 209-0227 Screw 6-32 x 1/2 inch $0.99 2 usually ships 1-5 days
24 209-0101 PCB dual circuit sensor board (OBSOLETE) $320.16 1 usually ships 16-41 days
25 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 2 ships same day
26 209-0140 Latch strike $15.48 1 usually ships 16-41 days
27 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
28 209-0479 Louver (OBSOLETE) Call for price 1 usually ships 1-5 days
29 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
30 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
31 209-0458 Caster plate $387.70 1 usually ships 16-41 days
32 999-1443 Bolt 1/4-20 x 1 1/4 carriage stainless steel $1.03 1 ships same day
33 209-0480 Caster wheel (gray) $27.92 2 ships same day
34 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 8 ships same day
35 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 2 ships same day
N/S 209-0482 15amp circuit breaker $21.42 1 (model 56380568) usually ships 1-5 days
N/S 209-0097 12/3 extension cord 25 foot $181.01 2 ships same day
