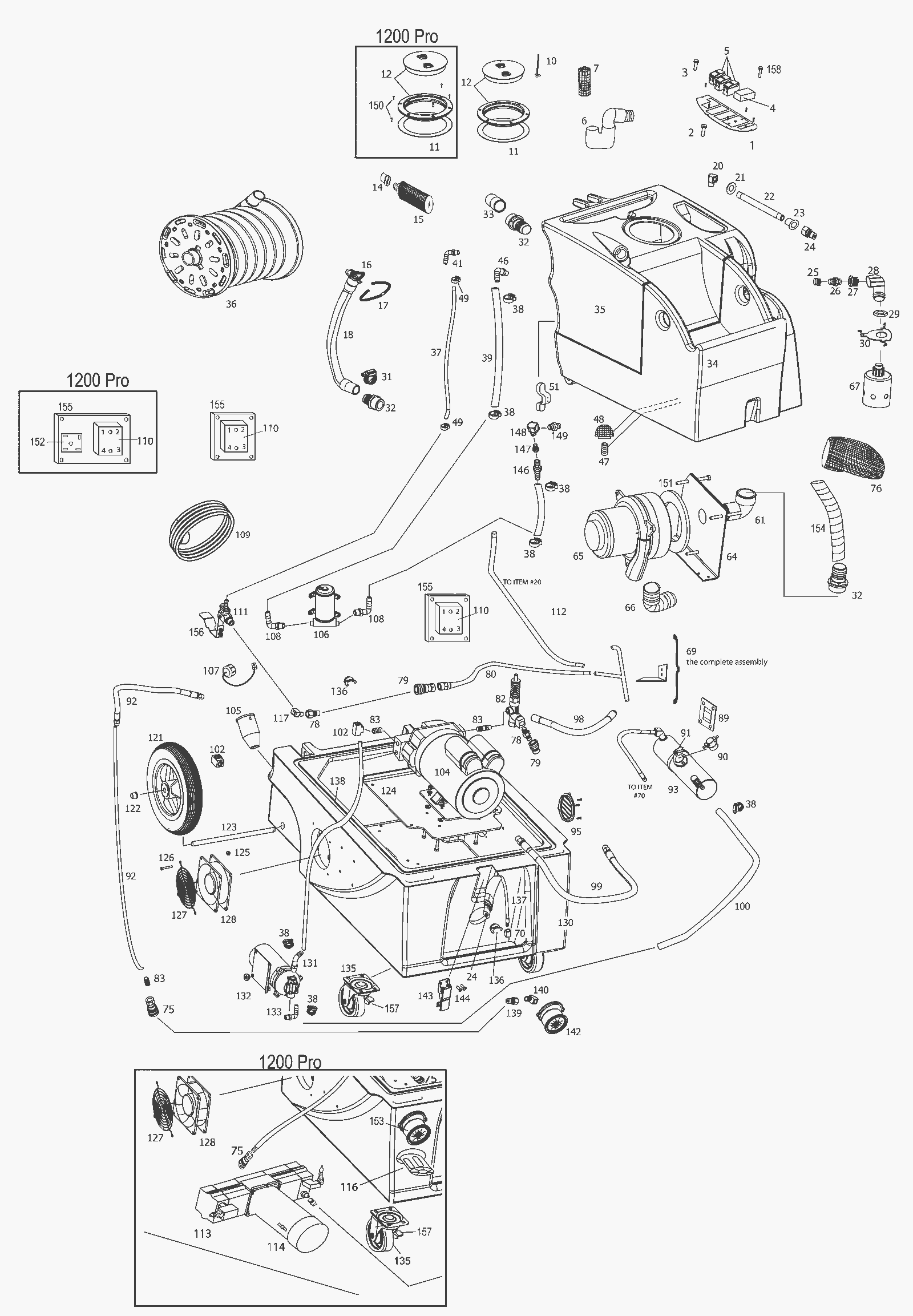

Entire Assembly

#PartDescription ReqNotesAvailability
1 209-0413 Switch plate (OBSOLETE)
2 172-3551 Light (green)
3 209-0640 Light (red)
4 181-1079 Rocker switch
5 209-0094 Switch (OBSOLETE)
6 209-0089 Ball float and manifold assembly
7 209-0329 Ball float
10 172-2474 8 inch chain
11 209-0088 Gasket lid
14 209-0141 PVC reducer
15 209-0414 Filter (OBSOLETE)
17 209-0269 Cord strap (OBSOLETE)
18 209-0092 Dump hose
20 209-0609 90 degree elbow
21 209-0415 Washer stainless steel
22 209-0086 Pipe
23 209-0416 Spacer
24 209-0336 Male quick disconnect
25 209-0417 Hose connector
26 209-0418 Male adapter
27 209-0419 Bushing
28 209-0420 90 degree elbow
29 209-0421 Locknut
30 209-0422 Mounting bracket
31 270-8636 Hose clamp 3/4 x 1 3/4 SS
32 172-2481 Hose barb
33 209-0423 Adapter
34a 209-0291 Holding tank (white) (OBSOLETE) (1200)
34b 209-0424 Holding tank (white) (OBSOLETE) (1200 PRO)
35a 209-0294 Vacuum tank (white) (OBSOLETE) (1200)
35b 209-0425 Recovery tank (white) (1200 PRO)
36a 209-0267 Hose reel assembly
36b 209-0368 Female quick disconnect 1
37 209-0434 Inlet hose
38 209-0604 Hose clamp
39 N/A Not available (hose) (1200)
41 209-0427 90 degree elbow
46 209-0428 Hose barb
47 209-0603 Nipple 1/2 NPT
48 209-0150 Filter
49 209-0429 Clamp
51a 209-0093 Cord wrap (1200)
51b 209-0430 Cord wrap (1200 PRO)
61 209-0403 PVC elbow
64 209-0400 Vacuum motor mount manifold
65 272-8045 Vac motor kit - 3 stage
66 209-0079 Exhaust hose (sold by the inch)
67 209-0432 Shut off valve
69 209-0433 Hose assembly
75 272-6812 1/4 inch quick connect
78 209-0624 1/4 inch quick connect brass
79 272-6812 1/4 inch quick connect
80 209-0434 Inlet hose
82a 472-7811 UNLOADER VALVE 1200PSI KC (1200)
82b 209-0371 Power prime valve (1200 PRO)
83 209-0124 Nipple
89 209-0621 Heat exchanger mount
90 209-0333 Bi-metallic heat repair kit
91 209-0436 Hose clamp
92 209-0339 Hose assembly
93a 209-0437 Heat exhanger assembly (1200)
93b 209-0438 Heat exhanger assembly (1200 PRO)
94 209-0030 Syphon hose (OBSOLETE) (1200 PRO)
95 372-3715 Shutter
98a N/A Not available (hose) (1200)
98b 209-0439 Hose assembly (OBSOLETE) (1200 PRO)
99a 472-7701 HOSE ASSY-PULSE 1600 PSI 32 (OBSOLETE) (1200)
99b 209-0076 24 inch pump inlet hose (sold by the inch) (OBSOLETE) (1200 PRO)
100a 209-0076 24 inch pump inlet hose (sold by the inch) (OBSOLETE) (1200)
100b 209-0370 Hose assembly (1200 PRO)
102a N/A Not available (tee brass fitting) (1200)
102b N/A Not available (tee brass fitting) (1200 PRO)
103 209-0441 Hose cap with chain
104 209-0442 Pump and motor assembly
105 172-2451 Power cord receptacle
106 209-0277 120V dump pump
108 209-0443 Hose barb
110 209-0322 25amp relay
111 209-0371 Power prime valve
112 209-0444 Hose assembly (OBSOLETE) (1200)
113 209-0323 500PSI pump w/o motor (1200 PRO)
114 209-0324 Motor for 500PSI pump (1200 PRO)
116 209-0275 500PSI unloader (1200 PRO)
122 170-5410 Axle cap (OBSOLETE)
123 209-6110 Axle 1/2 x 21 3/4 inch
124 N/A Not available (pump mounting plate)
125 270-8623 Nut nylon lock 6/32 Z.P (1200)
126 209-0159 Screw 6/32 inch x 2 inch-1/4 (1200)
127 209-0075 Guard fan
128 209-0074 Cooling fan
131 209-0058 Hose barb elbow 3/8 inch x 3/8 inch (1200)
133 N/A Not available (90 degree elbow)
135 209-0480 Caster wheel (gray)
136 209-0446 Hose holder clip
137 209-0447 Hose assembly
138 209-0448 Gasket
139 209-0624 1/4 inch quick connect brass
140 209-0609 90 degree elbow
142 209-0317 Pressure gauge (OBSOLETE)
143 172-2487 Black rubber latch with strike
144 N/A Not available (screw) (1200)
146 209-0449 Hose barb
147 209-0450 Bushing
148 N/A Not available (90 degree brass elbow)
149 209-0451 Adapter
150 209-0255 Screw 8-32 x 1 1/2 (1200 PRO)
151 209-0284 Vacuum motor gasket (1200 PRO)
152 209-0452 15amp bridge rectifier (OBSOLETE) (1200 PRO)
153 209-0380 Pressure gauge (1200 PRO)
154 209-0401 1 1/2 inch vacuum hose
155 209-0453 Heat sink plate
156 209-0454 Power prime pedal
157 209-0455 Brake kit
158 209-0367 Green light
N/S 209-0300 Evolution carpet wand
N/S 209-0097 12/3 extension cord 25 foot 2 (1200 PRO)
N/S 209-0259 Solution hose assembly with swivel (OBSOLETE)
