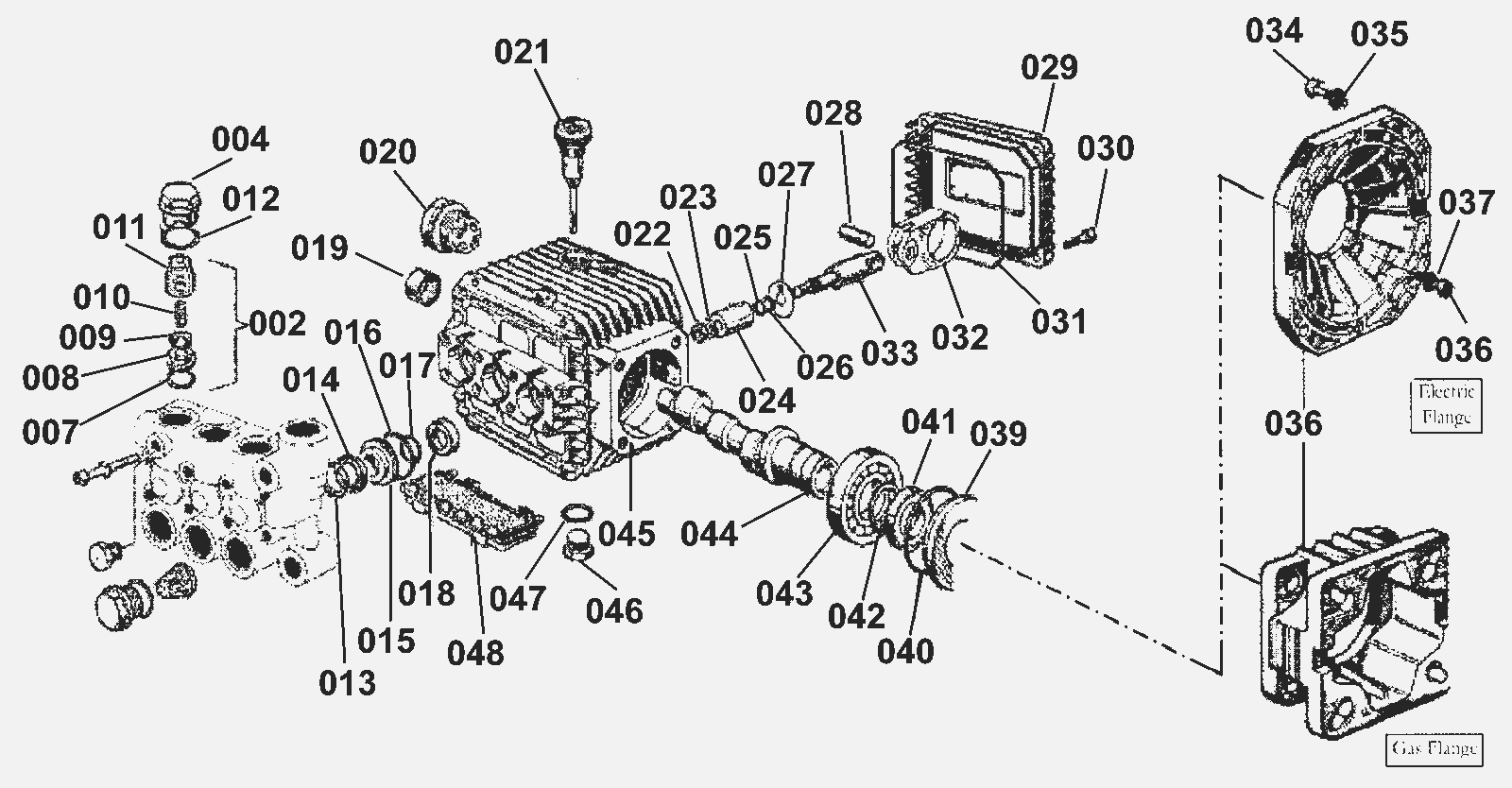

Pump Assembly

#PartDescription ReqNotesAvailability
001 208-0071 Aluminum nickle manifold 1
002 N/A Not available 6 Valve assembly available in kit 208-0088
003 208-0072 1/4 Inch plug 1
004 208-0073 Valve plug 6
005 208-0074 Washer 8
006 208-0075 Head bolt 8
007 N/A Not available 6 O-ring available in kit 208-0088
008 N/A Not available 6 Valve seat available in kit 208-0088
009 N/A Not available 6 Valve poppet available in kit 208-0088
010 N/A Not available 6 Valve spring available in kit 208-0088
011 N/A Not available 6 Valve cage available in kit 208-0088
012 208-0076 O-ring 6
013 N/A Not available 3 15mm Head ring available in kit 208-0097
014 N/A Not available 3 15mm HP packing available in kit 208-0097
015 208-0077 15mm Retainer 3
016 N/A Not available 3 O-ring available in kit 208-0097
017 N/A Not available 3 LP Seal available in kit 208-0097
018 N/A Not available 3 Oil Seal available in kit 208-0089
019 N/A Not available 1 Needle bearing
020 208-0078 Sight glass 1
021 208-0079 Dipstick 1
022 208-0080 Nut 3
023 208-0081 Copper washer 3
024 208-0082 15mm Plunger 3
025 208-0083 O-ring 3
026 208-0084 Anti-ext ring 3
027 208-0085 Flinger washer 3
028 N/A Not available 3
029 208-0086 Back cover 1
030 208-0087 Screw 4
031 N/A Not available 1 O-ring available in kit 208-0089
032 N/A Not available 3 Connecting rod
033 N/A Not available 3 Piston guide
034 N/A Not available 4 Screw
035 N/A Not available 4 Washer
036 208-0087 Screw 4
037 208-0074 Washer 4
038a 208-0092 Gas flange 1
038b 208-0093 Electric flange 1
039 N/A Not available 1 Spacer
040 N/A Not available 1 O-ring avalable in kit 208-0089
041 N/A Not available 1 Seal avalable in kit 208-0089
042 N/A Not available 1 Clip
043 N/A Not available 1 Bearing
044 N/A Not available 1 Crandshaft
045 N/A Not available 1 Crankcase
046 208-0090 Plug 3
047 208-0091 O-ring 1 Avalable in kit 208-0089
048 208-0094 Shield 1
