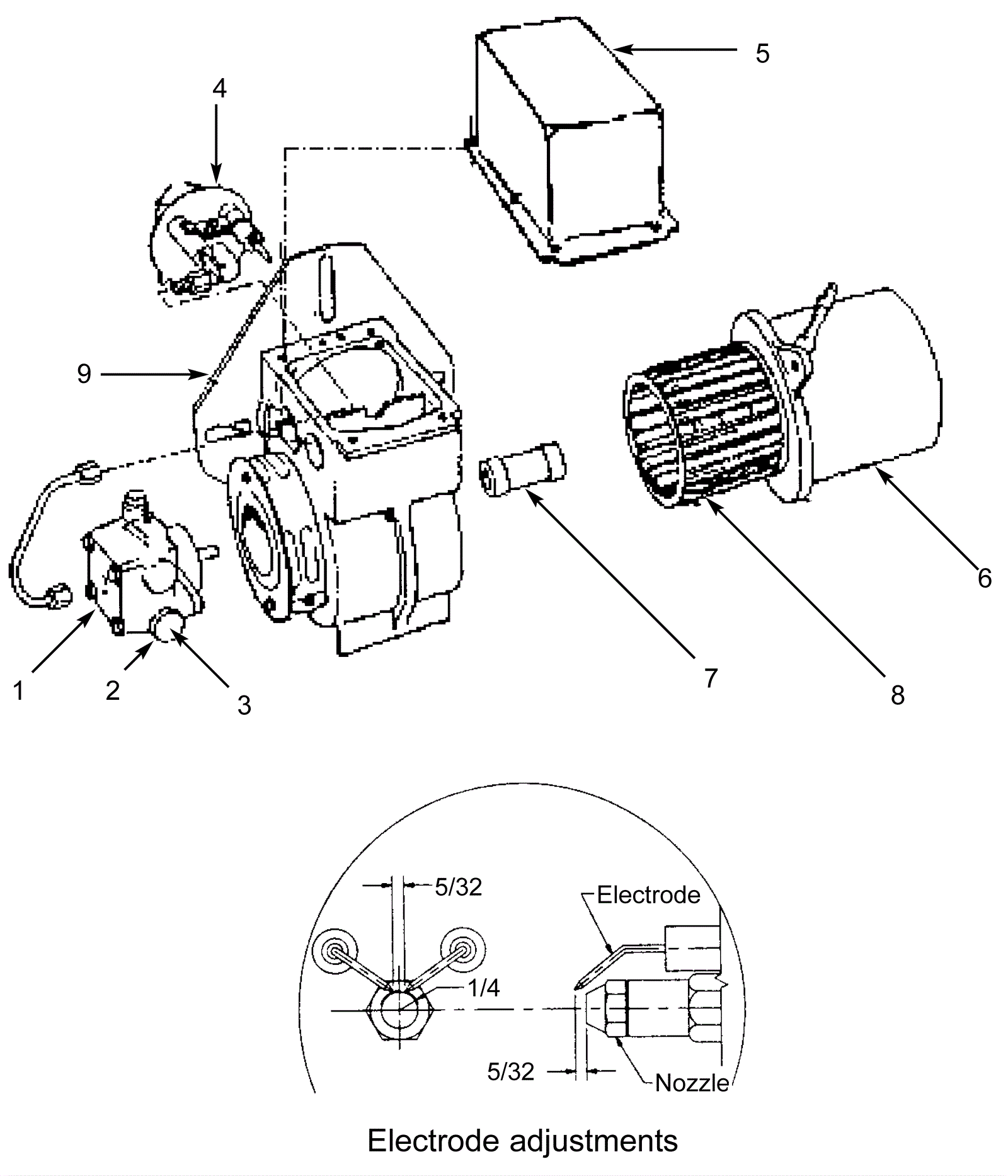

Burner Breakdown Assembly

#PartDescription ReqNotesAvailability
1 208-0216 Fuel pump with valve
2 208-0217 Valve coil
3 208-0218 Valve stem
4 208-0044 Electrode set
5 208-0029 Igniter
6 208-0021 Motor
7 208-0219 Coupler
8 208-0220 Blower wheel
9 208-0221 Gasket
N/S 208-0222 Strainer kit
N/S 208-0027 Vacuum switch (OBSOLETE)
N/S 208-0037 Burner relay
