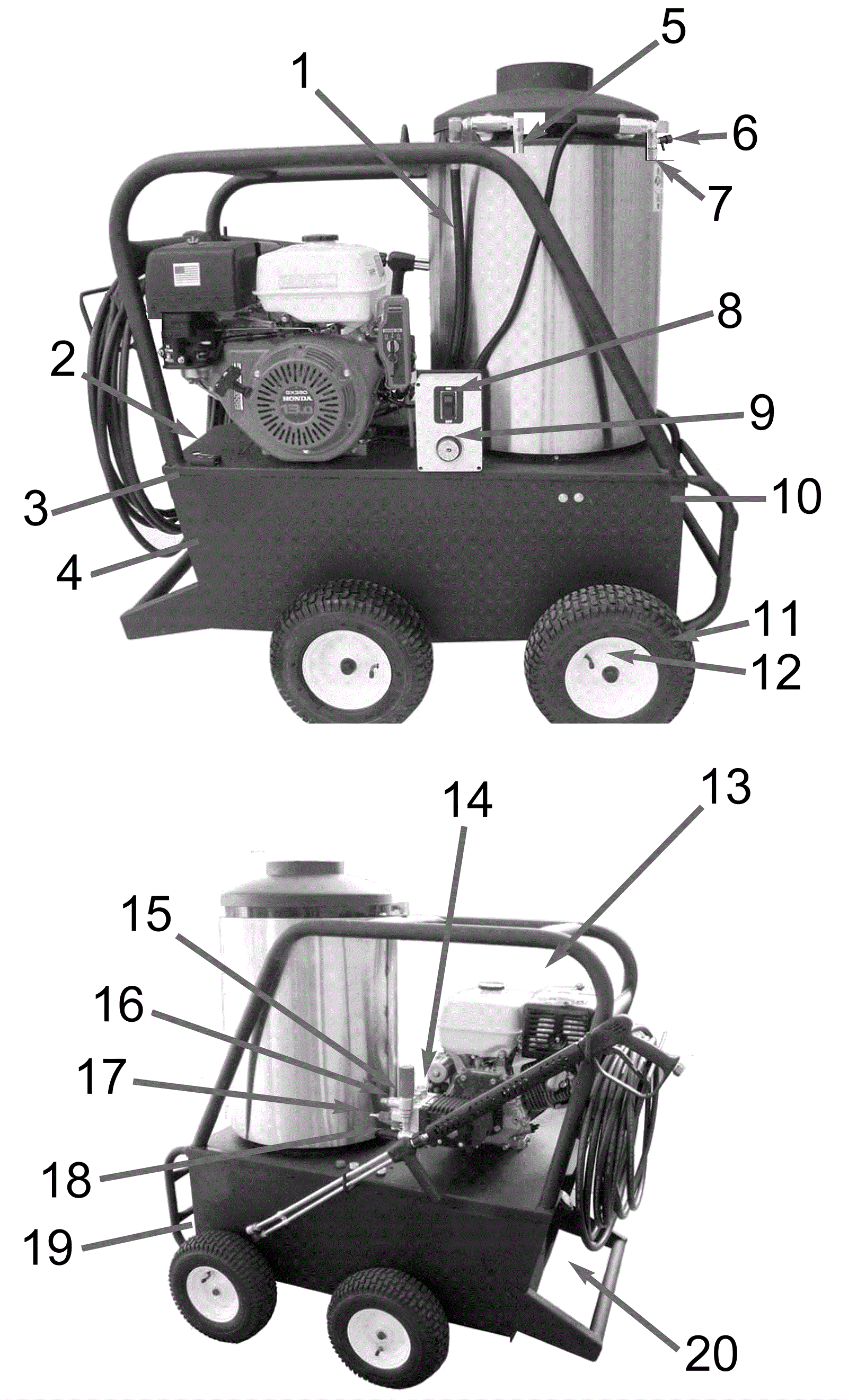

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
208-0152
|
10 inch jumper hose |
|
|
|
2 |
208-0132
|
12V hour meter |
|
|
|
3 |
208-0027
|
Vacuum switch (OBSOLETE) |
|
|
|
4 |
208-0037
|
Burner relay |
|
|
|
5 |
208-0054
|
Pressure valve |
|
|
|
6 |
208-0155
|
Chemical injector |
|
|
|
7 |
208-0154
|
Discharge coupler |
|
|
|
8 |
208-0214
|
Burner switch |
|
|
|
9 |
208-0010
|
Thermostat |
|
|
|
10 |
208-0031
|
DC fuel pump burner with valve |
|
|
|
11 |
208-0016
|
Wheel (white) |
|
|
|
12 |
208-0015
|
Wheel cap |
|
|
|
13 |
208-0045
|
16 HP Vanguard engine |
|
|
|
14 |
208-0168
|
Thermal valve |
|
|
|
15 |
208-0009
|
Pressure gauge casing |
|
|
|
16 |
208-0013
|
Flow switch |
|
|
|
17 |
208-0215
|
Unloader |
|
|
|
18 |
208-0006
|
Garden hose inlet |
|
|
|
19 |
208-0047
|
Fuel filter |
|
|
|
20 |
208-0176
|
8 gallon burner diesel tank |
|
|
|
