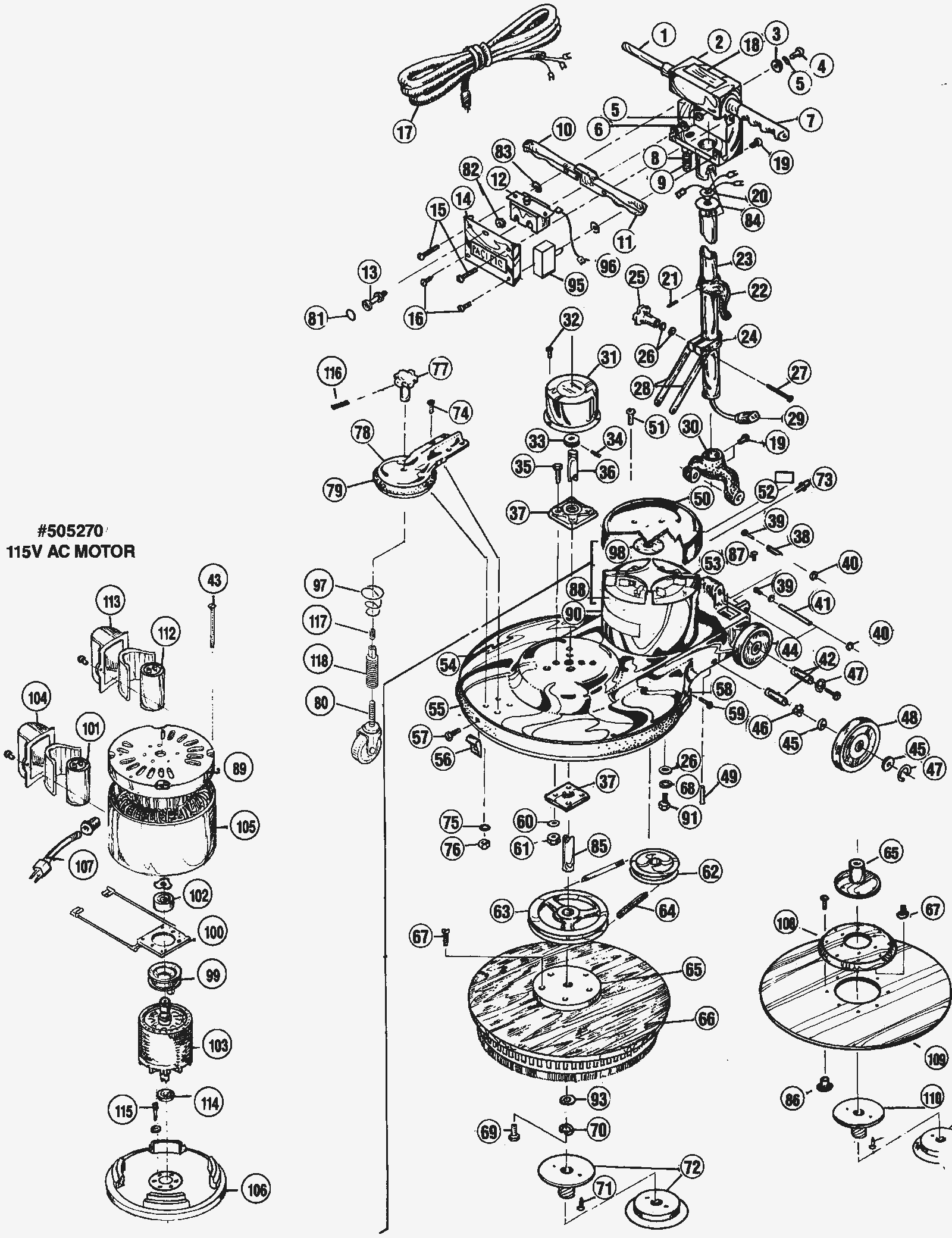

Entire Assembly

#PartDescription ReqNotesAvailability
1 206-5022 Handle nipple (OBSOLETE) 2
2a 206-5053 Switch box (OBSOLETE) 1
2b 206-0383 Switch box-DC with breaker (OBSOLETE) 1
2c 206-0438 Switch box without breaker-painted (OBSOLETE) 1
2d 206-0433 Switch box with breaker-painted (OBSOLETE) 1
3 206-5025 Bumper 1
4 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated 1
5 206-5055 Washer flat (OBSOLETE) 2
6 206-5019 Nut 10-32 elastic stop 1
7 206-0384 Handle grip (OBSOLETE) 2
8 206-5029 Strain relief brass clamp (OBSOLETE) 1
9 206-5028 Strain relief assembly (OBSOLETE) 1
10 206-5004 Right switch lever (OBSOLETE) 1
11 206-5018 Left switch lever (OBSOLETE) 1
12 206-5002 Switch assembly (OBSOLETE) 1
13 206-5014 Interlock switch assembly (OBSOLETE) 1
14a 206-0434 Switch plate cover-polished (OBSOLETE) 1
14b 206-0435 Switch plate cover-painted (OBSOLETE) 1
15 206-0385 Screw 10-32 x 1 3/4 oval head (OBSOLETE) 2
16 999-0074 Screw 10-32 x 1/2 round head slotted zinc plated 2
17 991-5005 14/3 replacement power cord 50 foot (yellow) 1
18 206-0389 Warning label (OBSOLETE) 1
19 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 3
20 206-5021 Strain relief bushing 1
21 206-5038 Screw 1/4-20 x 3/8 set 1
22 206-5032 Cord hook (OBSOLETE) 1
23 206-0390 Handle tube (OBSOLETE) 1
24 206-5035 Handle clamp (OBSOLETE) 1
25 206-5039 Knob 1
26 999-0032 Washer 3/8 USS flat plain finish 2
27 999-1607 Bolt 5/16-18 x 2 1/2 carriage stainless steel 1
28 206-0391 Brace 2
29a 206-0436 Handle cord assembly AC model (OBSOLETE) 1 (AC models)
29b 206-0392 Handle cord assembly (OBSOLETE) 1 (DC models)
30 206-5041 Handle yoke (OBSOLETE) 1
31 206-5209 Dust cover (OBSOLETE) 1
32 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated 3
33 206-0394 Upper shaft collar 1
34 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish 1
35 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated 4
36 206-0395 Drive shaft 1
37 206-0396 Bearing block 2
38 206-0397 Yoke brace (OBSOLETE) 1
39 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 2
40 206-5054 Yoke rod snap ring 2
41 206-5044 Handle pivot shaft 1
42 206-6411 Wheel axle 2
43 206-0437 Bolt motor thru (OBSOLETE) 4
44 206-5065 Wheel 4 inch (OBSOLETE) 2
45 206-5049 Fiber washer 12
46 206-5048 Wave washer 8
47 206-5064 Snap ring (OBSOLETE) 4
48 206-5001 5 inch wheel 2
49 999-1478 Screw 10-32 x 3/8 socket set stainless steel 1
50a 206-5089 Drip cover (OBSOLETE) 1 (AC models)
50b 206-0439 Motor cover bumper AC (OBSOLETE) 1 (AC models)
50c N/A Not available 1 (DC models)
50d 206-0399 Motor cover 1500 (OBSOLETE) 1 (DC models)
51a 999-0481 Screw 12-24 x 5/8 pan head slotted zinc plated 3
51b 206-0233 Screw 8-32x1/2 3
52 206-0401 Brush indicator label 1
53a N/A Not available 1 (AC models)
53b 206-5008 DC motor 115v 1 (DC models)
54a 206-0442 Base casting polished AC models (OBSOLETE) 1 (AC models)
54b 206-0443 Base casting polished DC models (OBSOLETE) 1 (DC models)
54c 206-0444 Base casting painted DC models (OBSOLETE) 1 (DC models)
54d 206-0445 Base casting painted AC models (OBSOLETE) 1 (AC models)
55 206-5005 Base bumper 1
56 206-5006 Bumper clips 3
57 206-5059 Screw 10-32 x 1/4 flat head phillips 3
59 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated 2
60 999-0032 Washer 3/8 USS flat plain finish 4
61 999-0170 Nut 3/8-16 hex plain finish 4
62a 206-0404 Pulley motor 1 (1040AC, 1500DC, and 2000DC models)
62b 206-0446 Pulley motor 1500AC (OBSOLETE) 1 (1500AC)
62c 206-0447 Pulley motor 1280AC (OBSOLETE) 1 (1280AC)
63a N/A Not available 1 (AC models)
63b 206-0448 Pulley pad driver 2000DC (OBSOLETE) 1 (2000DC)
63c 206-0406 Pulley pad driver 1 (1500DC)
64a 206-0407 Belt 1500 1 (1500AC and 1500DC)
64b N/A Not available 1 (1280AC)
64c 206-0408 Belt 800-1500 1 (1040AC)
64d 206-0450 Belt 2000DC (OBSOLETE) 1 (2000DC)
65a 206-0451 Flange 1040, 1280, 1500AC. 2000DC (OBSOLETE) 1 (1040AC, 1280AC, 1500AC, and 2000DC models)
65b 206-0452 Flange 1500DC (OBSOLETE) 1 (1500DC)
65c 206-0409 Flange flex driver 1 (1500DCP)
66 996-1216 Pad driver (OBSOLETE) 1
67a 206-0454 Screw 10 x 1 1/2 wood (OBSOLETE) 6
67b 206-0455 Screw 10 x 1 1/4 wood (OBSOLETE) 6
67c 999-0348 Screw 1/4-20 x 1 flat head phillips zinc plated 6
68 206-0410 Washer 3/8 lock 4
69 206-0411 Bolt 5/16-18x3/4 allen 1
70 206-0412 Washer 5/16 lock (OBSOLETE) 1
71 206-0456 Screw 10 x 3/4 wood (OBSOLETE) 3
72 206-0812 Pad holder assembly 1
73 206-0432 Light indicator brush wear 1
74 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated 4
75 999-0060 Washer 1/4 split lock plain finish 4
76 999-0190 Nut 1/4-20 hex plain finish 4
77 206-3021 Caster knob adjuster (OBSOLETE) 1
78 206-3022 Caster housing (OBSOLETE) 1
79 206-3023 Bumper (OBSOLETE) 1
80 206-3024 Caster (OBSOLETE) 1
81 206-0417 Sw. int. label 1
82 999-0143 Nut 3/8-24 hex plain finish 1
83 206-5016 Rubber washer (OBSOLETE) 2
84 206-5020 Handle tube washer 1
85 206-0418 Key 1
86 206-0419 T-nut and screws kit (8ea per pkg) (OBSOLETE) 1
87 206-0420 Screw 2x1/4 drive (OBSOLETE) 2
88 206-0421 Mylar motor label (OBSOLETE) 1
89 206-0457 End bell motor top (OBSOLETE) 1
90 206-0458 1500DC label (OBSOLETE) 1
91 206-0423 Screw 3/8-16x1 hex head 4
93 999-0024 Washer 5/16 flat stainless steel 1
95 206-5003 18amp circuit breaker 1
96 206-0424 Lead assembly circuit breaker (OBSOLETE) 1
97 206-3025 Spring 1
98 206-5043 Felt washer 1
99 206-0459 Rotary switch 1
100 N/A Not available 1
101 206-0461 Capacitor-start (OBSOLETE) 4
102 206-0462 Motor top bearing 1
103 206-0463 Rotor assembly (OBSOLETE) 1
104 206-0464 Capacitor cover (OBSOLETE) 1
105 206-0465 Field assembly (OBSOLETE) 1
106 206-0466 End bell motor (OBSOLETE) 1
107 206-0467 Motor cord (OBSOLETE) 1
108 206-0431 Flex pad assembly 19 diameter 1
109 206-0431 Flex pad assembly 19 diameter 1
110 306-0002 Center lok base (OBSOLETE) 1
112 206-0470 Capacitor-run (OBSOLETE) 1
113 206-0471 Cover-run capacitor (OBSOLETE) 1
114 206-0235 Bearing (OBSOLETE) 1
115 206-0239 Screw (OBSOLETE) 6
116 206-5099 Screw 8-32 1/4 allen set (OBSOLETE) 1
117 206-3026 Screw 1/4 - 20 x 3/8 allen set 1
118 206-3027 Caster stud 1
N/S 206-0469 Ring-center lock (OBSOLETE) 1
