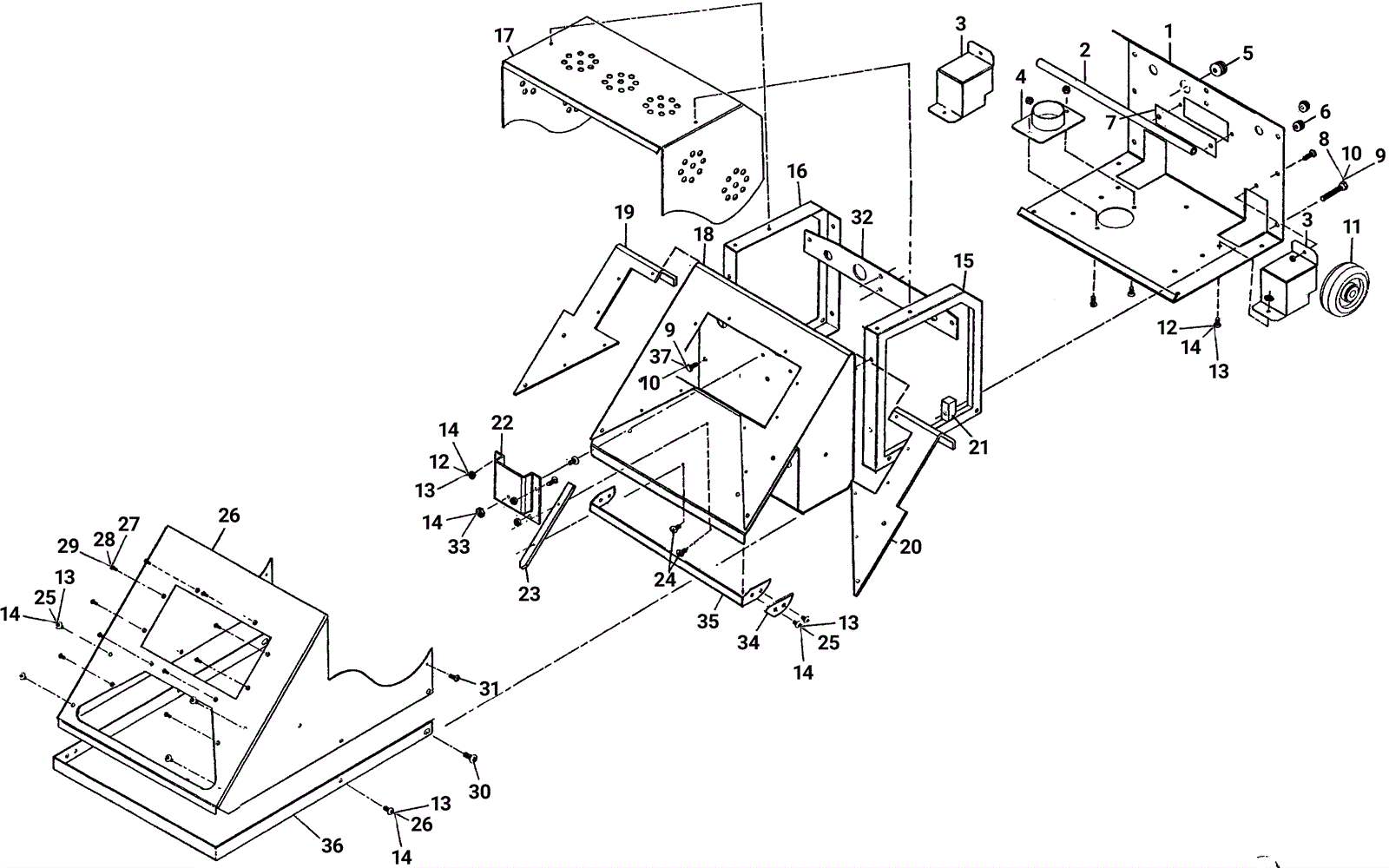

Body Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-0122 Rear motor cover (OBSOLETE) Call for price 1 usually ships 1-5 days
2 206-0123 Wheel axle shaft (OBSOLETE) Call for price 1 usually ships 1-5 days
3 206-0114 Fender (OBSOLETE) Call for price 2 usually ships 1-5 days
4 206-0135 Exhaust tube (OBSOLETE) Call for price 1 usually ships 1-5 days
5 206-0107 Grommet 5/8id (OBSOLETE) $15.08 1 usually ships 1-5 days
6 206-0085 Grommet 3/8id (OBSOLETE) Call for price 2 usually ships 1-5 days
7 206-0136 Vacuum intake screen (OBSOLETE) Call for price 1 usually ships 1-5 days
8 206-0137 Screw 1/4-20x1 1/4 (OBSOLETE) Call for price 2 usually ships 1-5 days
9 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
10 999-0190 Nut 1/4-20 hex plain finish $0.99 6 ships same day
11 206-0138 Wheel (OBSOLETE) Call for price 2 usually ships 1-5 days
12 206-0098 Screw 10-24 x 3/4 threaded pan machine stainless steel (OBSO Call for price 16 usually ships 1-5 days
13 999-0053 Washer #10 split lock plain finish $0.99 29 ships same day
14 999-0960 Nut 10-24 hex stainless steel $0.99 29 ships same day
15 206-0139 Left motor support (OBSOLETE) Call for price 1 usually ships 1-5 days
16 206-0140 Right motor support (OBSOLETE) Call for price 1 usually ships 1-5 days
17 206-0141 Motor cover top (OBSOLETE) Call for price 1 usually ships 1-5 days
18 206-0142 Recovery tank assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
19 206-0143 Right tank spacer (OBSOLETE) Call for price 1 usually ships 1-5 days
20 206-0144 Left tank spacer (OBSOLETE) Call for price 1 usually ships 1-5 days
21 206-0145 Support block (OBSOLETE) Call for price 2 usually ships 1-5 days
22 206-0146 Vac inlet duct (OBSOLETE) Call for price 1 usually ships 1-5 days
23 206-0147 Window support (OBSOLETE) Call for price 1 usually ships 1-5 days
24 206-0146 Vac inlet duct (OBSOLETE) Call for price 2 usually ships 1-5 days
25 206-0098 Screw 10-24 x 3/4 threaded pan machine stainless steel (OBSO Call for price 12 usually ships 1-5 days
26 206-0149 Front shell cover (OBSOLETE) Call for price 1 usually ships 1-5 days
27 206-0150 Screw 6-32x5/8 flat head phillips machine (OBSOLETE) Call for price 10 usually ships 1-5 days
28 999-0051 Washer #6 medium split lock $0.99 10 ships same day
29 999-0195 Nut 6-32 hex plain $0.99 10 ships same day
30 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
31 206-0151 Screw 6x1/2 standard machine (OBSOLETE) Call for price 2 usually ships 1-5 days
32 206-0152 Handle support strap (OBSOLETE) Call for price 1 usually ships 1-5 days
33 206-0098 Screw 10-24 x 3/4 threaded pan machine stainless steel (OBSO Call for price 1 usually ships 1-5 days
34 206-0153 Spacer lip (OBSOLETE) Call for price 2 usually ships 1-5 days
35 206-0154 Inner lip (OBSOLETE) Call for price 1 usually ships 1-5 days
36 206-0155 Outer lip (OBSOLETE) Call for price 1 usually ships 1-5 days
37 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 4 ships same day
