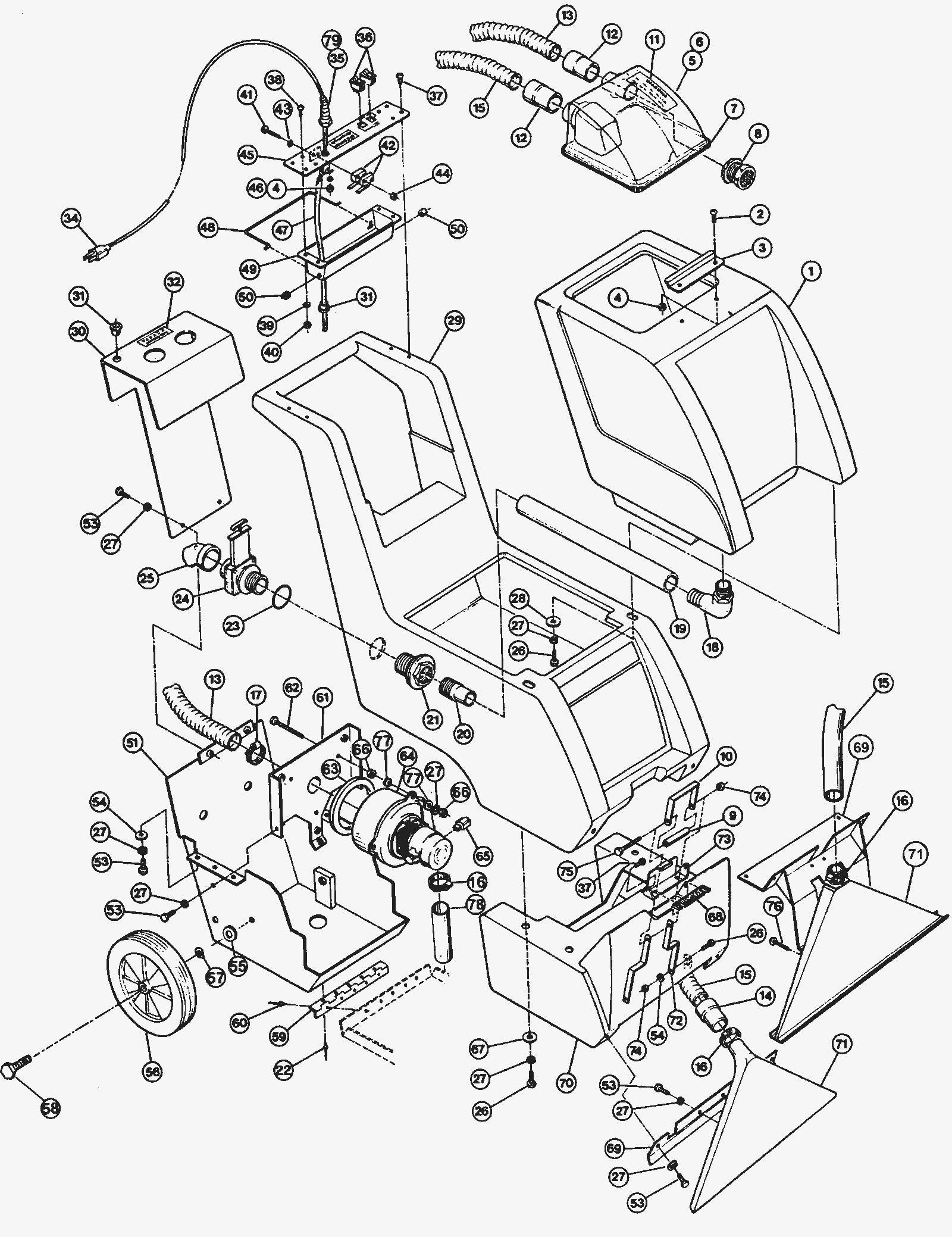

Tank and Blower Assembly

#PartDescription ReqNotesAvailability
1 206-3504 Recovery tank (OBSOLETE) 1
2 999-1690 Screw 10-24 x 3/4 round head phillips stainless steel 2
3 206-0859 Dome clasp 1
4 999-0960 Nut 10-24 hex stainless steel 3
5 206-0864 Dome lid with gasket 1
6 206-3048 Dome lid without gasket 1
7 206-0843 Dome gasket 1
8 206-3505 Intake filter 1
9 206-3506 Lift stop 1
10 206-3507 Lift handle 1
11 206-3508 Add defoamer decal (OBSOLETE) 1
12 206-3051 1 1/2 inch hose cuff 2
13 206-3509 Hose 1 1/2 x 33 inch (OBSOLETE) 1
14 206-3510 Hose cuff 1
15 206-3511 Hose 1 1/2 x 62 inch (OBSOLETE) 1
16 206-0071 Clamp 1
17 206-5431 Clamp 2
18 206-3512 90 degree adaptor 1
19 206-3513 Drain hose - HOSE VACUUM REINFORCED 1.5ID 62IN 1
20 206-3514 Adaptor 1
21 206-3515 Fitting 1
22 206-3516 Pop rivet 5
23 217-0028 Dump valve gasket 1
24a 217-0029 Dump valve 1
24b 206-3518 Drain valve seal kit (OBSOLETE) 1
24c 206-3519 T handle 1
25 206-1194 Elbow 1
26 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 10
27 999-0060 Washer 1/4 split lock plain finish 24
28 999-1364 Washer 5/16 x 1 fender zinc finish 2
29 206-3520 Solution tank 1
30 206-3521 Back plate (OBSOLETE) 1
31 206-3522 Snap bushing 2
32 206-3116 Warning disconnect decal 1
34a 206-1103 14/3 power cord 50 foot (yellow) 1 (oem)
34b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (non-oem)
35 206-1102 Strain relief 1
36 206-0045 On/Off rocker switch 2
37 999-1544 Screw 8-32 x 1/2 truss head phillips stainless steel 6
38 999-1366 Screw 8-32 x 3/8 round head phillips stainless steel 4
39 999-1083 Washer #8 internal star lock stainless steel 5
40 999-1819 Nut 8-32 hex stainless steel 4
41 999-1057 Screw 4-40 x 1-1/4 pan head phillips stainless steel 2
42 206-3523 Momentary switch 2
43 999-1691 Washer #4 external lock stainless steel 2
44 999-0295 Nut 4-40 nylon insert lock stainless steel 2
45 206-0798 Switch plate 1
46 999-0053 Washer #10 split lock plain finish 1
47 206-3524 Heat shrink 6inch
48 206-3525 Actuator bar 1
49 206-3526 Switch housing 1
50 206-3527 Grommet 2
51 206-3528 Chassis 1
53 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel 15
54 206-4820 Washer 9
55 206-5048 Wave washer 2
56 206-0818 Drive wheel 10 x 1.75 inches 2
57 206-5049 Fiber washer 2
58 206-3529 Shoulder bolt (OBSOLETE) 2
59 206-3099 Hinge 1
60 206-3100 Pop rivet 7
61 206-3530 Vacuum motor mounting bracket 1
62 206-0097 Bolt 1/4-20 x 4 1/2 hex head tap 3
63 206-0065 Vacuum motor gasket 1
64 206-5206 115V 3 stage vacuum motor 1
65 206-3531 Carbon brush (sold individually) 2
66 999-0190 Nut 1/4-20 hex plain finish 7
67 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 6
68 206-3532 Gasket (OBSOLETE) 1
69 206-3533 Vacuum shoe bracket 1
70 206-3534 Shroud 1
71 206-3535 Vacuum shoe 1
72 206-3536 Lift bar 2
73 206-3537 Handle bracket 1
74 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
75 999-0707 Bolt 1/4-20 x 3 3/4 hex head grade 5 zinc plated 1
77 999-0016 Washer 1/4 flat plain finish 6
78 206-3538 6 inch exhaust hose (OBSOLETE) 1
79 206-3539 Nut 1/2 NPT 1
N/S 206-3099 Hinge 1
