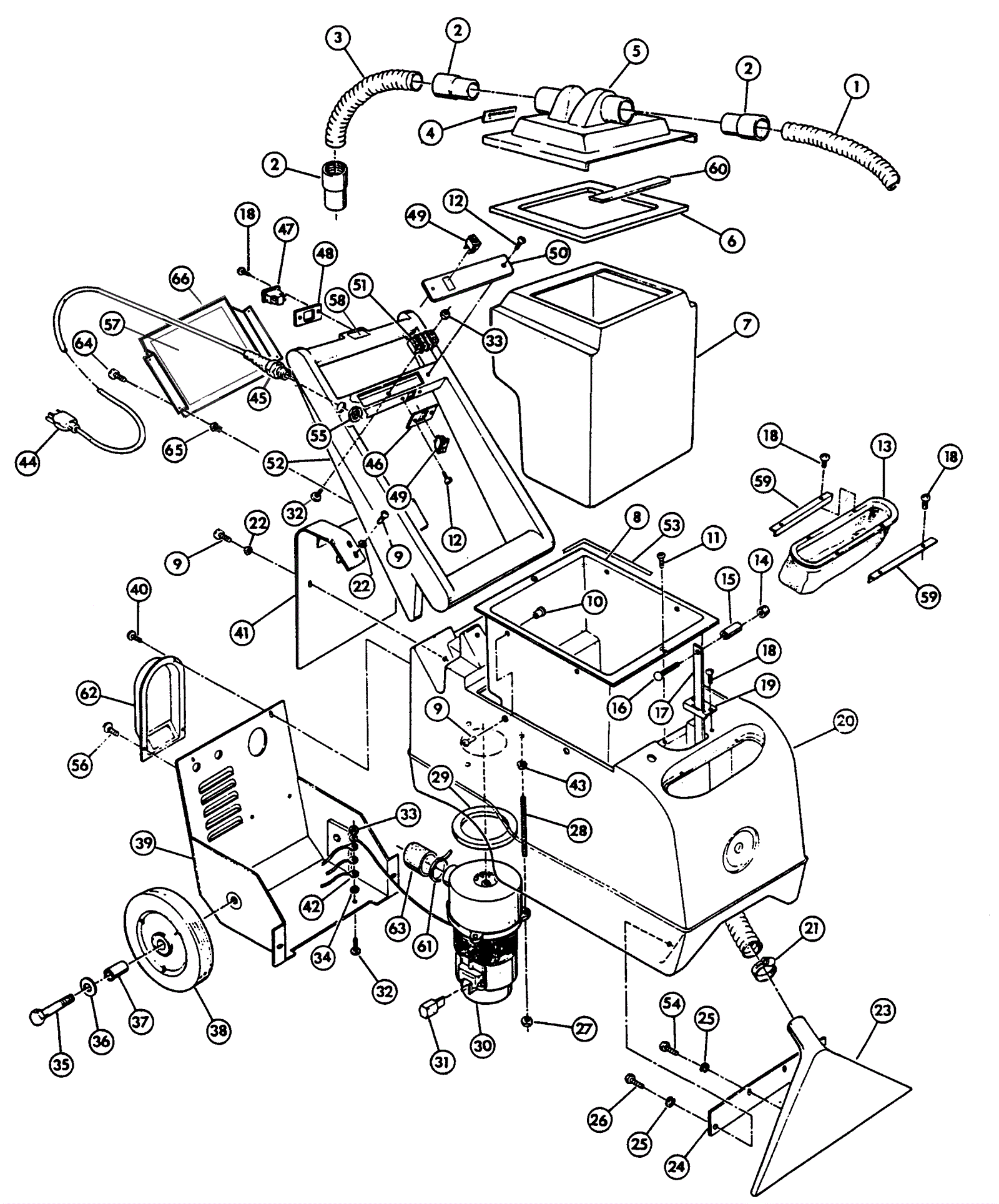

Entire Assembly

#PartDescription ReqNotesAvailability
1 206-3050 17 inch vac head hose (OBSOLETE) 1
2 206-3051 1 1/2 inch hose cuff 3
3 206-3052 6 inch vacuum hose 1
4 206-3508 Add defoamer decal (OBSOLETE) 1
5 206-0852 Dome (OBSOLETE) 1
6 206-0853 Dome gasket 1
7 206-3055 Recovery tank 1
8 206-3056 Liner 1
9 999-0571 Screw 10-24 x 3/8 pan head phillips stainless steel 10
10 206-3057 Connecting nut 4
11 206-0120 Screw 10-32 x 1/2 flat head machine stainless steel 2
12 999-1544 Screw 8-32 x 1/2 truss head phillips stainless steel 4
13 206-3058 Solution filter assembly 1
14 999-1344 Nut 1/4-20 acorn stainless steel 1
15 206-3059 Brush lift knob 1
16 999-1443 Bolt 1/4-20 x 1 1/4 carriage stainless steel 1
17 206-3060 Handle lift bracket 1
18 999-1544 Screw 8-32 x 1/2 truss head phillips stainless steel 8
19 206-3061 Brush lift catch 1
20 206-3062 Solution tank 1
21 206-0071 Clamp 1
22 999-0053 Washer #10 split lock plain finish 7
23 206-3063 Vacuum shoe 1
24 206-3064 Vacuum shoe support 1
25 999-0060 Washer 1/4 split lock plain finish 14
26 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 2
27 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
28 206-3065 Motor mount stud 3
29 206-0065 Vacuum motor gasket 1
30 206-3066 115V vacuum motor 1
31 206-1106 Carbon brush (sold individually) (OBSOLETE) 2
32 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 3
33 999-0960 Nut 10-24 hex stainless steel 6
34 999-1026 Washer #10 internal lock stainless steel 7
35 999-0638 Bolt 3/8-16 x 2 1/4 hex head 2
36 999-0024 Washer 5/16 flat stainless steel 2
37 206-3067 Wheel spacer 2
38 206-3068 6 inch wheel (gray) 2
39 206-3069 Wheel chassis 1
40 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated 4
41 206-3070 Retainer cover 1
42 206-3071 16-14 terminal ring 4
43 999-0190 Nut 1/4-20 hex plain finish 3
44a 206-1208 16/3 power cord 25 foot 1 (OEM)
44b 991-5006 16/3 replacement power cord 50 foot (yellow) 1 (NON-OEM)
45 206-1102 Strain relief 1
46 206-3072 Accessory switch plate 1
47 206-0051 Solution switch (OBSOLETE) 1
48 206-3073 Momentary switch plate 1
49 206-0045 On/Off rocker switch 2
50 206-3074 Rocker switch plate 1
51 206-3075 Terminal block 1
52 206-3076 Handle 1
53 206-3077 Gasket (OBSOLETE) 4 ft
54 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 2
55 206-3539 Nut 1/2 NPT 1
56 999-1211 Screw 10-24 x 1/4 pan head phillips stainless steel 2
57 206-3078 Instruction decal 1
58 206-3079 Push to clean decal 1
59 206-3080 Filter frame bracket 2
60 206-3081 Gasket 1
61 206-1007 Clamp 1
62 206-3082 Air duct deflector 1
63 206-3083 Air duct 1
64 999-0520 Screw 10-24 x 1 pan head phillips stainless steel 4
65 206-3084 Jacknut 10-24 zinc 4
KIT1 206-3054 Dome assembly (OBSOLETE) 1 (includes 4-6, 60)
