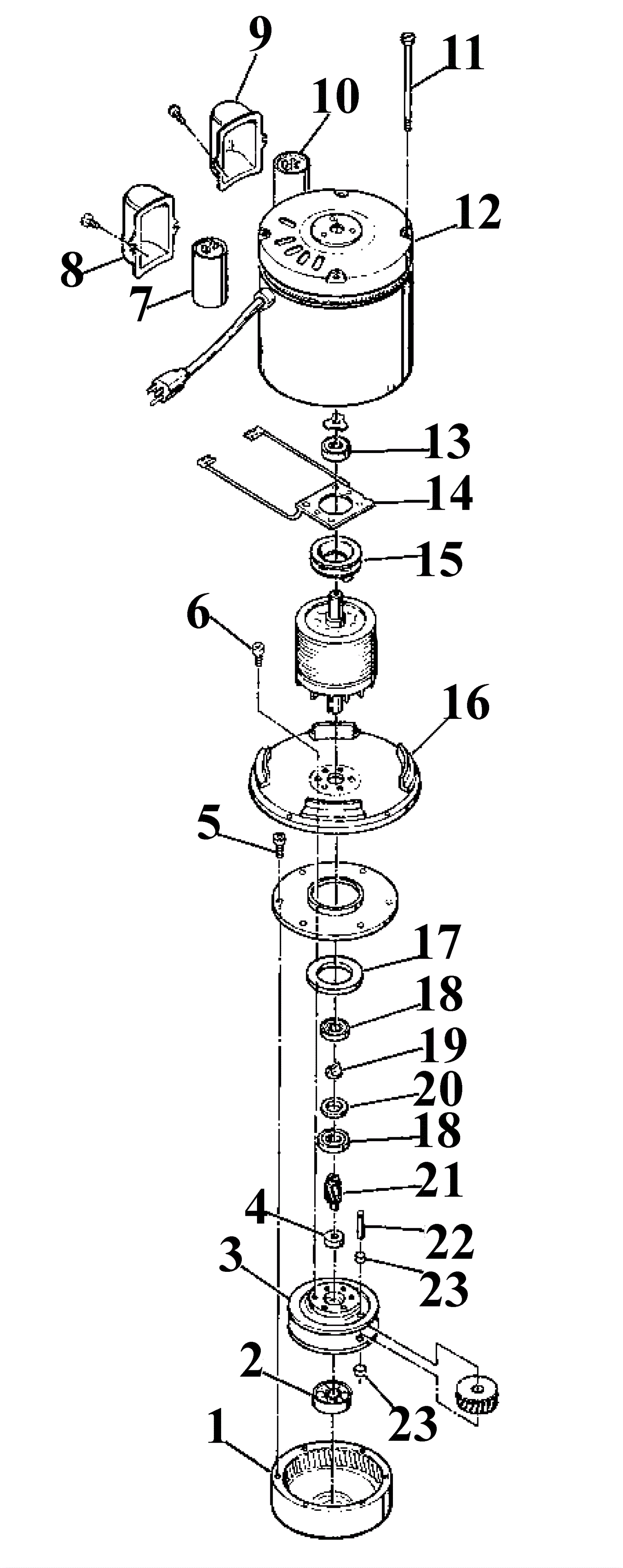

Q-17 Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-0234 Ring gear housing $263.16 (1999-2005) usually ships 1-5 days
2 206-1251 Ring gear housing bearing (OBSOLETE) $104.18 (1999-present) usually ships 1-5 days
3 206-0236 Idler housing (OBSOLETE) $98.54 (1999-2005) usually ships 1-5 days
4 206-0253 Bearing $78.17 (1999-present) usually ships 5-15 days
5 206-0238 Screw (OBSOLETE) $1.85 6 (2005 -present) usually ships 1-5 days
6 206-0239 Screw (OBSOLETE) $1.85 6 (2005 -present) usually ships 1-5 days
7 206-1252 Run capacitor $72.06 (2005 -present) usually ships 5-15 days
8 206-1253 Capacitor cover (OBSOLETE) $17.87 (2005 -present) usually ships 1-5 days
9 206-1253 Capacitor cover (OBSOLETE) $17.87 (2005- present) usually ships 1-5 days
10a 206-5408 Start capacitor (Baldor) (OBSOLETE) $59.92 (1999-present) usually ships 5-15 days
10b 206-1254 Start capacitor $120.23 (2005-present) usually ships 5-15 days
11 206-5102 Bolt (OBSOLETE) $6.17 4 (1999-2005) usually ships 5-15 days
12 206-1255 End bell (OBSOLETE) $52.70 (2005-present) usually ships 1-5 days
13 206-0462 Motor top bearing $88.65 (1999-present) usually ships 1-5 days
14a 206-5418 Stationary switch (Baldor) $115.61 (1999-present) usually ships 5-15 days
14b 206-1256 Stationary switch (OBSOLETE) $33.07 (2005-present) usually ships 1-5 days
15 206-1257 Rotary switch (OBSOLETE) $25.46 (2005-present) usually ships 1-5 days
16a 206-5210 Lower motor end bell (OBSOLETE) $89.99 (1999-present) usually ships 5-15 days
16b 206-1258 Lower motor end bell (OBSOLETE) $108.61 (2005-present) usually ships 1-5 days
17 206-0252 Bearing $247.48 (1999-present) usually ships 1-5 days
18 206-0253 Bearing $78.17 2 1999-present) usually ships 5-15 days
19 206-5104 Coupling flexible $56.05 (1999-present) usually ships 5-15 days
20 206-0254 Spacer sleeve $24.74 (1999-present) usually ships 5-15 days
21 206-0255 Pinion $139.17 (1999-present) usually ships 5-15 days
22 206-0256 Shaft idler (OBSOLETE) $24.09 3 (1999-present) usually ships 1-5 days
23 206-0257 Bearing idler $47.31 6 1999-present) usually ships 1-5 days
