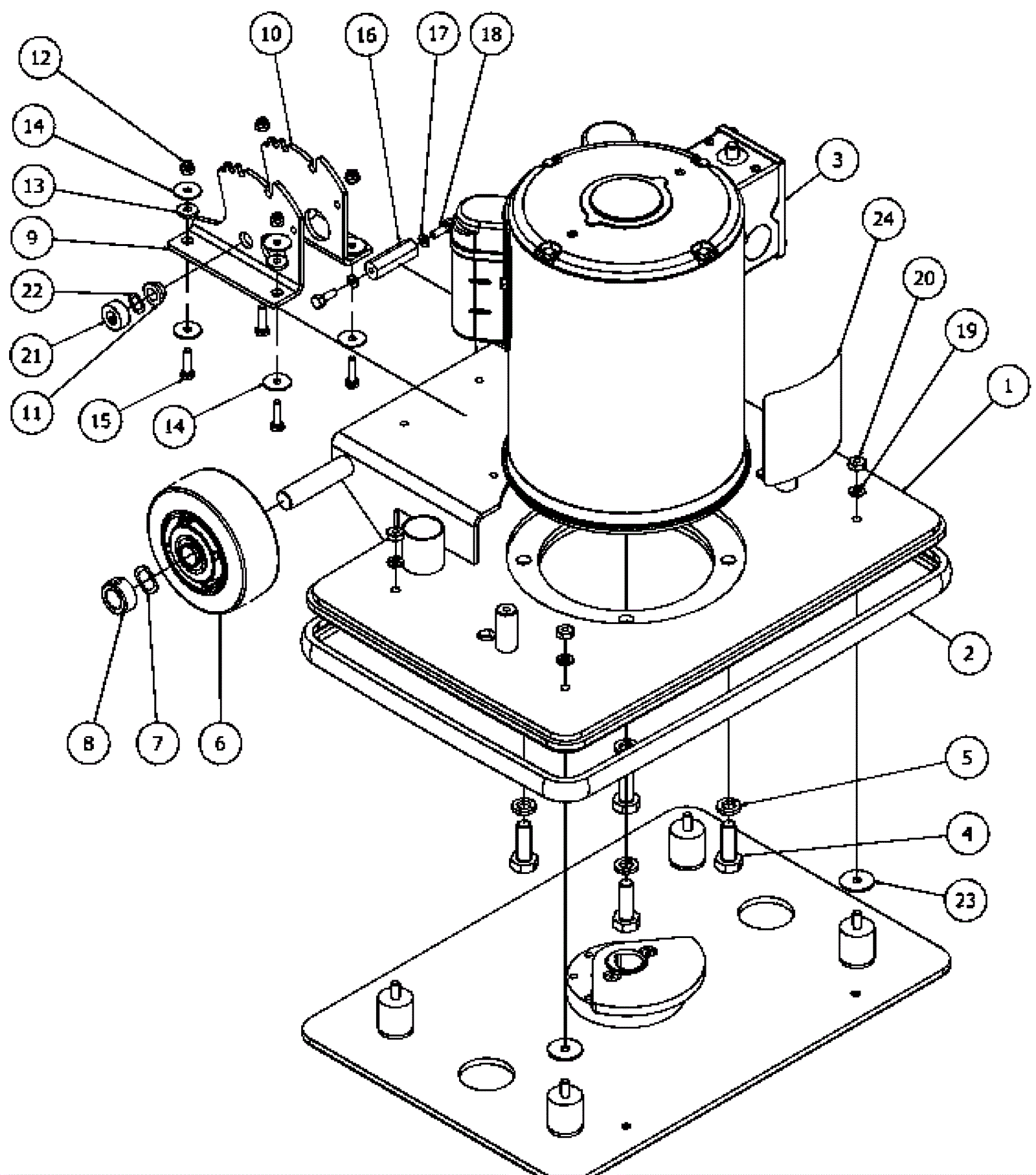

FM-20ORB Base Assembly - Motor 545203

#PartDescriptionPriceReqNotesAvailability
1 206-5440 20 inch frame $589.71 1 usually ships 5-15 days
2 206-5441 Bumper $82.97 1 usually ships 5-15 days
3a 206-5442 Motor $1,735.78 1 usually ships 5-15 days
3b 206-5474 Start capacitor $301.91 1 usually ships 5-15 days
3c 206-5475 Run capacitor $307.62 1 usually ships 5-15 days
4 206-5443 Screw 1/2-13 x 1 1/2 hex zinc $5.26 4 usually ships 5-15 days
5 206-5444 Lock washer $2.57 4 usually ships 5-15 days
6 206-1353 5 inch wheel $67.94 2 usually ships 1-5 days
7 206-5445 Washer $5.50 2 usually ships 5-15 days
8 206-0394 Upper shaft collar $11.55 2 usually ships 1-5 days
9 206-5446 Right hand handle bracket $36.66 1 usually ships 5-15 days
10 206-5447 Left hand handle bracket $36.66 1 usually ships 5-15 days
11 206-3301 Flange bushing $11.84 2 usually ships 5-15 days
12 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
13 206-3373 Rubber bushing $12.14 4 ships same day
14 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 8 ships same day
15 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated $0.99 4 ships same day
16 206-5449 Spacer bracket $30.46 1 usually ships 5-15 days
17 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
18 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 2 ships same day
19 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
20 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
21 206-1287 1/2 inch clamp collar $6.16 2 ships same day
22 206-3310 Washer 1/2 wave $2.59 2 ships same day
23 206-5450 Washer $5.15 2 usually ships 5-15 days
24 206-1175 Pacific Floorcare decal $14.33 1 usually ships 1-5 days
