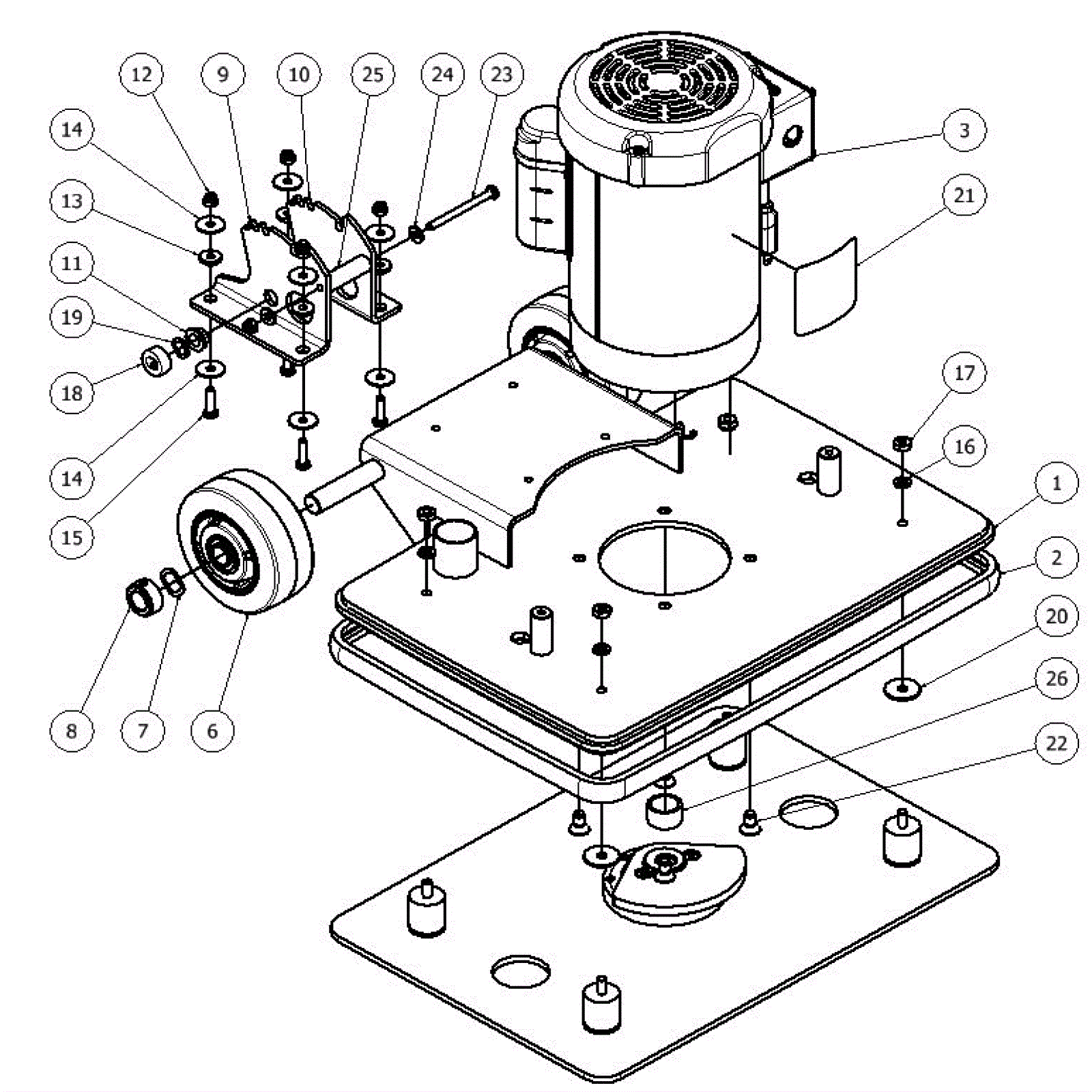

FM-20ORB Base Assembly - Motor 545201

#PartDescriptionPriceReqNotesAvailability
1 206-2077 20 inch frame (OBSOLETE) Call for price 1 usually ships 5-15 days
2 206-5441 Bumper $82.97 1 usually ships 5-15 days
3 206-3826 Motor $1,987.71 1 usually ships 5-15 days
6 206-1353 5 inch wheel $67.94 2 usually ships 1-5 days
7 206-5445 Washer $5.50 2 usually ships 5-15 days
8 206-0394 Upper shaft collar $11.55 2 usually ships 1-5 days
9 206-5446 Right hand handle bracket $36.66 1 usually ships 5-15 days
10 206-5447 Left hand handle bracket $36.66 1 usually ships 5-15 days
11 206-3301 Flange bushing $11.84 2 usually ships 5-15 days
12 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 5 ships same day
13 206-3373 Rubber bushing $12.14 4 ships same day
14 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 8 ships same day
15 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated $0.99 4 ships same day
16 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
17 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
18 206-1287 1/2 inch clamp collar $6.16 2 ships same day
19 206-3310 Washer 1/2 wave $2.59 2 ships same day
20 206-5450 Washer $5.15 2 usually ships 5-15 days
21 206-1293 Decal $5.23 1 usually ships 1-5 days
22 206-2085 Screw $4.50 4 usually ships 5-15 days
23 206-2084 Screw (OBSOLETE) Call for price 1 usually ships 5-15 days
24 206-4820 Washer $3.14 2 usually ships 5-15 days
25 206-2083 Spacer bracket (OBSOLETE) Call for price 1 usually ships 5-15 days
26 206-2082 Spacer shaft $27.85 1 usually ships 5-15 days
N/S 206-2158 Start capacitor $333.23 1 usually ships 5-15 days
N/S 206-2159 Run capacitor $241.14 1 usually ships 5-15 days
