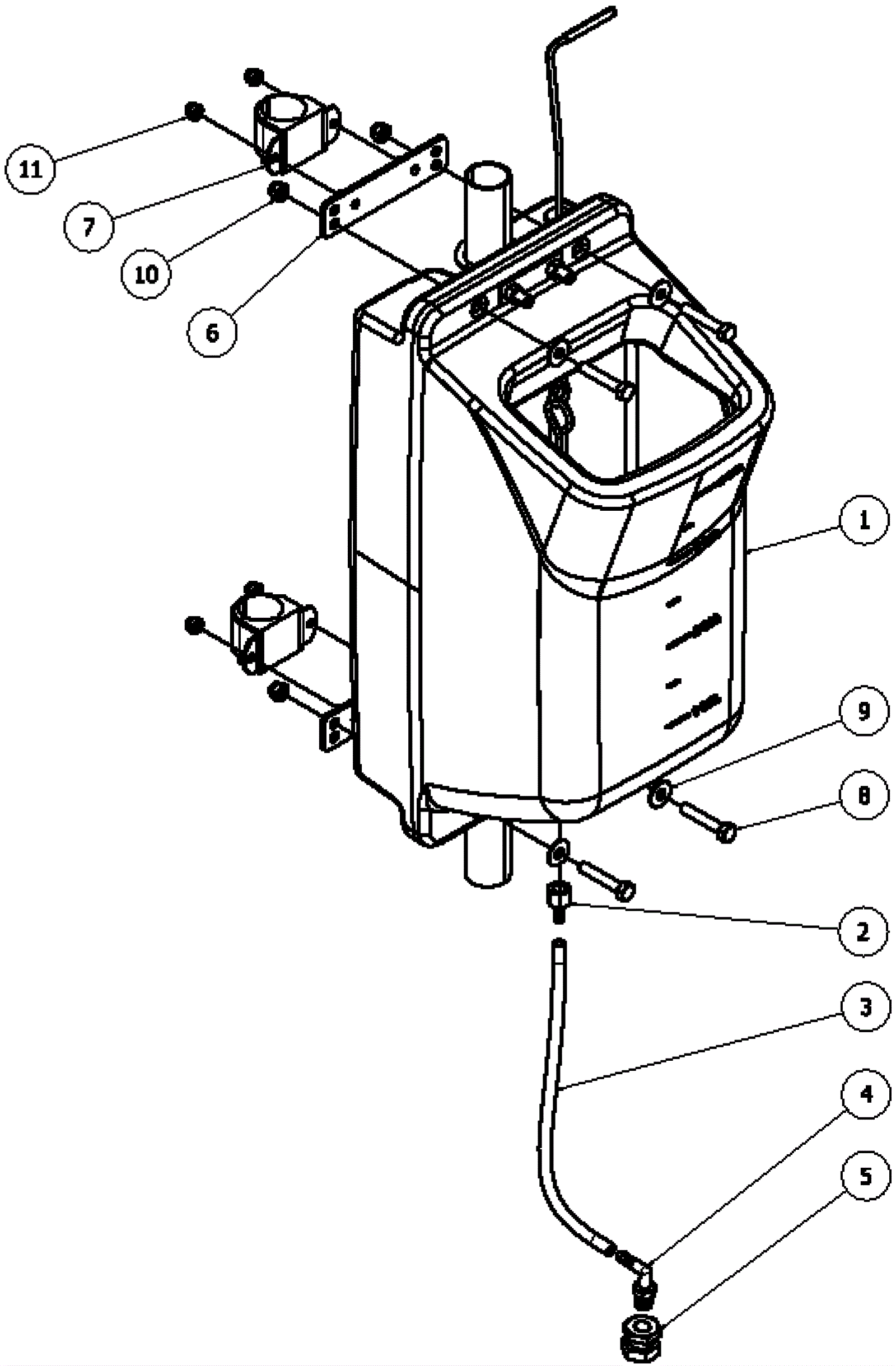

FM 20HD Solution Tank Assembly - After SN 104360

#PartDescription ReqNotesAvailability
1 206-1332 Tank assembly 1 usually ships 17-25 days
2 206-1333 Brass fitting 1 usually ships 1-5 days
3 206-2078 Hose 1 usually ships 17-25 days
4 206-1334 Elbow fitting 1 usually ships 17-25 days
5 206-3120 1/4 inch brass coupling 1 usually ships 17-25 days
6 206-1335 Tank adapter plate 2 usually ships 1-5 days
7 206-1336 U-shaped clamp 2 usually ships 17-25 days
8 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel 4 usually ships 11-14 days
9 999-0024 Washer 5/16 flat stainless steel 4 usually ships 11-14 days
10 999-0593 Nut 5/16-18 hex stainless steel 4 usually ships 11-14 days
11 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4 usually ships 11-14 days
