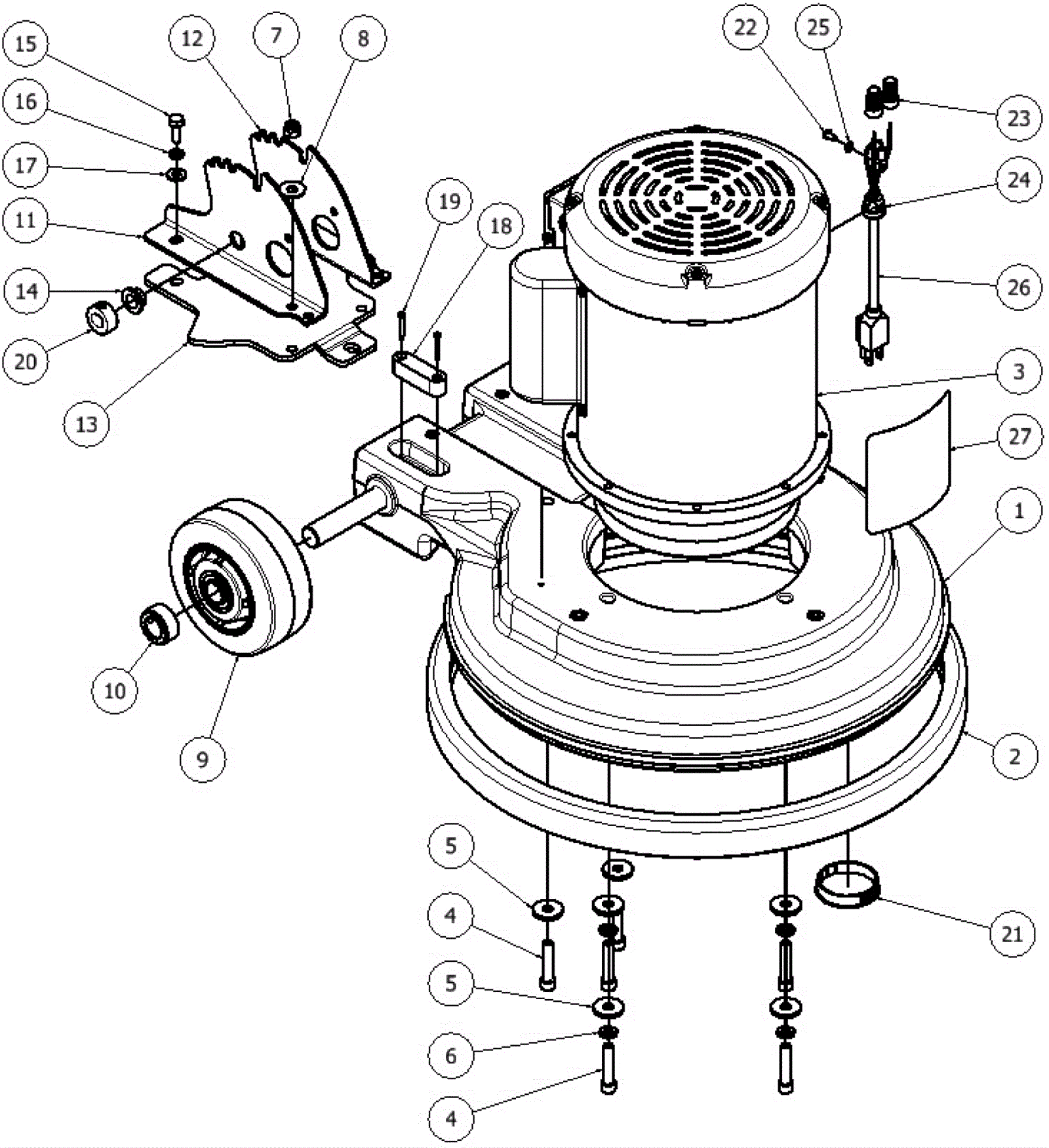

FM-17EHD Base Assembly - After SN 104360

#PartDescriptionPriceReqNotesAvailability
1 206-1351 17 inch base (OBSOLETE) Call for price 1 usually ships 1-5 days
2 206-5050 17 inch bumper $90.27 1 usually ships 5-15 days
3 206-1352 Motor $1,450.64 1 usually ships 1-5 days
4 999-0131 Screw 5/16-18 x 1 1/2 socket head stainless steel $2.86 6 ships same day
5 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 6 ships same day
6 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
7 999-0593 Nut 5/16-18 hex stainless steel $0.99 2 ships same day
8 206-5233 Washer 5/16 x .040 flat $2.35 2 ships same day
9 206-1353 5 inch wheel $67.94 2 usually ships 1-5 days
10 206-0394 Upper shaft collar $11.55 2 usually ships 1-5 days
11 206-1290 Right hand handle bracket $58.17 1 usually ships 1-5 days
12 206-1291 Left hand handle bracket $66.29 1 usually ships 1-5 days
13 206-1354 Adapter plate $67.12 1 usually ships 1-5 days
14 206-3301 Flange bushing $10.76 2 usually ships 5-15 days
15 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 2 ships same day
16 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
17 206-4820 Washer $2.85 2 usually ships 5-15 days
18 206-1288 Level indicator $54.70 1 usually ships 1-5 days
19 206-1289 Screw tapping #6 x 1 $2.57 2 usually ships 1-5 days
20 206-1287 1/2 inch clamp collar $5.60 2 ships same day
21 206-1292 2 inch hole plug $2.57 1 usually ships 1-5 days
22 206-5471 Screw $2.72 1 usually ships 5-15 days
23 206-3594 Wire terminal (yellow) $4.63 2 usually ships 1-5 days
24 206-0245 Strain relief $5.03 1 usually ships 5-15 days
25 999-1083 Washer #8 internal star lock stainless steel $0.99 1 ships same day
26 206-0244 Cord assembly motor $14.47 1 usually ships 5-15 days
27 206-1175 Pacific Floorcare decal $14.33 1 usually ships 1-5 days
