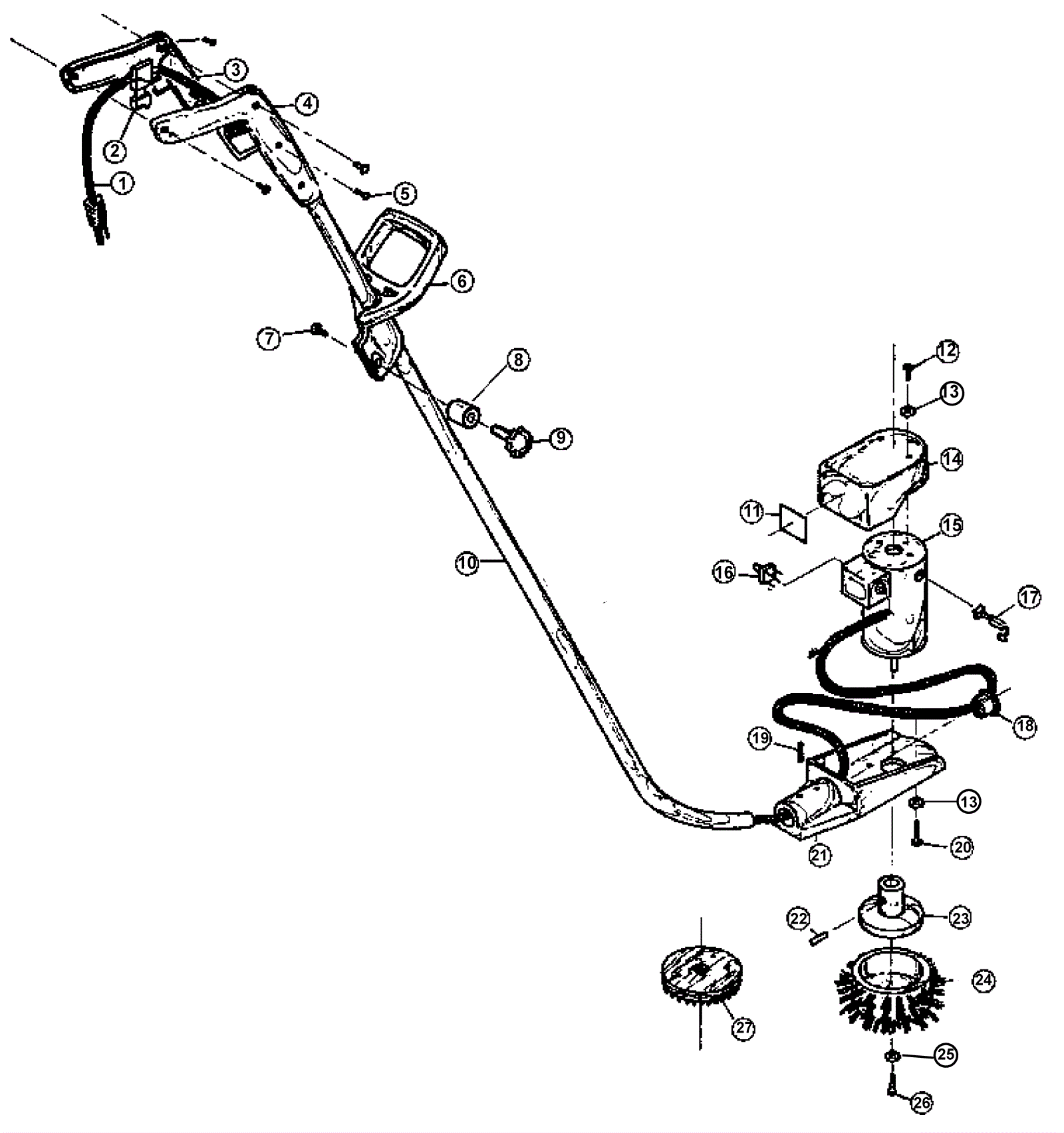

MINI-EDGER Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-0036 Power cord $24.53 1 usually ships 5-15 days
2 206-0037 Trigger switch $23.71 1 usually ships 5-15 days
3 206-0211 Left handle $9.24 1 usually ships 5-15 days
4 206-0210 Right handle $9.24 1 usually ships 5-15 days
5 206-0212 Screw $2.57 4 usually ships 1-5 days
6 206-0038 Adjusting handle $68.36 1 usually ships 1-5 days
7 999-1820 Bolt 5/16-18 x 2 3/4 carriage head stainless steel $4.38 1 ships same day
8 206-0218 Knob spacer $24.12 1 usually ships 5-15 days
9 206-0213 Fluted knob $23.58 1 usually ships 5-15 days
10 206-0215 Tube handle $126.37 1 usually ships 1-5 days
11 206-1244 Warning decal $10.33 2 usually ships 5-15 days
12 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
13 999-0053 Washer #10 split lock plain finish $0.99 6 ships same day
14 206-0220 Motor cover $59.95 1 usually ships 5-15 days
15 206-1240 115V motor assembly $354.74 1 usually ships 5-15 days
16 206-0229 Motor rectifier $113.60 1 usually ships 5-15 days
17 206-1240 115V motor assembly $354.74 2 usually ships 5-15 days
18 206-0219 Snap bushing $3.34 1 usually ships 1-5 days
19 206-5038 Screw 1/4-20 x 3/8 set $2.57 2 usually ships 5-15 days
20 999-0481 Screw 12-24 x 5/8 pan head slotted zinc plated $0.99 1 ships same day
21 206-1241 Motor base $113.55 1 usually ships 1-5 days
22 206-0230 Screw 1/4-20x1/2 allen set $2.57 2 usually ships 1-5 days
23 206-0224 Motor adapter $112.60 1 usually ships 5-15 days
24 206-0039 Scrub brush $165.55 1 usually ships 5-15 days
25 999-0105 Washer 5/16 external star lock zinc plated $0.99 1 ships same day
26 206-0225 Screw 5/16-24x1 1/4 flat head $2.57 1 usually ships 5-15 days
27 206-0226 Pad drive disc $70.01 1 usually ships 5-15 days
N/S 206-1242 Splash guard $75.29 1 usually ships 5-15 days
N/S 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 3 ships same day
N/S 206-5479 6.5 inch black pad (case of 15) $84.56 1 ships same day
N/S 206-0822 6.5 inch brown pad (case of 15) $84.56 1 usually ships 5-15 days
N/S 206-5480 6.5 inch green pad (case of 15) (OBSOLETE) $80.33 1 usually ships 5-15 days
N/S 206-5481 6.5 inch red pad (case of 15) $84.56 1 usually ships 5-15 days
N/S 206-5482 6.5 inch white pad (case of 15) $84.47 1 usually ships 5-15 days
N/S 206-5483 6.5 inch carpet bonnet (case of 6) $160.66 1 usually ships 5-15 days
N/S 206-5484 Poly scrub brush $193.71 1 usually ships 5-15 days
N/S 206-3049 Nylon brush $224.40 1 usually ships 5-15 days
