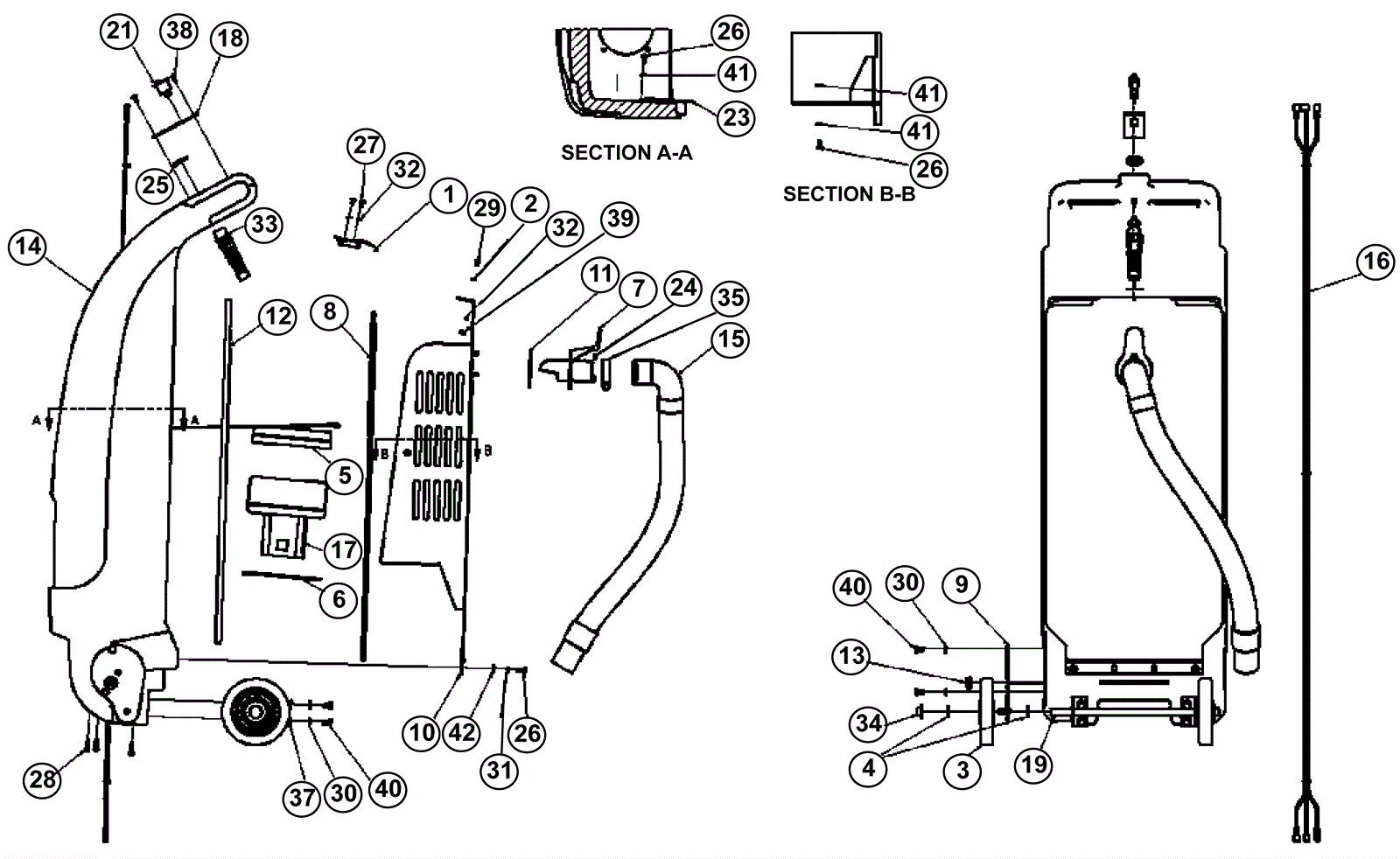

Handle Assembly

#PartDescription ReqNotesAvailability
1 206-1152 Latch 1
2 206-1153 Latch keeper 1
3 206-5001 5 inch wheel 2
4 206-5049 Fiber washer 4
5a 991-5119 Vacuum motor filter 1
5b 206-1154 HEPA filter (OBSOLETE) 1 (optional)
6 206-3013 Gasket 1
7 206-1155 Hose adapter 1
8a 206-1156 Paper vacuum bag (pkg of 10) 1
8b 206-1157 Cloth vacuum bag 1 (optional)
9 206-1158 Stop handle bracket 1
10 206-1159 Rear cover weldment 1
11 206-1160 Hose adapter gasket 1
12 206-1161 Gasket 1
13 206-1162 Grommet 1
14 206-1163 Handle 1
15 206-3441 Squeegee hose 1
16 206-1165 Wire harness 1
17 206-1166 120V 2 stage vacuum motor (OBSOLETE) 1
18 206-1167 Switch mounting plate 1
19 206-1168 Rear weldment shaft 1
21 206-0045 On/Off rocker switch 1
23 206-1171 Lanyard 1
24 206-5019 Nut 10-32 elastic stop 3
25 206-3539 Nut 1/2 NPT 1
26 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel 4
27 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 2
28 206-1173 Screw #10 x 3/4 AB hex head 4
29 999-0437 Screw 8-32 x 1/2 flat head phillips zinc plated 1
30 999-0060 Washer 1/4 split lock plain finish 6
31 999-0053 Washer #10 split lock plain finish 2
32 999-1083 Washer #8 internal star lock stainless steel 3
33 206-1102 Strain relief 1
34 206-1120 Snap axle cap 2
35 206-0071 Clamp 1
37 206-4820 Washer 4
38 999-1544 Screw 8-32 x 1/2 truss head phillips stainless steel 2
39 999-1819 Nut 8-32 hex stainless steel 1
40 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel 6
41 999-0679 Nut 10-32 hex stainless steel 3
42 999-0998 Washer #10 flat stainless steel 2
N/S 206-1103 14/3 power cord 50 foot (yellow) 1
N/S 206-1174 Male terminal (OBSOLETE) 4
