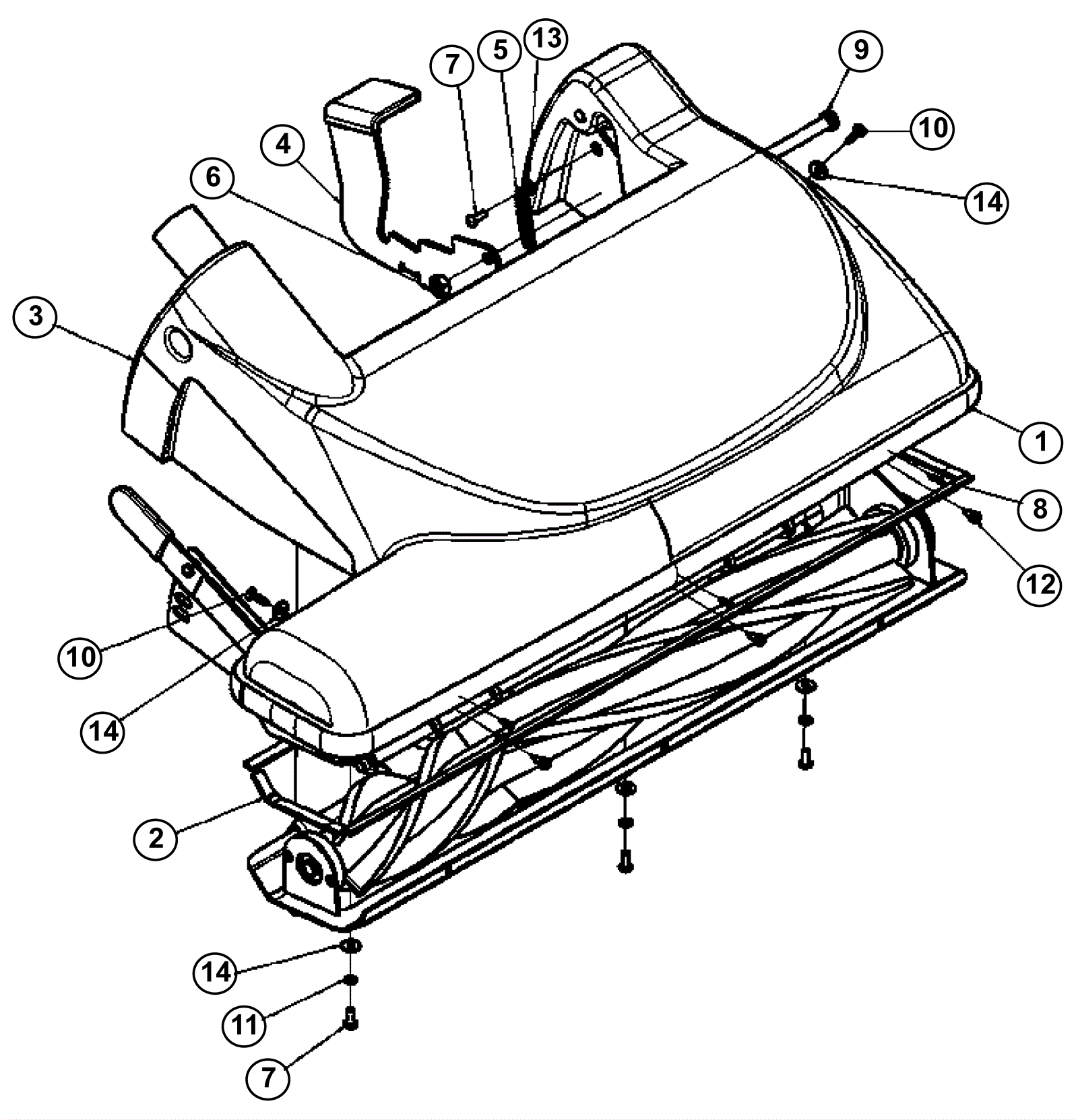

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-1147
|
Extrusion bumper |
1 |
|
|
2 |
206-1148
|
Shoe gasket |
2 |
|
|
3 |
206-1149
|
Base housing |
1 |
|
|
4 |
206-1150
|
Foot handle lever |
1 |
|
|
5 |
206-1151
|
Extension spring |
1 |
|
|
6 |
999-0593
|
Nut 5/16-18 hex stainless steel |
1 |
|
|
7 |
999-1350
|
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
6 |
|
|
8 |
206-1136
|
Screw 4-24 x 1/2 flat head |
3 |
|
|
9 |
206-1142
|
Shoulder screw |
1 |
|
|
10 |
999-1389
|
Screw 8-32 x 3/4 truss head phillips stainless steel |
2 |
|
|
11 |
999-0053
|
Washer #10 split lock plain finish |
5 |
|
|
12 |
999-1544
|
Screw 8-32 x 1/2 truss head phillips stainless steel |
3 |
|
|
13 |
999-0679
|
Nut 10-32 hex stainless steel |
1 |
|
|
14 |
999-0998
|
Washer #10 flat stainless steel |
7 |
|
|
