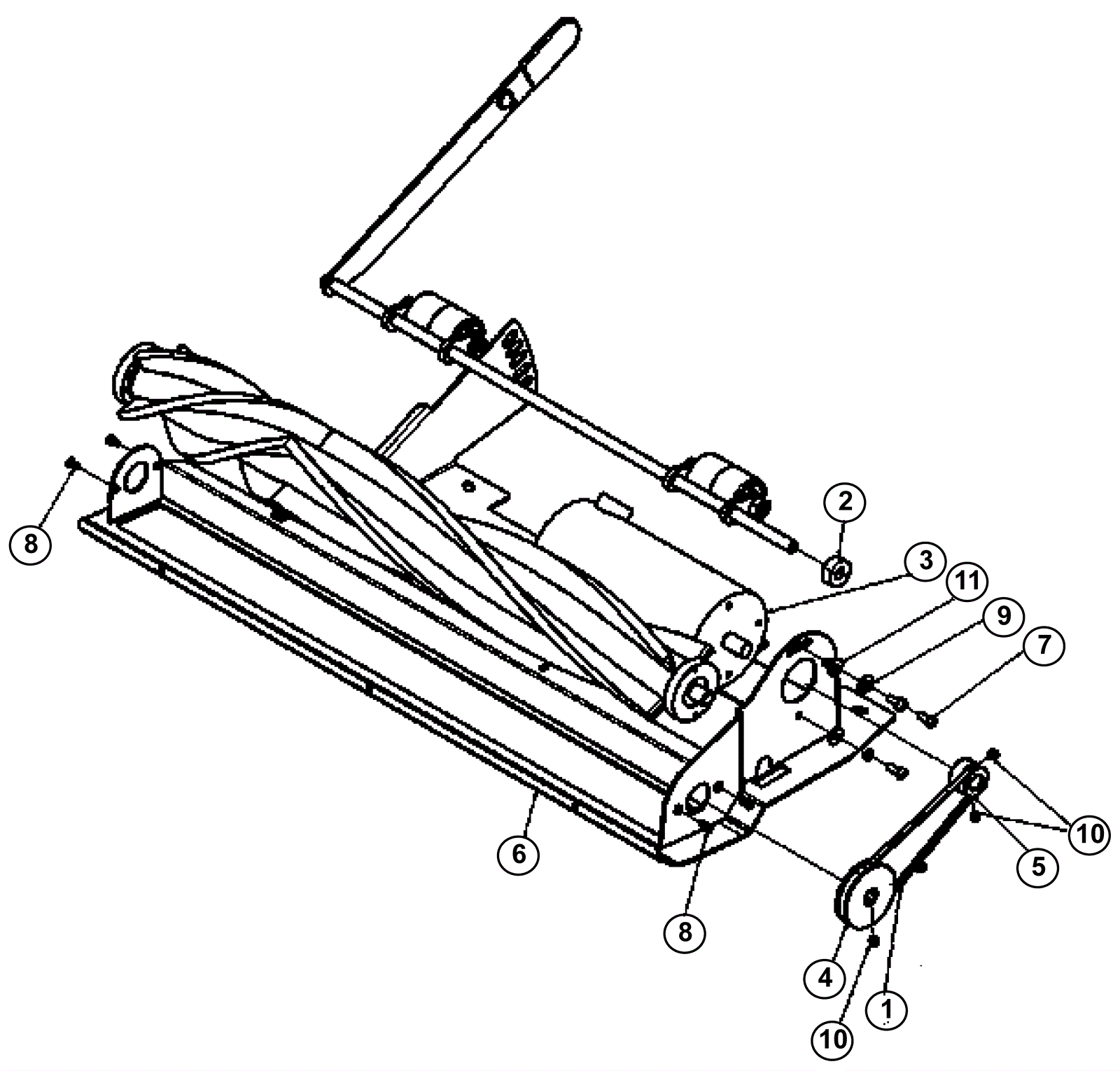

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-1143
|
Brush belt (OBSOLETE) |
1 |
|
|
2 |
206-1144
|
Collar shaft |
1 |
|
|
3 |
206-1145
|
115V brush motor |
1 |
|
|
4 |
206-0017
|
Pulley brush |
1 |
|
|
5 |
206-0816
|
Motor pulley |
1 |
|
|
6 |
206-1146
|
Brush shoe weldment |
1 |
|
|
7 |
999-1350
|
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
3 |
|
|
8 |
999-0093
|
Screw 8-32 x 3/8 flat head slotted zinc plated |
4 |
|
|
9 |
999-0053
|
Washer #10 split lock plain finish |
3 |
|
|
10 |
206-5205
|
Set screw |
4 |
|
|
11 |
999-0998
|
Washer #10 flat stainless steel |
3 |
|
|
