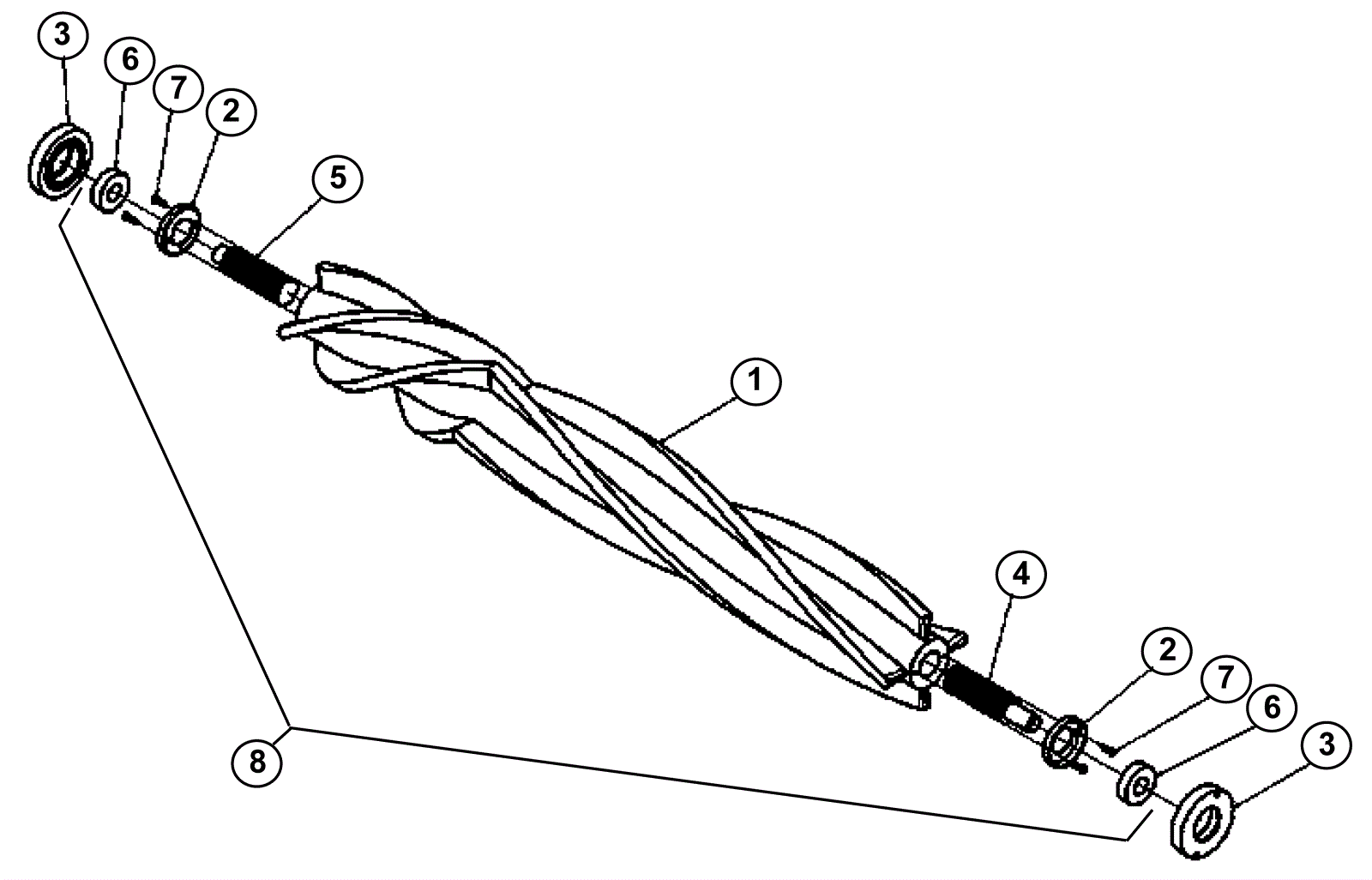

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-1133
|
Brush roll |
1 |
|
|
2 |
206-1134
|
Thread guard |
2 |
|
|
3 |
206-0011
|
Bearing housing |
2 |
|
|
4 |
206-1135
|
Left hand shaft |
1 |
|
|
5 |
206-3017
|
Right hand shaft |
1 |
|
|
6 |
206-0009
|
Bearing |
2 |
|
|
7 |
206-1136
|
Screw 4-24 x 1/2 flat head |
4 |
|
|
8 |
206-1137
|
Brush roll assembly |
1 |
(includes 1-2, 4-7) |
|
