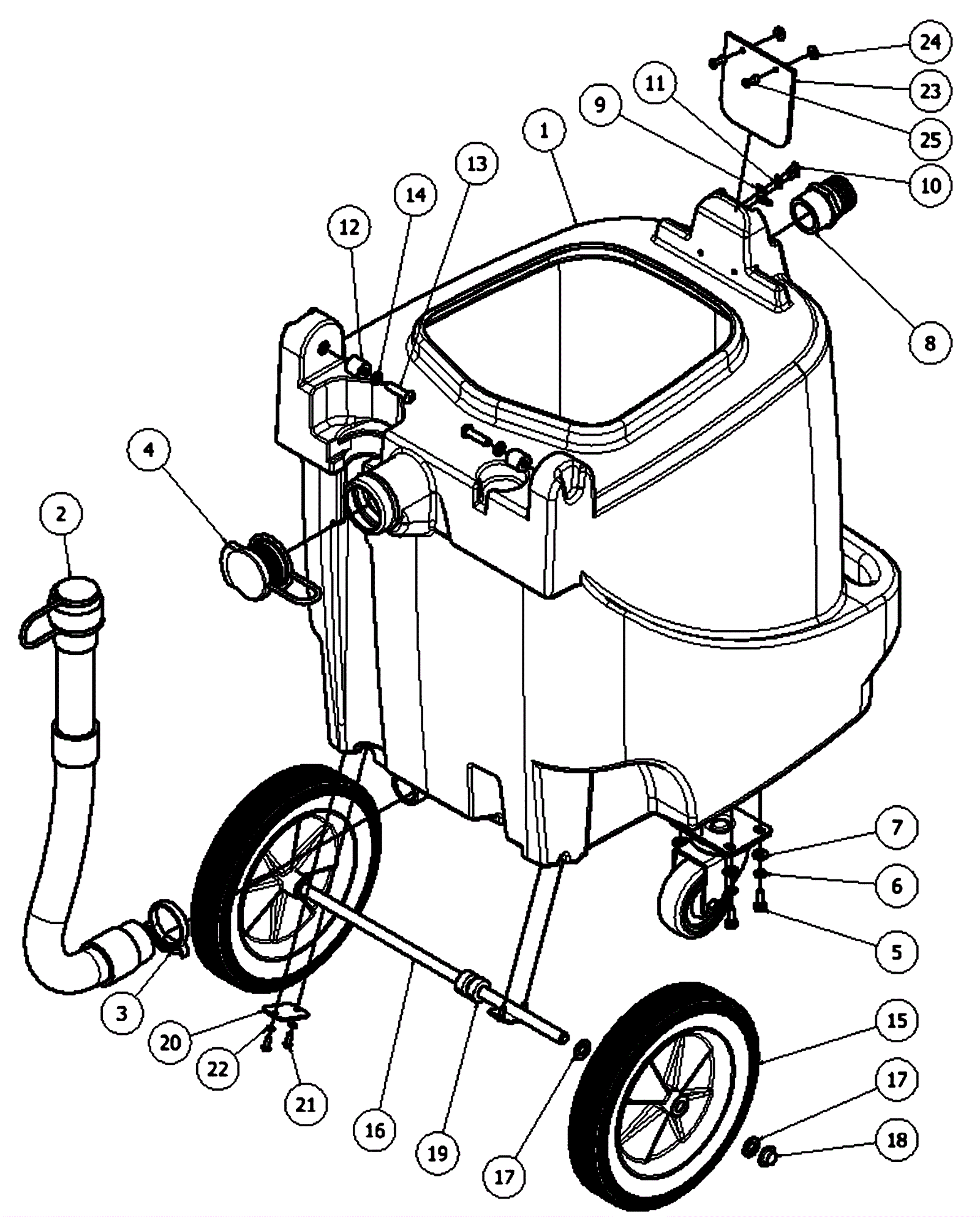

WDV-18 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-4847 Recovery tank $214.59 1 usually ships 5-15 days
2 206-3840 Drain hose with cap $51.80 1 usually ships 5-15 days
3 206-4844 Plastic hose clamp $5.13 1 usually ships 5-15 days
4 206-4848 Drain hole plug $26.24 1 usually ships 5-15 days
5 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 4 ships same day
6 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
7 206-4820 Washer $2.85 4 usually ships 5-15 days
8 206-3255 Fitting $22.60 1 usually ships 5-15 days
9 206-4845 Rubber clamp $20.03 1 usually ships 5-15 days
10 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 2 ships same day
11 999-1083 Washer #8 internal star lock stainless steel $0.99 2 ships same day
12 206-4849 Nylon spacer $1.96 2 usually ships 5-15 days
13 999-1823 Screw 5/16-18 x 1 1/4 button head $0.99 2 ships same day
14 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
15a 206-0818 Drive wheel 10 x 1.75 inches $80.70 2 (standard) (before SN 120539) usually ships 5-15 days
15b 206-3569 10 inch wheel $55.95 2 (standard) (after SN 120540) usually ships 5-15 days
15c 206-6003 10 inch wheel kit (pkg of 2) $116.91 1 (optional) (includes 15d-15f) usually ships 1-5 days
15d 206-4851 Axle clamp $4.70 2 usually ships 5-15 days
15e 206-3569 10 inch wheel $55.95 2 usually ships 5-15 days
15f 206-1810 Nylon spacer Call for price 2 usually ships 5-15 days
16 206-4850 Wheel shaft $28.71 1 ships same day
17a 206-5049 Fiber washer $3.19 4 (before SN 120539) usually ships 5-15 days
17b 206-1810 Nylon spacer Call for price 2 (after SN 120540) usually ships 5-15 days
18 206-1120 Snap axle cap $7.69 2 usually ships 5-15 days
19 206-1287 1/2 inch clamp collar $5.60 2 ships same day
20 206-4851 Axle clamp $4.70 2 usually ships 5-15 days
21 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel $0.99 4 ships same day
22 999-0053 Washer #10 split lock plain finish $0.99 4 ships same day
23 206-4852 Water deflector $7.66 1 usually ships 5-15 days
24 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
25 206-4853 Rivet $1.96 2 usually ships 5-15 days
26 206-4854 Caster $71.80 1 usually ships 5-15 days
