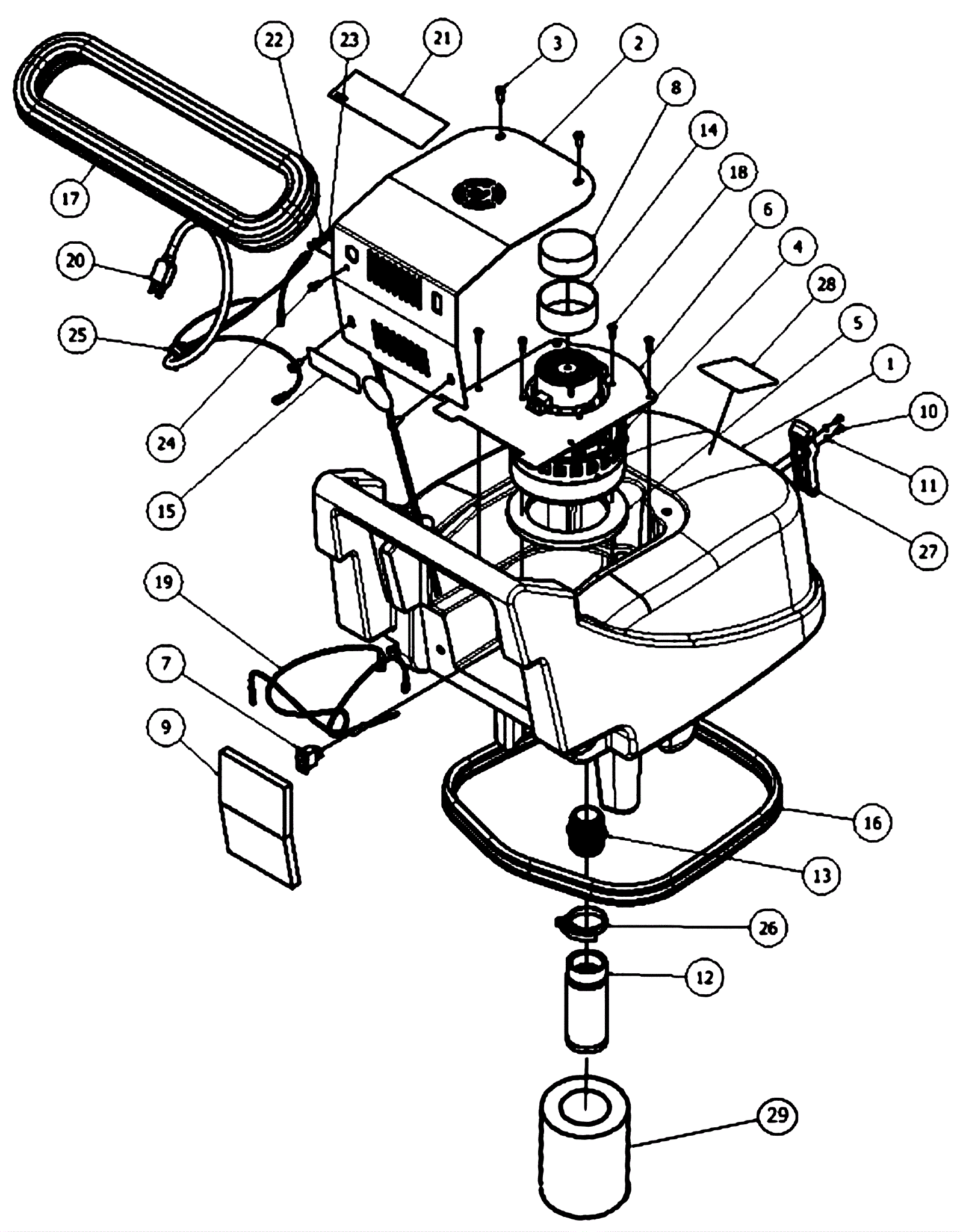

WDV-18 Cover Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-4832 Cover tank $119.02 1 usually ships 5-15 days
2 206-4833 Vacuum motor cover $59.07 1 usually ships 5-15 days
3 999-0395 Screw 1/4-20 x 5/8 button head socket plain finish $0.99 4 ships same day
4 206-2157 120V vacuum motor $194.31 1 usually ships 5-15 days
5 206-0065 Vacuum motor gasket $29.41 1 usually ships 5-15 days
6 206-4834 Vacuum motor plate $39.39 1 usually ships 5-15 days
7 206-0045 On/Off rocker switch $9.31 1 usually ships 5-15 days
8 206-4835 Cooling motor noise foam $5.22 1 usually ships 5-15 days
9 206-4836 Rear noise foam $5.47 1 usually ships 5-15 days
10 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 2 ships same day
11 999-1083 Washer #8 internal star lock stainless steel $0.99 2 ships same day
12 206-3244 Shut off float $141.03 1 usually ships 5-15 days
13 206-4837 Coupling fitting $5.82 1 usually ships 5-15 days
14 206-4838 Foam gasket strip $5.22 1 usually ships 5-15 days
15 206-1176 Serial number decal $2.66 1 usually ships 1-5 days
16 206-3246 Cover gasket $5.67 1 usually ships 5-15 days
17 206-4839 50 foot extension cord (yellow) $106.19 1 usually ships 5-15 days
18 999-0572 Screw 10-24 x 1/2 pan head self-tapping zinc $0.99 8 ships same day
19 206-4840 Harness wire $6.28 1 usually ships 5-15 days
20 206-4841 Pigtail cord $19.67 1 usually ships 5-15 days
21 206-4842 Warning decal $7.66 1 usually ships 5-15 days
22 999-1026 Washer #10 internal lock stainless steel $0.99 2 ships same day
23 999-0679 Nut 10-32 hex stainless steel $0.99 2 ships same day
24 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel $0.99 1 ships same day
25 206-4843 Strain relief bushing $4.50 1 usually ships 5-15 days
26 206-4844 Plastic hose clamp $5.13 1 usually ships 5-15 days
27 206-4845 Rubber clamp $20.03 1 usually ships 5-15 days
28 206-1293 Decal $5.23 1 usually ships 1-5 days
29 206-4846 Knock down foam filter $23.43 1 usually ships 5-15 days
