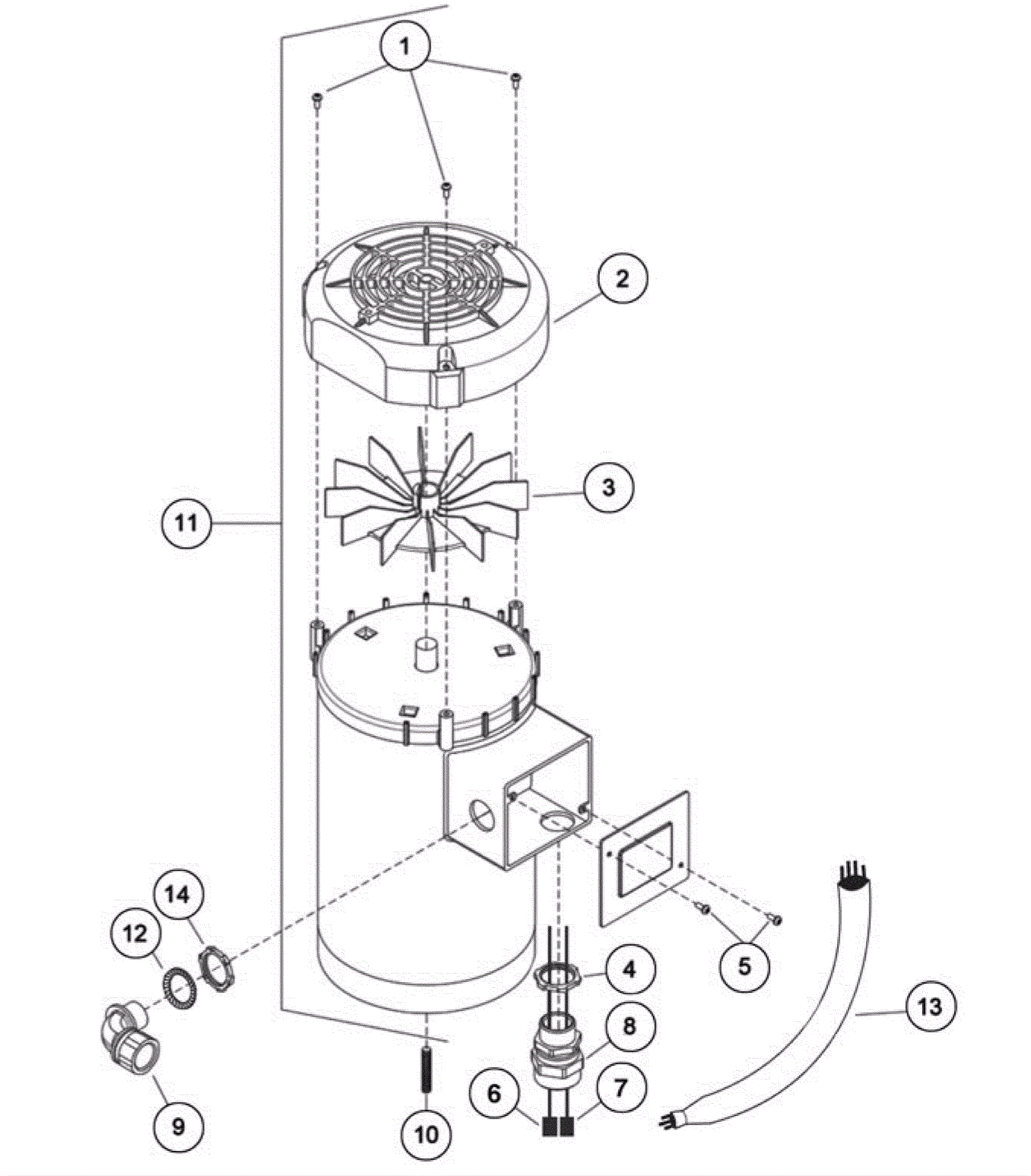

Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-6379 Screw 10-32 x 3/8 $16.31 3 usually ships 1-5 days
2 206-6380 Fan motor cover $331.41 1 usually ships 1-5 days
3 206-6381 Motor fan $176.08 1 usually ships 1-5 days
4 206-6377 Lock nut $16.89 2 usually ships 1-5 days
5 206-6382 Screw $23.36 2 usually ships 1-5 days
6 206-6383 Blue plug cord 100-120V $45.73 1 usually ships 1-5 days
7 206-6384 Black plug cord 100-120V $45.73 1 usually ships 1-5 days
8 206-6370 Wire mount $70.16 1 usually ships 1-5 days
9 206-6385 Elbow 3/4 inch $114.28 1 usually ships 1-5 days
10 206-6386 Socket set screw $22.19 1 usually ships 1-5 days
11 206-6344 Motor $1,750.12 1 (includes 1-3) usually ships 1-5 days
12 206-6387 Washer 3/4 inch serrated $23.07 1 usually ships 1-5 days
13 206-6360 Main handle 7 conductor harness $142.22 1 usually ships 1-5 days
14 206-6388 Lock nut 1/2 inch $16.59 1 usually ships 1-5 days
