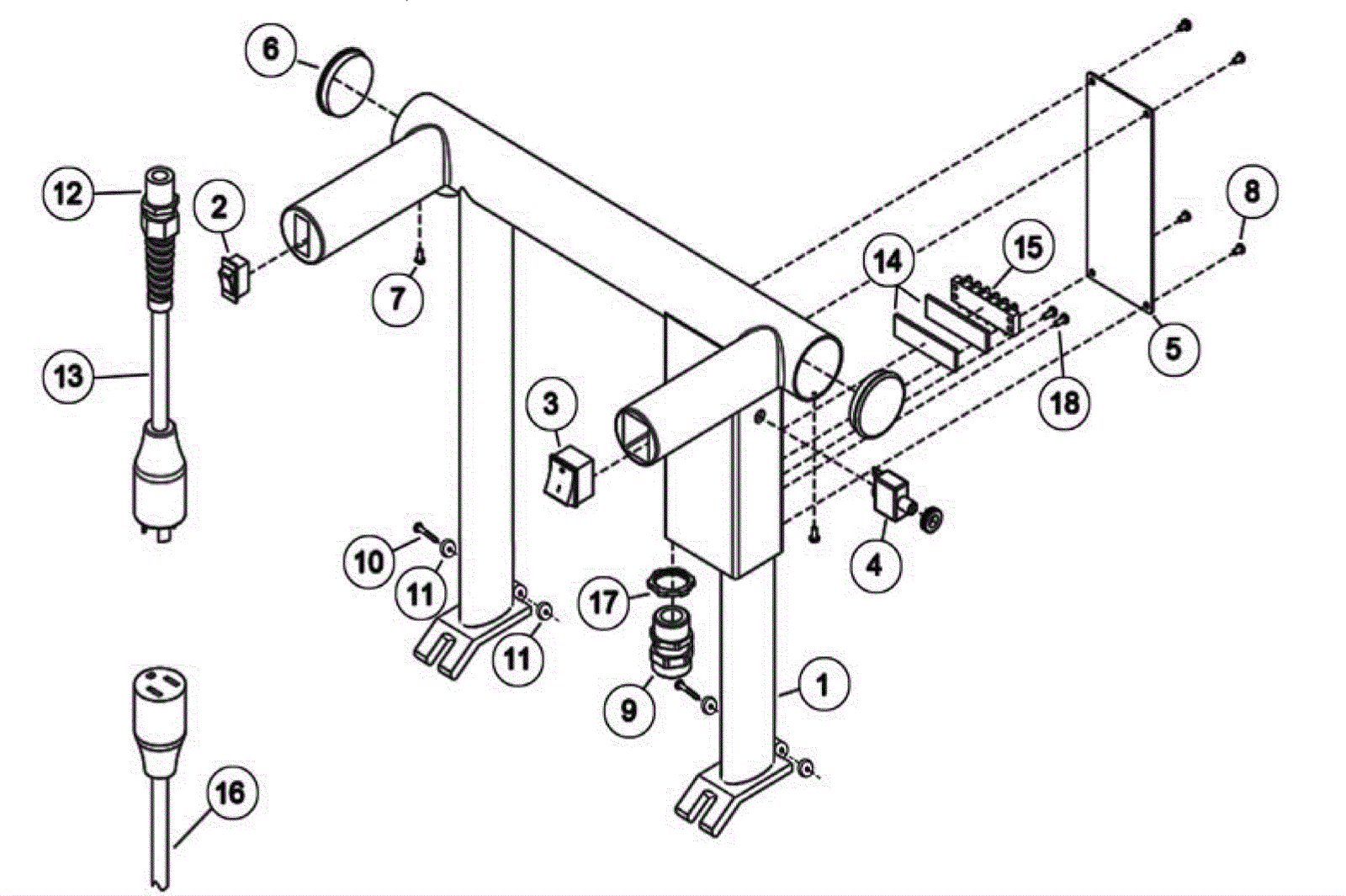

Upper Handle Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1a 206-6359 Upper handle assembly $1,867.80 1 usually ships 1-5 days
1b 206-6360 Main handle 7 conductor harness $142.22 1 usually ships 1-5 days
2a 206-6361 Double pole rocker switch $62.81 1 usually ships 1-5 days
2b 206-6362 Sprayer switch harness $48.07 1 usually ships 1-5 days
3a 206-6363 On/off double pole rocker switch $44.25 1 usually ships 1-5 days
3b 206-6364 On/off switch harness $46.62 1 usually ships 1-5 days
4 206-6365 125/250vac breaker 20amp 32vdc $44.55 1 usually ships 1-5 days
5 206-6366 Cover plate $105.46 1 usually ships 1-5 days
6 206-6367 Handle tube cap $25.72 2 usually ships 1-5 days
7 206-6368 Screw $16.89 2 usually ships 1-5 days
8 206-6369 Screw 8-32 x 1/4 inch $17.79 4 usually ships 1-5 days
9 206-6370 Wire mount $70.16 1 usually ships 1-5 days
10 206-6371 Screw 3/8-16 x 1 1/4 inch $19.84 2 usually ships 1-5 days
11 206-6358 Washer nylon $19.84 4 usually ships 1-5 days
12 206-6372 Power cord strain relief $43.08 1 usually ships 1-5 days
13 206-6373 110V pigtail cord $142.52 1 usually ships 1-5 days
14 206-6374 Velcro terminal switch $21.01 1 usually ships 1-5 days
15 206-6375 Terminal switch $55.44 1 usually ships 1-5 days
16 206-6376 Power cord 50 feet $437.92 1 usually ships 1-5 days
17 206-6377 Lock nut $16.89 1 usually ships 1-5 days
18 206-6378 Screw $17.49 2 usually ships 1-5 days
