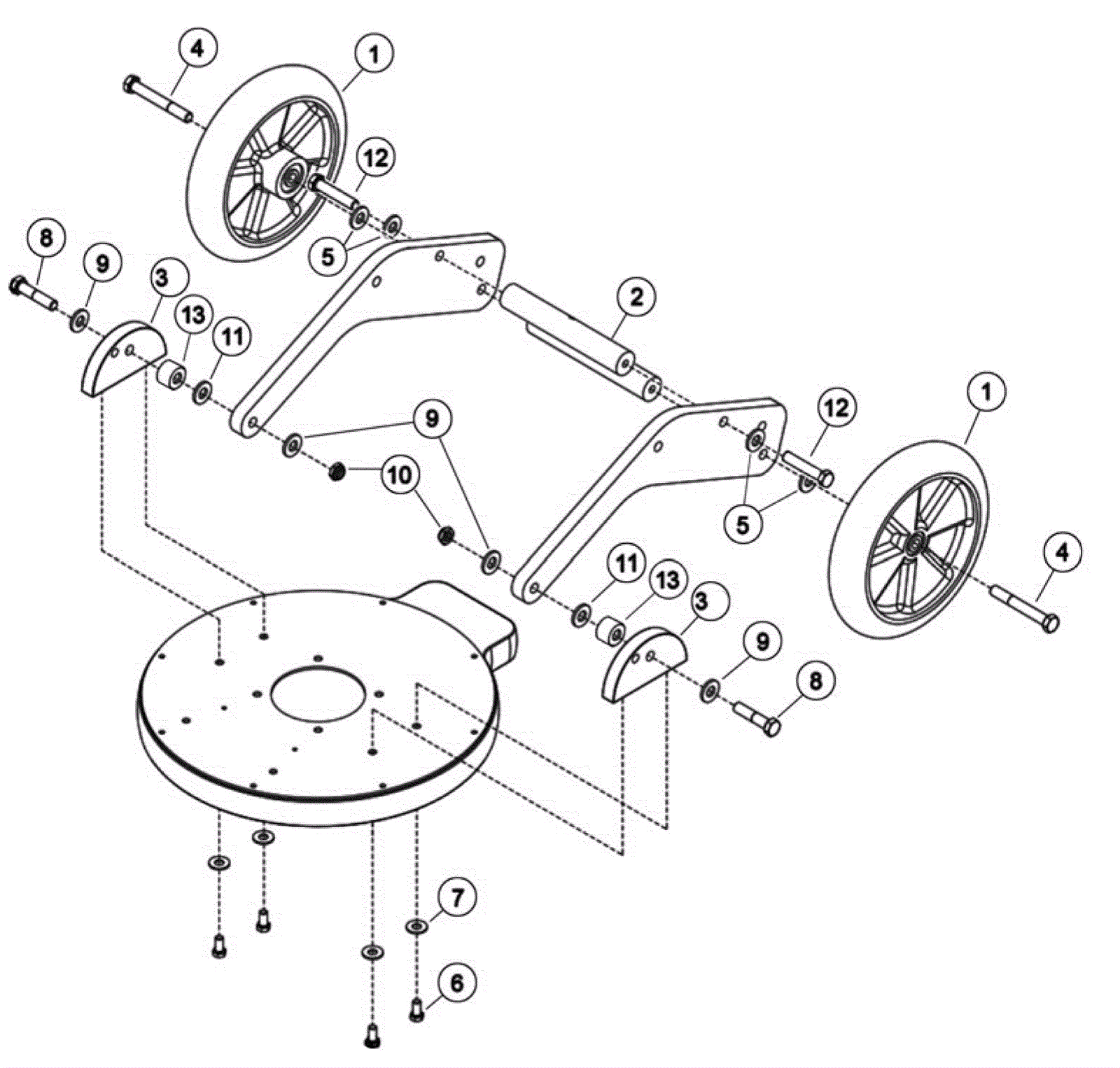

Wheel Kit Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-6345 10 inch wheel $255.51 2 usually ships 1-5 days
2 206-6346 Rod $22.48 2 usually ships 1-5 days
3a 206-6347 Left ear with pin $219.84 1 usually ships 1-5 days
3b 206-6348 Right ear with pin $219.84 1 usually ships 1-5 days
4 206-6349 Screw 1/2-13 x 3-3/4 inch $22.48 2 usually ships 1-5 days
5 206-6317 Washer plastic $16.02 4 usually ships 1-5 days
6 206-6338 Screw 3/8-16 x 3/4 inch $17.19 4 usually ships 1-5 days
7 206-6339 Washer $16.31 4 usually ships 1-5 days
8 206-6350 Screw 1/2-13 x 2-1/4 inch $20.43 2 usually ships 1-5 days
9 206-6317 Washer plastic $16.02 4 usually ships 1-5 days
10 206-6316 Nut hex lock $16.02 2 usually ships 1-5 days
11 206-6351 Washer nylon $19.55 2 usually ships 1-5 days
12 206-6315 Screw 1/2-13 x 2 inch $20.43 2 usually ships 1-5 days
13 206-6352 Bushing 1 x 1/2 plastic $31.91 2 usually ships 1-5 days
