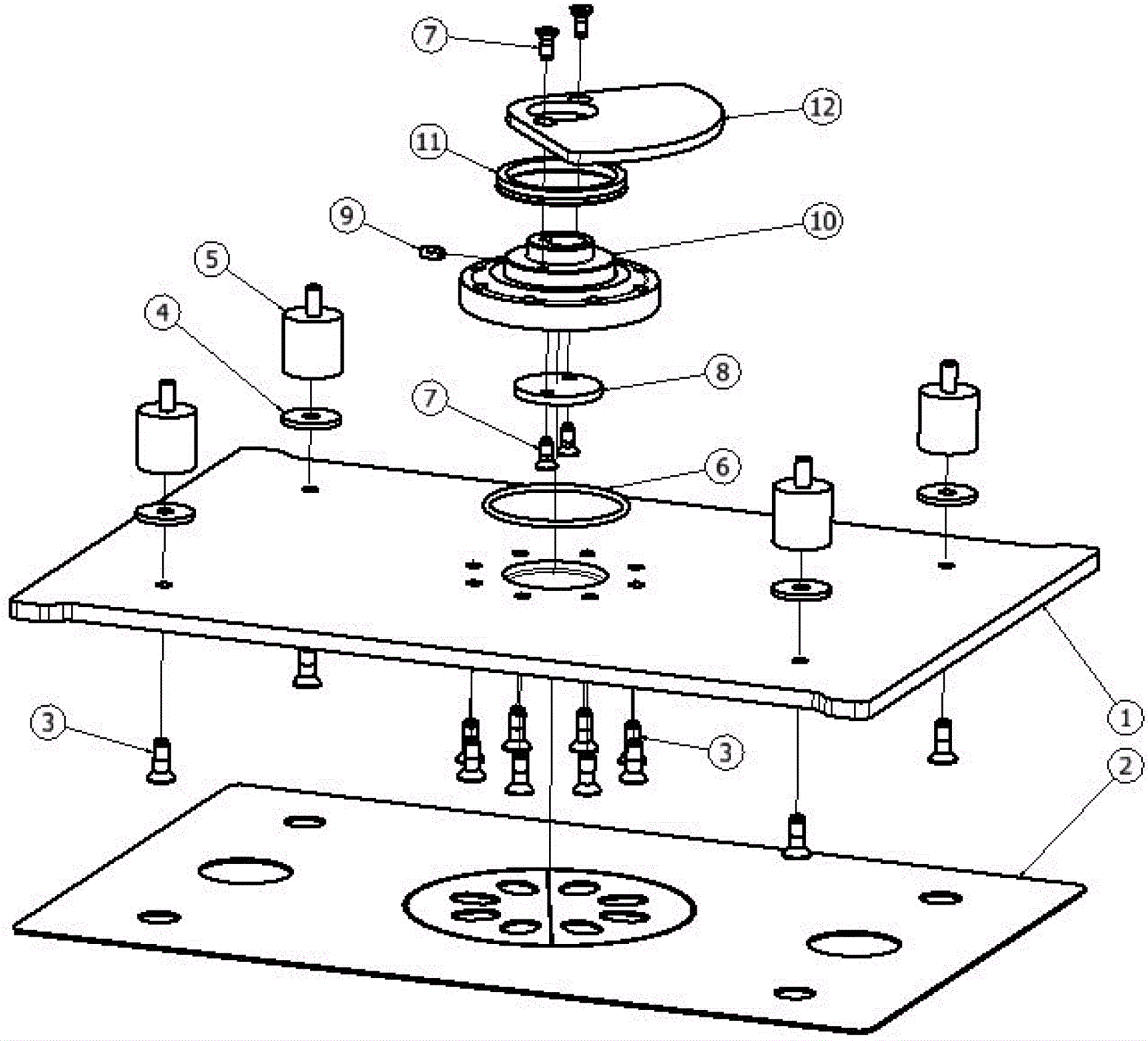

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
206-1680
|
20 inch gen 2 orbital plate (OBSOLETE) |
1 |
(after SN 127075) |
|
1b |
206-4043
|
Orbital plate |
1 |
(before SN 127076) |
|
2 |
206-3359
|
Mightylok pad |
1 |
|
|
3 |
999-1826
|
Screw 5/16-18 x 7/8 flat head socket stainless steel |
12 |
|
|
4 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
5 |
206-3366
|
Isolator mount |
4 |
|
|
6 |
206-3367
|
O ring |
1 |
(after SN 127075) |
|
7 |
999-1824
|
Screw 1/4-20 x 5/8 flat head socket stainless steel |
4 |
|
|
8 |
206-1681
|
Bearing plate retainer |
1 |
|
|
9 |
206-3480
|
Screw 1/4-20 x 1/2 set stainless steel |
1 |
|
|
10 |
N/A
|
Not available |
1 |
(bearing assembly) (only available in KIT3) |
|
11 |
206-5473
|
Bearing seal |
1 |
(after SN 127075) |
|
12 |
206-3481
|
20 inch balance plate |
1 |
|
|
KIT1 |
206-1682
|
Plate kit |
1 |
(after SN 127075) (includes 1a, 2) |
|
KIT2 |
206-6019
|
Isolator kit |
1 |
(after SN 127075) (includes 3-5) |
|
KIT3 |
206-1683
|
Bearing kit |
1 |
(after SN 127075) (includes 6-11) |
|
KIT4 |
206-1684
|
Lower orbital head kit |
1 |
(before SN 127076) (includes 1b-2) |
|
KIT5 |
206-6019
|
Isolator kit |
1 |
(before SN 127076) (includes 3-5) |
|
KIT6 |
206-3479
|
Replacement bearing kit |
1 |
(before SN 127076) (includes 7-10) |
|
KIT7 |
206-1684
|
Lower orbital head kit |
1 |
(used to convert to new style) |
|
