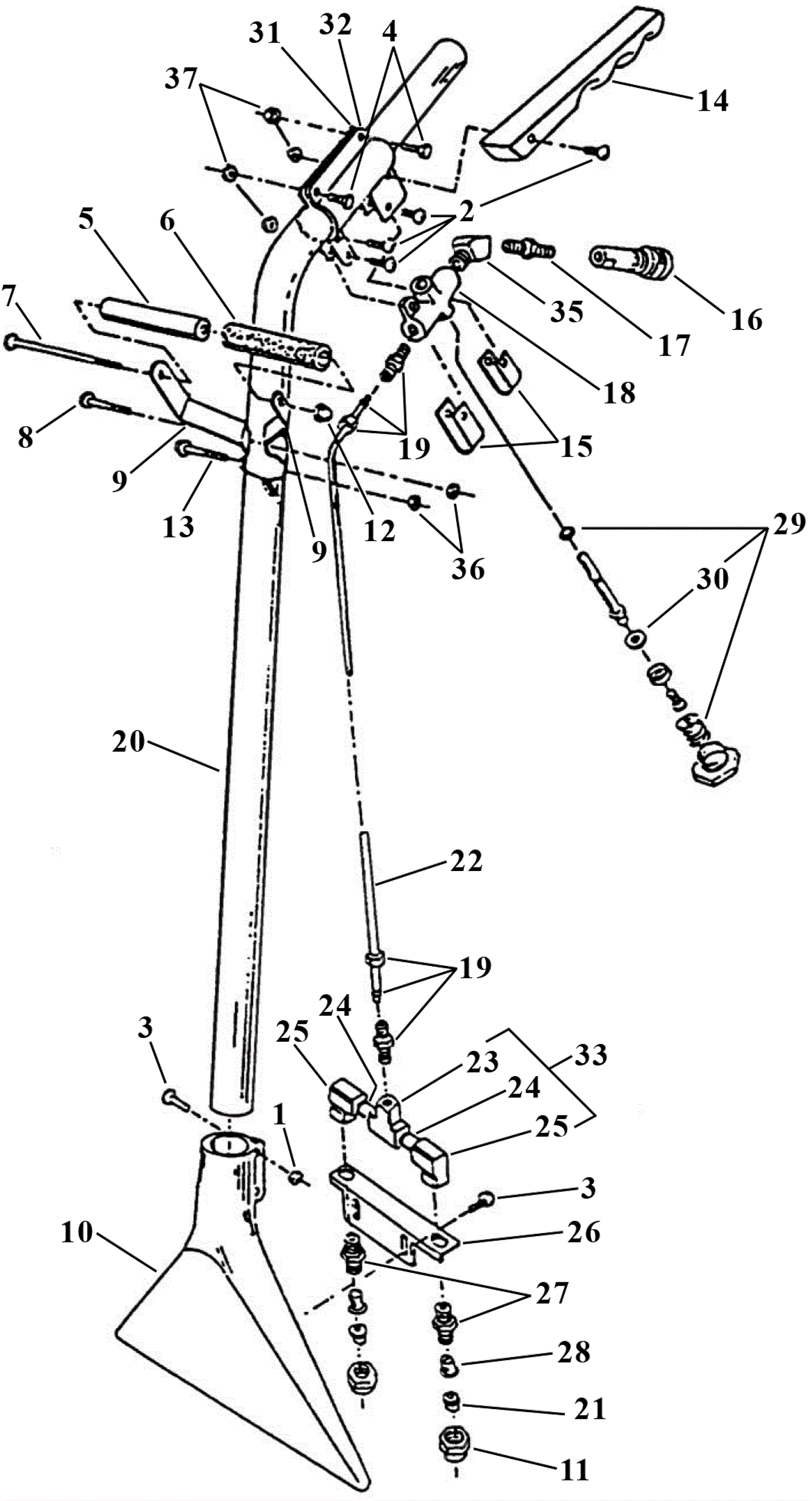

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0609
|
Nut 1/4-20 hex stainless steel |
2 |
|
|
2 |
206-2088
|
Screw 10-24 x 1 |
4 |
|
|
3 |
206-2089
|
Screw 1/4-20 x 5/8 (OBSOLETE) |
4 |
|
|
4 |
999-0705
|
Screw 10-24 x 3/4 pan head phillips stainless steel |
2 |
|
|
5 |
206-2090
|
Poly rod (OBSOLETE) |
1 |
|
|
6 |
206-2091
|
Grip (OBSOLETE) |
1 |
|
|
7 |
999-1126
|
Bolt 1/4-20 x 5 hex head hot dipped galvanized |
1 |
|
|
8 |
999-0510
|
Screw 1/4-20 x 1 pan head phillips zinc plated |
1 |
|
|
9 |
206-2092
|
Handle bracket (OBSOLETE) |
2 |
|
|
10 |
206-2093
|
Vacuum head (OBSOLETE) |
1 |
|
|
11 |
206-1237
|
Jet cap (OBSOLETE) |
2 |
|
|
12 |
999-1344
|
Nut 1/4-20 acorn stainless steel |
1 |
|
|
13 |
999-0633
|
Bolt 1/4-20 x 5/8 hex head stainless steel |
1 |
|
|
14 |
206-5004
|
Right switch lever (OBSOLETE) |
1 |
|
|
15 |
206-2094
|
Bracket valve support (OBSOLETE) |
2 |
|
|
16 |
206-0082
|
Quick connect female |
1 |
|
|
17 |
206-2095
|
Fitting (OBSOLETE) |
1 |
|
|
18 |
206-2096
|
Valve |
1 |
|
|
19 |
206-2097
|
Brass compression fitting (OBSOLETE) |
2 |
|
|
20 |
206-2098
|
Wand (OBSOLETE) |
1 |
|
|
21 |
206-1236
|
Brass jet |
2 |
|
|
22 |
206-2099
|
Tube (OBSOLETE) |
1 |
|
|
23 |
206-2100
|
Brass tee (OBSOLETE) |
1 |
|
|
24 |
206-2095
|
Fitting (OBSOLETE) |
2 |
|
|
25 |
206-2101
|
90 degree elbow (OBSOLETE) |
2 |
|
|
26 |
206-2102
|
Bracket (OBSOLETE) |
1 |
|
|
27 |
206-1235
|
Spray jet body |
2 |
|
|
28 |
206-1080
|
Strainer with check valve |
2 |
|
|
29 |
206-1232
|
Valve repair kit (OBSOLETE) |
1 |
(includes 30) |
|
30 |
206-2105
|
Valve washer (OBSOLETE) |
1 |
|
|
31 |
206-2103
|
Right hand valve bracket (OBSOLETE) |
1 |
|
|
32 |
206-2104
|
Left hand valve bracket (OBSOLETE) |
1 |
|
|
33 |
206-2106
|
Manifold jet (OBSOLETE) |
1 |
(includes 23-25) |
|
35 |
206-0087
|
Street fitting wl 1/4 npt |
1 |
|
|
36 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
37 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
6 |
|
|
