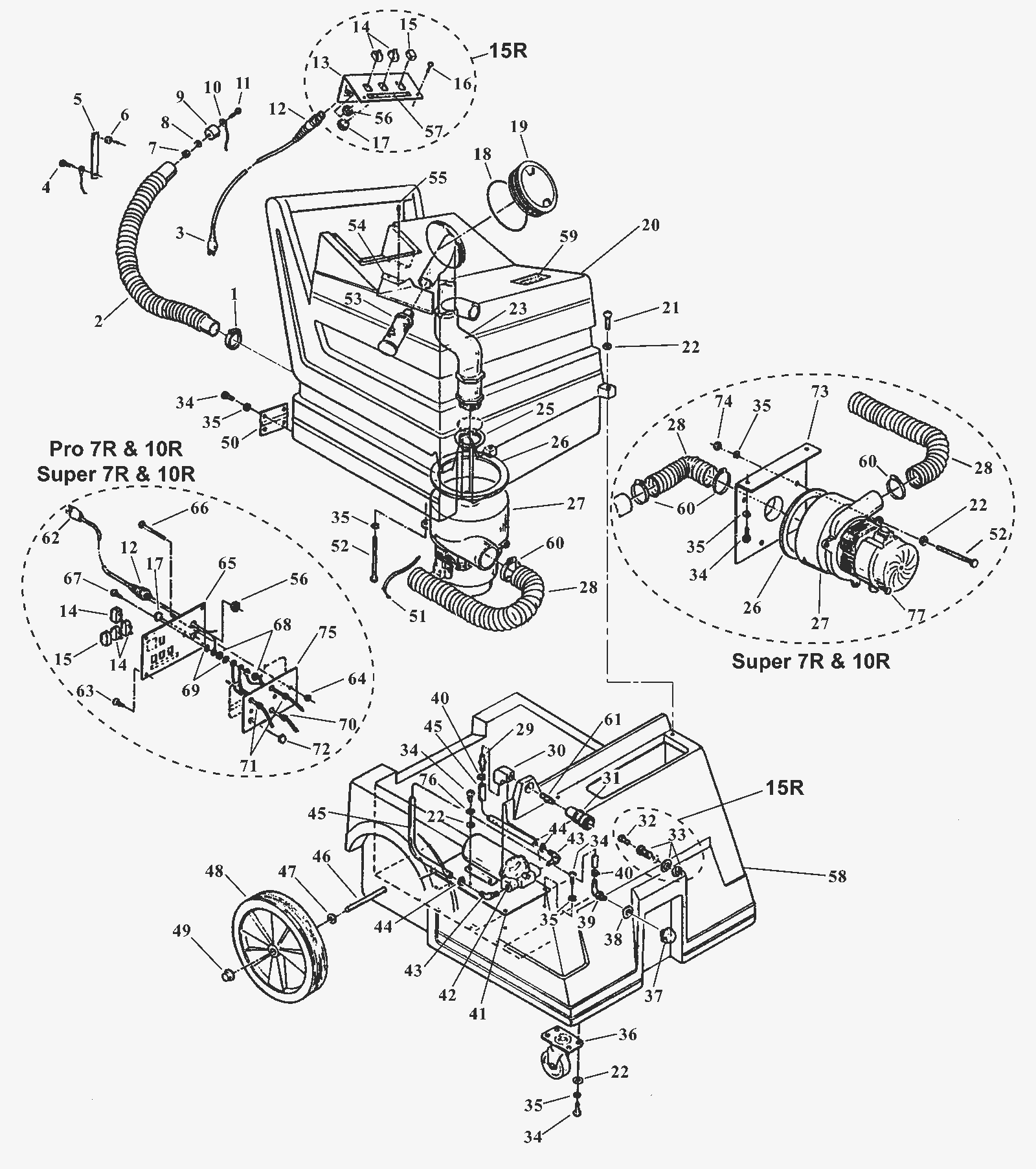

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-1111
|
Hose clamp |
1 |
|
|
2 |
206-1124
|
Drain hose (OBSOLETE) |
1 |
|
|
3a |
206-1103
|
14/3 power cord 50 foot (yellow) |
1 |
(15R) (OEM) |
|
3b |
991-5005
|
14/3 replacement power cord 50 foot (yellow) |
1 |
(OEM) |
|
4 |
999-0321
|
Screw 10-32 x 3/8 pan head slotted zinc plated |
1 |
|
|
5a |
206-1125
|
Strap (OBSOLETE) |
1 |
(7/10R) |
|
5b |
206-3081
|
Gasket |
1 |
(15R) |
|
6 |
206-1126
|
Fastener (OBSOLETE) |
1 |
|
|
7 |
206-1132
|
Nut |
1 |
|
|
8 |
206-3115
|
Washer 3/16 flat SAE stainless steel |
1 |
|
|
9 |
206-1127
|
Stopper |
1 |
|
|
10 |
206-1131
|
Drain strap |
1 |
|
|
11 |
206-1130
|
Screw |
1 |
|
|
12 |
206-1102
|
Strain relief |
1 |
|
|
13 |
206-2108
|
Control panel |
1 |
(15R) |
|
14 |
206-0045
|
On/Off rocker switch |
2 |
|
|
15 |
206-1221
|
Switch |
1 |
|
|
16 |
206-0052
|
Screw 10-24x1/2 thread pan machine (OBSOLETE) |
4 |
(15R) |
|
17 |
206-2109
|
Plug (OBSOLETE) |
1 |
|
|
18 |
N/A
|
Not available |
1 |
(cover gasket) |
|
19 |
206-2111
|
Cover (OBSOLETE) |
1 |
|
|
20a |
206-2112
|
Recovery tank (OBSOLETE) |
1 |
(7R) |
|
20b |
206-2113
|
Recovery tank (OBSOLETE) |
1 |
(10R) |
|
20c |
206-2114
|
Recovery tank (OBSOLETE) |
1 |
(15R) |
|
21a |
206-2115
|
Screw 1/4-20 x 1 (OBSOLETE) |
2 |
(7/10R) |
|
21b |
206-2116
|
Screw 1/4-20 x 1 1/2 (OBSOLETE) |
2 |
(15R) |
|
22 |
206-4820
|
Washer |
14 |
|
|
23a |
206-2117
|
Standpipe assembly (OBSOLETE) |
1 |
(7R) |
|
23b |
206-2118
|
Standpipe assembly (OBSOLETE) |
1 |
(10R) |
|
23c |
206-2119
|
Standpipe assembly (OBSOLETE) |
1 |
(15R) |
|
25 |
206-2120
|
Sealing nut (OBSOLETE) |
1 |
|
|
26 |
206-0065
|
Vacuum motor gasket |
1 |
|
|
27a |
206-5206
|
115V 3 stage vacuum motor |
1 |
(15R) |
|
27b |
206-2123
|
115V vacuum motor (OBSOLETE) |
1 |
(Pro 7/10R) |
|
27c |
206-2125
|
115V vacuum motor (OBSOLETE) |
2 |
(Super 7/10R) |
|
27d |
206-3531
|
Carbon brush (sold individually) |
2 |
(for 27a) |
|
27e |
206-1106
|
Carbon brush (sold individually) (OBSOLETE) |
2 |
(for 27b) |
|
27g |
206-2128
|
Carbon brush (sold individually) (OBSOLETE) |
2 |
(for 27c) |
|
28 |
206-0072
|
Exhaust hose (sold by the inch) (OBSOLETE) |
17 in |
|
|
29 |
206-0081
|
Fitting 3/8h x 1/4mpt (OBSOLETE) |
1 |
|
|
30 |
206-2101
|
90 degree elbow (OBSOLETE) |
1 |
|
|
31 |
206-0082
|
Quick connect female |
1 |
|
|
32 |
206-2129
|
Brass plug (OBSOLETE) |
1 |
(15R) |
|
33 |
206-3120
|
1/4 inch brass coupling |
2 |
(15R) |
|
34 |
999-0508
|
Screw 1/4-20 x 1/2 pan head phillips zinc plated |
24 |
|
|
35 |
999-0060
|
Washer 1/4 split lock plain finish |
15 |
|
|
36 |
206-2130
|
Caster wheel (OBSOLETE) |
2 |
|
|
37 |
206-5227
|
Strainer |
1 |
|
|
38a |
206-2131
|
Brass reducer |
1 |
(15R) |
|
38b |
206-3540
|
Nylon washer |
1 |
(7/10R) |
|
39 |
206-3093
|
Male barb elbow 1/4 to 3/8 inch |
1 |
(15R) |
|
39b |
206-1205
|
Jet body |
1 |
(7/10R) |
|
40 |
206-1228
|
Solution hose clamp |
2 |
|
|
41a |
206-2132
|
Pump mounting plate (OBSOLETE) |
1 |
(7/10R) |
|
41b |
206-2133
|
Pump mounting plate (OBSOLETE) |
1 |
(15R) |
|
42 |
206-5225
|
Pump |
1 |
|
|
43 |
206-1211
|
Male elbow |
2 |
|
|
44 |
206-0080
|
Hose clamp |
2 |
|
|
45 |
206-0117
|
3/8 inch solution hose (sold by the foot) |
3 ft |
(qty 3 needed for Super 7R/10R) |
|
46a |
206-2135
|
Wheel shaft (OBSOLETE) |
1 |
(7/10R) |
|
46b |
206-2136
|
Wheel shaft (OBSOLETE) |
1 |
(15R) |
|
47 |
999-1416
|
Washer 7/16 flat stainless steel |
2 |
|
|
48 |
206-0818
|
Drive wheel 10 x 1.75 inches |
2 |
|
|
49 |
206-1120
|
Snap axle cap |
2 |
|
|
50 |
206-2137
|
Tank hinge (OBSOLETE) |
2 |
|
|
51 |
206-1007
|
Clamp |
1 |
|
|
52a |
206-2138
|
Bolt (OBSOLETE) |
3 |
(7/10R) |
|
52b |
999-1123
|
Screw 1/4-20 x 4 flat head phillips stainless steel |
3 |
(15R) |
|
53a |
206-3244
|
Shut off float |
1 |
|
|
53b |
206-2175
|
Washer |
1 |
(Super 7R/10R) |
|
54a |
206-2139
|
Baffle (OBSOLETE) |
1 |
(Pro 7/10R) |
|
54b |
206-2140
|
Baffle (OBSOLETE) |
1 |
(15R) |
|
54c |
206-2141
|
Super baffle (OBSOLETE) |
1 |
(Super 7/10R) |
|
54d |
999-1684
|
Screw 8-32 x 3/4 phillips flat head thread cutting |
2 |
(for 54c) |
|
55a |
206-2142
|
Rivet |
2 |
(15R) |
|
55b |
206-1112
|
Pop rivet |
2 |
(7/10R) |
|
56 |
206-3539
|
Nut 1/2 NPT |
1 |
|
|
57 |
206-2143
|
Switch decal (OBSOLETE) |
1 |
(15R) |
|
58a |
206-2144
|
Solution tank |
1 |
(7/10R) |
|
58b |
206-2145
|
Solution tank |
1 |
(15R) |
|
59 |
206-3508
|
Add defoamer decal (OBSOLETE) |
1 |
|
|
60 |
206-5431
|
Clamp |
1 |
|
|
61a |
206-1230
|
Brass nipple |
1 |
(7/10R) |
|
61b |
206-2087
|
1/4 inch nipple |
1 |
(15R) |
|
62 |
206-2146
|
Cord (OBSOLETE) |
1 |
(7/10R) |
|
63 |
999-0321
|
Screw 10-32 x 3/8 pan head slotted zinc plated |
5 |
|
|
64 |
206-1132
|
Nut |
2 |
|
|
65 |
206-2147
|
Control panel (OBSOLETE) |
1 |
(7/10R) |
|
66 |
206-2148
|
Screw 10-32 x 3/8 (OBSOLETE) |
2 |
|
|
67 |
999-0520
|
Screw 10-24 x 1 pan head phillips stainless steel |
1 |
|
|
68 |
999-0960
|
Nut 10-24 hex stainless steel |
2 |
|
|
69 |
999-0053
|
Washer #10 split lock plain finish |
2 |
|
|
70 |
206-0245
|
Strain relief |
1 |
|
|
71 |
206-2149
|
Strain relief (OBSOLETE) |
1 |
|
|
72 |
206-2150
|
Button plug (OBSOLETE) |
1 |
|
|
73 |
206-2151
|
Vacuum motor mount (OBSOLETE) |
1 |
|
|
74 |
999-0190
|
Nut 1/4-20 hex plain finish |
3 |
|
|
75 |
206-2152
|
Switch plate (OBSOLETE) |
1 |
(7/10R) |
|
76a |
999-0053
|
Washer #10 split lock plain finish |
4 |
(7/10R) |
|
76b |
999-0060
|
Washer 1/4 split lock plain finish |
4 |
(15R) |
|
77 |
999-1350
|
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
1 |
|
|
N/S |
206-5203
|
12 inch 2 jet wand (OBSOLETE) |
1 |
|
|
N/S |
206-2176
|
15 foot solution hose |
1 |
|
|
N/S |
206-3808
|
Vacuum hose |
1 |
|
|
