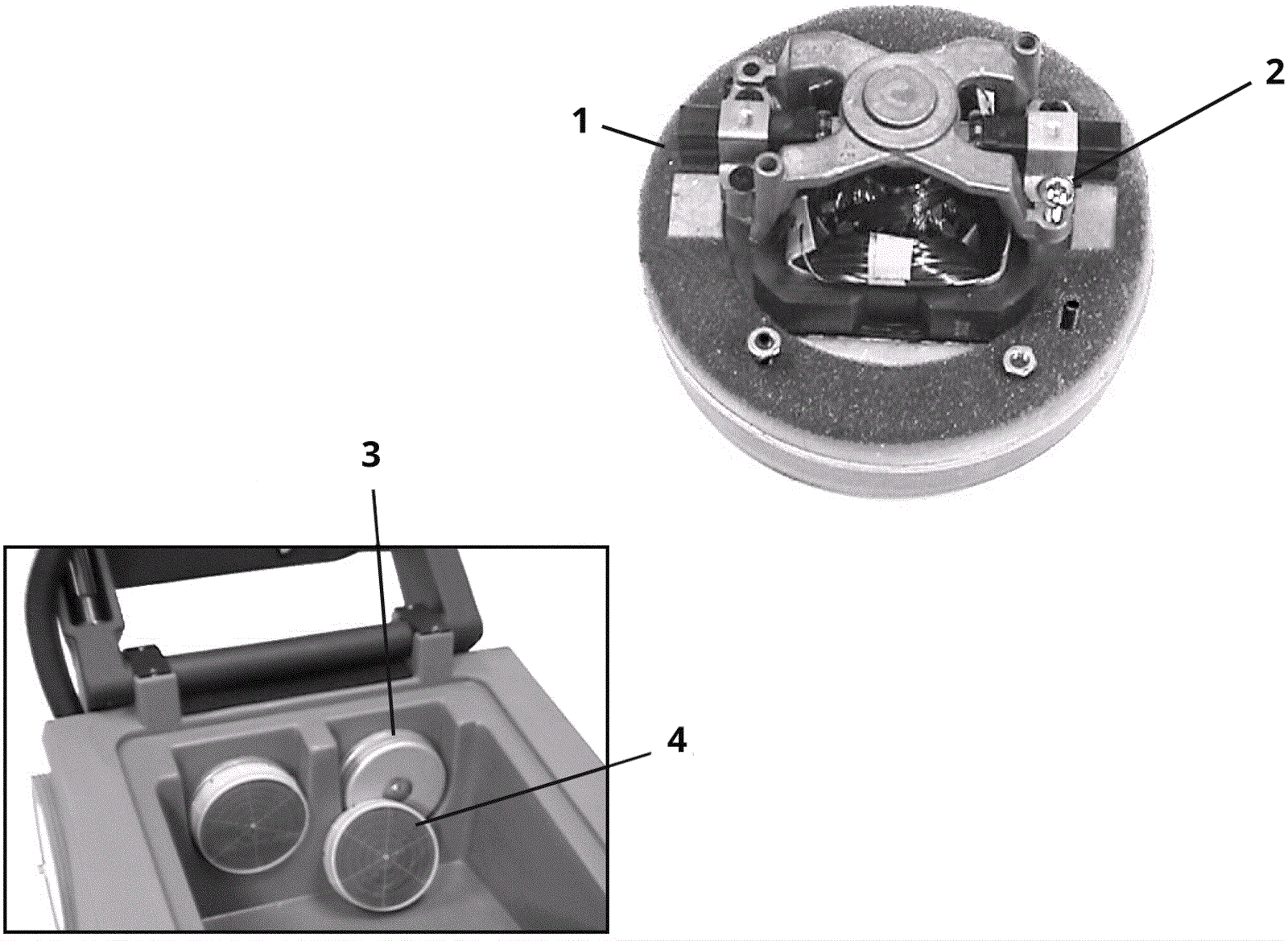

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-3013
|
Gasket |
2 |
|
|
2a |
206-3615
|
Motor mount screw |
4 |
(WAV-30) |
|
2b |
999-1350
|
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
4 |
(LAV-30) (CH86000) (230V only) |
|
3a |
206-3012
|
Vacuum motor |
2 |
|
|
3b |
206-1916
|
230V vacuum motor |
2 |
|
|
4 |
991-5119
|
Vacuum motor filter |
2 |
|
|
N/S |
206-3613
|
Lead assembly (green) (OBSOLETE) |
2 |
|
|
N/S |
206-3614
|
Lead assembly |
4 |
|
|
N/S |
206-0004
|
Duct seal gasket |
1 |
|
|
N/S |
999-1026
|
Washer #10 internal lock stainless steel |
2 |
(LAV-30) (CH86000) |
|
N/S |
999-0960
|
Nut 10-24 hex stainless steel |
4 |
(LAV-30) (CH86000) |
|
N/S |
999-0998
|
Washer #10 flat stainless steel |
4 |
(LAV-30) (CH86000) (230V only) |
|
N/S |
206-1173
|
Screw #10 x 3/4 AB hex head |
4 |
(CH86000) |
|
N/S |
206-3057
|
Connecting nut |
4 |
(LAV-30) |
|
