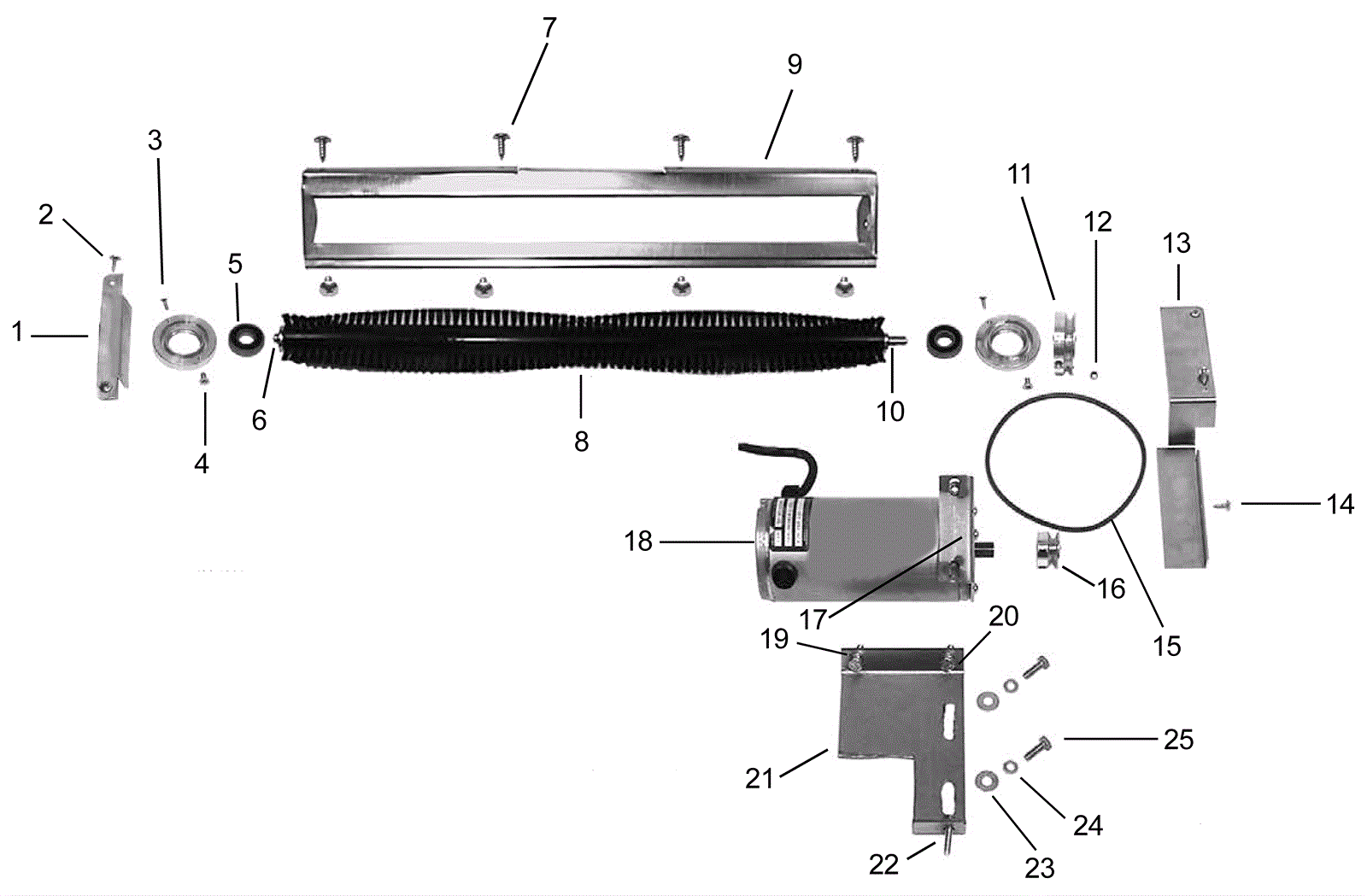

Brush Assembly

#PartDescription ReqNotesAvailability
1 206-3630 Shoe end 1
2 999-1544 Screw 8-32 x 1/2 truss head phillips stainless steel 3
3 206-0011 Bearing housing 2
4 999-0093 Screw 8-32 x 3/8 flat head slotted zinc plated 4
5 206-0009 Bearing 2
6 206-3017 Right hand shaft 1
7 999-1544 Screw 8-32 x 1/2 truss head phillips stainless steel 8
8a 206-0007 Brush 1 (WAV-30) (LAV-30)
8b 215-1120 Brush 1 (CH86000)
9 206-0016 Shoe brush 1
10 206-1135 Left hand shaft 1
11 206-0017 Pulley brush 1
12 206-5205 Set screw 2
13 206-3633 Belt guard 1
14 999-1544 Screw 8-32 x 1/2 truss head phillips stainless steel 4
15a 206-0010 Drive belt 1 (WAV-30) (LAV-30)
15b 215-1121 Belt drive 1 (CH86000)
16a 206-0816 Motor pulley 1
16b 206-5205 Set screw 2
17a 206-3631 Brush motor support 1 (WAV-30) (CH86000)
17b 206-3632 Brush motor bracket 1 (LAV-30)
17c 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel 4 (WAV-30)
17d 999-0481 Screw 12-24 x 5/8 pan head slotted zinc plated 1 (LAV-30) (CH86000)
18a 206-1145 115V brush motor 1
18b 206-1915 Carbon brushes 1
19 999-0060 Washer 1/4 split lock plain finish 3
20 206-3634 Nut 1/4-20 jack zinc 3
21 206-3632 Brush motor bracket 1
22 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated 3
23 206-4820 Washer 2
24 999-0060 Washer 1/4 split lock plain finish 2
25 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel 2
N/S 206-1134 Thread guard 2
N/S 206-1136 Screw 4-24 x 1/2 flat head 4 (used with guard)
N/S 206-1148 Shoe gasket 1
N/S 206-0229 Motor rectifier 1
N/S 206-0008 Brush assembly (includes left and right shafts) 1 (includes 5-6, 8 and 10)
