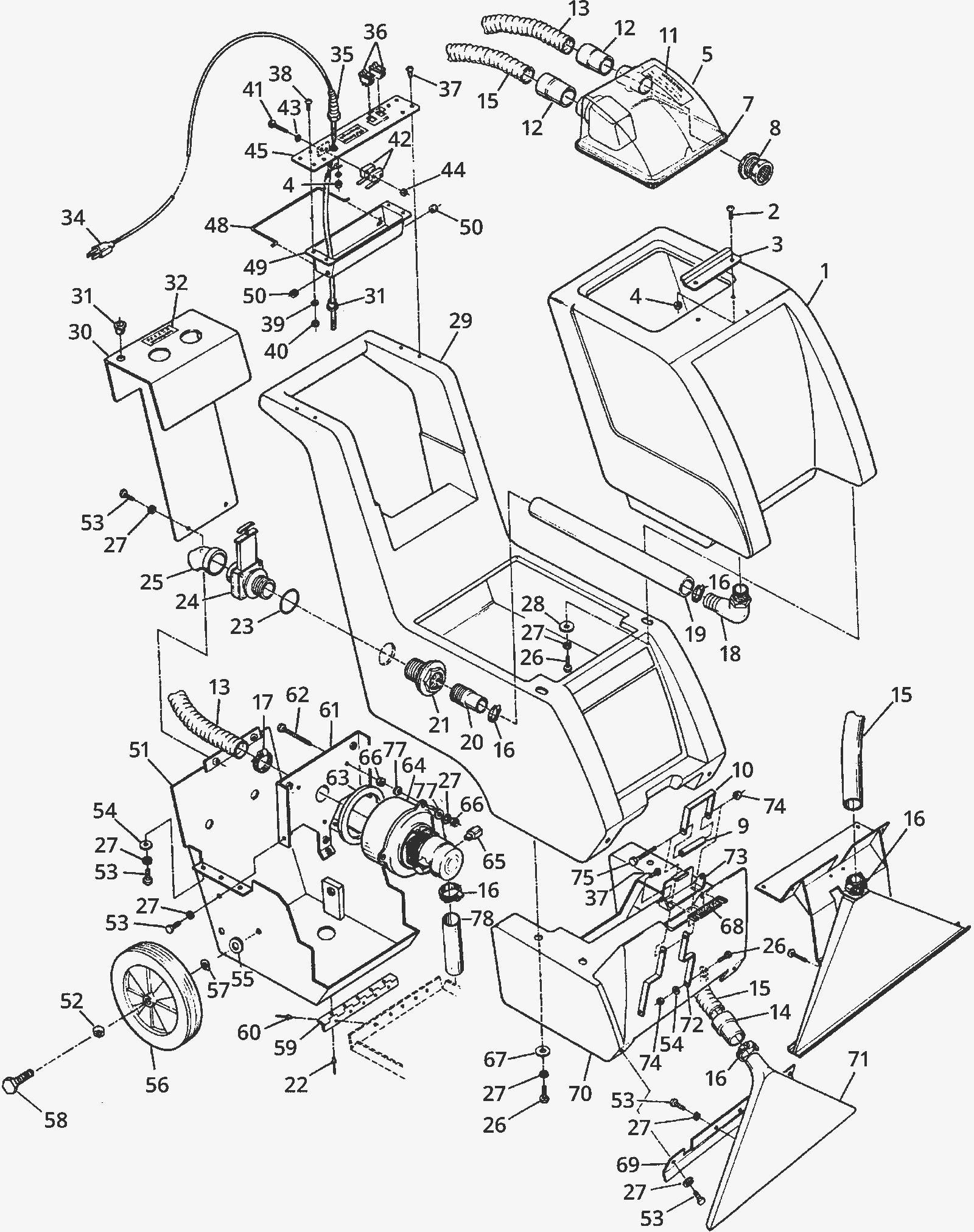

SCE-11 Tank and Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-4831 Recovery tank $263.51 1 (indigo blue) usually ships 5-15 days
2 999-1690 Screw 10-24 x 3/4 round head phillips stainless steel $0.99 2 ships same day
3 206-0859 Dome clasp $35.55 1 usually ships 5-15 days
4 999-0960 Nut 10-24 hex stainless steel $0.99 3 ships same day
5a 206-0864 Dome lid with gasket $440.85 1 usually ships 5-15 days
5b 206-3048 Dome lid without gasket $272.19 1 usually ships 5-15 days
7 206-0843 Dome gasket $21.44 1 usually ships 5-15 days
8 206-3505 Intake filter $52.52 1 usually ships 5-15 days
9 206-3506 Lift stop $34.73 1 usually ships 1-5 days
10 206-3507 Lift handle $32.39 1 usually ships 5-15 days
11 206-3508 Add defoamer decal (OBSOLETE) Call for price 1 usually ships 1-5 days
12 206-3051 1 1/2 inch hose cuff $18.05 2 usually ships 1-5 days
13a 206-1806 Hose 1 1/2 inch x 33 inch $28.28 1 (after SN 12504) usually ships 5-15 days
13b 206-3509 Hose 1 1/2 x 33 inch (OBSOLETE) Call for price 1 (before SN 120540) usually ships 1-5 days
14 206-3510 Hose cuff $35.96 1 usually ships 1-5 days
15a 206-3513 Drain hose - HOSE VACUUM REINFORCED 1.5ID 62IN $38.05 1 (after SN 12504) usually ships 5-15 days
15b 206-3511 Hose 1 1/2 x 62 inch (OBSOLETE) Call for price 1 (before SN 120540) usually ships 1-5 days
16 206-1007 Clamp $2.57 1 (after SN 12504) usually ships 1-5 days
17 206-5431 Clamp $6.63 2 usually ships 1-5 days
18 206-3512 90 degree adaptor $26.01 1 usually ships 5-15 days
19 206-1807 Hose $20.59 1 (after SN 12504) usually ships 5-15 days
20 206-3514 Adaptor $16.06 1 usually ships 5-15 days
21 206-3515 Fitting $38.88 1 usually ships 5-15 days
22 206-3516 Pop rivet $3.03 5 usually ships 1-5 days
23 217-0028 Dump valve gasket $7.97 1 usually ships 5-15 days
24a 217-0029 Dump valve $63.70 1 usually ships 5-15 days
24b 206-3518 Drain valve seal kit $41.20 1 (before SN 120540) usually ships 5-15 days
24c 206-3519 T handle $17.63 1 (before SN 120540) usually ships 5-15 days
25 206-1194 Elbow $14.99 1 usually ships 5-15 days
26 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 10 ships same day
27 999-0060 Washer 1/4 split lock plain finish $0.99 24 ships same day
28 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 2 ships same day
29 206-3520 Solution tank $221.34 1 usually ships 1-5 days
30a 206-1808 Back plate $40.15 1 (after SN 12504) usually ships 5-15 days
30b 206-3521 Back plate (OBSOLETE) $184.30 1 (before SN 120540) usually ships 1-5 days
31a 206-1809 Bushing Call for price 2 (after SN 12504) usually ships 5-15 days
31b 206-3522 Snap bushing $5.41 2 (before SN 120540) usually ships 1-5 days
32 206-3116 Warning disconnect decal $13.78 1 usually ships 1-5 days
34a 206-1103 14/3 power cord 50 foot (yellow) $204.37 1 (OEM) usually ships 5-15 days
34b 991-5005 14/3 replacement power cord 50 foot (yellow) $86.81 1 (NON-OEM) ships same day
35 206-1102 Strain relief $29.49 1 usually ships 5-15 days
36 206-0045 On/Off rocker switch $9.31 2 usually ships 5-15 days
37 999-1544 Screw 8-32 x 1/2 truss head phillips stainless steel $0.99 6 ships same day
38 999-1366 Screw 8-32 x 3/8 round head phillips stainless steel $1.32 4 ships same day
39 999-1083 Washer #8 internal star lock stainless steel $0.99 5 ships same day
40 999-1819 Nut 8-32 hex stainless steel $0.99 4 usually ships 1-5 days
41 999-1057 Screw 4-40 x 1-1/4 pan head phillips stainless steel $0.99 2 usually ships 1-5 days
42 206-3523 Momentary switch $30.87 2 usually ships 5-15 days
43 999-1691 Washer #4 external lock stainless steel $0.99 2 usually ships 1-5 days
44 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 2 ships same day
45 206-0798 Switch plate $150.35 1 usually ships 1-5 days
48 206-3525 Actuator bar $44.10 1 usually ships 1-5 days
49 206-3526 Switch housing $129.55 1 usually ships 1-5 days
50 206-3527 Grommet $2.71 2 usually ships 1-5 days
51 206-3528 Chassis $426.68 1 usually ships 1-5 days
52 206-1810 Nylon spacer Call for price 4 (after SN 12504) usually ships 5-15 days
53 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel $0.99 15 ships same day
54 206-4820 Washer $2.85 9 usually ships 5-15 days
55 206-5048 Wave washer $3.01 2 ships same day
56 206-0818 Drive wheel 10 x 1.75 inches $80.70 2 usually ships 5-15 days
57 206-5049 Fiber washer $3.19 2 usually ships 5-15 days
58 206-3529 Shoulder bolt (OBSOLETE) $17.86 2 usually ships 1-5 days
59 206-3099 Hinge $77.87 1 usually ships 1-5 days
60 206-3100 Pop rivet $2.71 7 usually ships 5-15 days
61 206-3530 Vacuum motor mounting bracket $144.57 1 usually ships 1-5 days
62 206-0097 Bolt 1/4-20 x 4 1/2 hex head tap $2.71 3 usually ships 1-5 days
63 206-0065 Vacuum motor gasket $29.41 1 usually ships 5-15 days
64 206-5206 115V 3 stage vacuum motor $706.85 1 usually ships 5-15 days
65 206-3531 Carbon brush (sold individually) $54.02 2 usually ships 1-5 days
66 999-0190 Nut 1/4-20 hex plain finish $0.99 7 ships same day
67 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 6 ships same day
68 206-3532 Gasket (OBSOLETE) $59.10 1 usually ships 1-5 days
69 206-3533 Vacuum shoe bracket $123.20 1 usually ships 1-5 days
70 206-3534 Shroud $260.61 1 usually ships 1-5 days
71 206-3535 Vacuum shoe $345.22 1 usually ships 5-15 days
72 206-3536 Lift bar $28.54 2 usually ships 1-5 days
73 206-3537 Handle bracket $99.77 1 usually ships 1-5 days
74 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
75 999-0707 Bolt 1/4-20 x 3 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
77 206-3376 Rubber washer (OBSOLETE) $2.86 6 usually ships 5-15 days
78a 206-1811 7 inch hose Call for price 1 (after SN 12504) usually ships 5-15 days
78b 206-3538 6 inch exhaust hose (OBSOLETE) $49.39 1 (before SN 120540) usually ships 1-5 days
N/S 206-0071 Clamp $6.57 2 ships same day
N/S 999-0053 Washer #10 split lock plain finish $0.99 1 ships same day
N/S 206-3539 Nut 1/2 NPT $5.26 1 usually ships 5-15 days
N/S 206-3524 Heat shrink $4.93 6 inch (before SN 120540) usually ships 1-5 days
