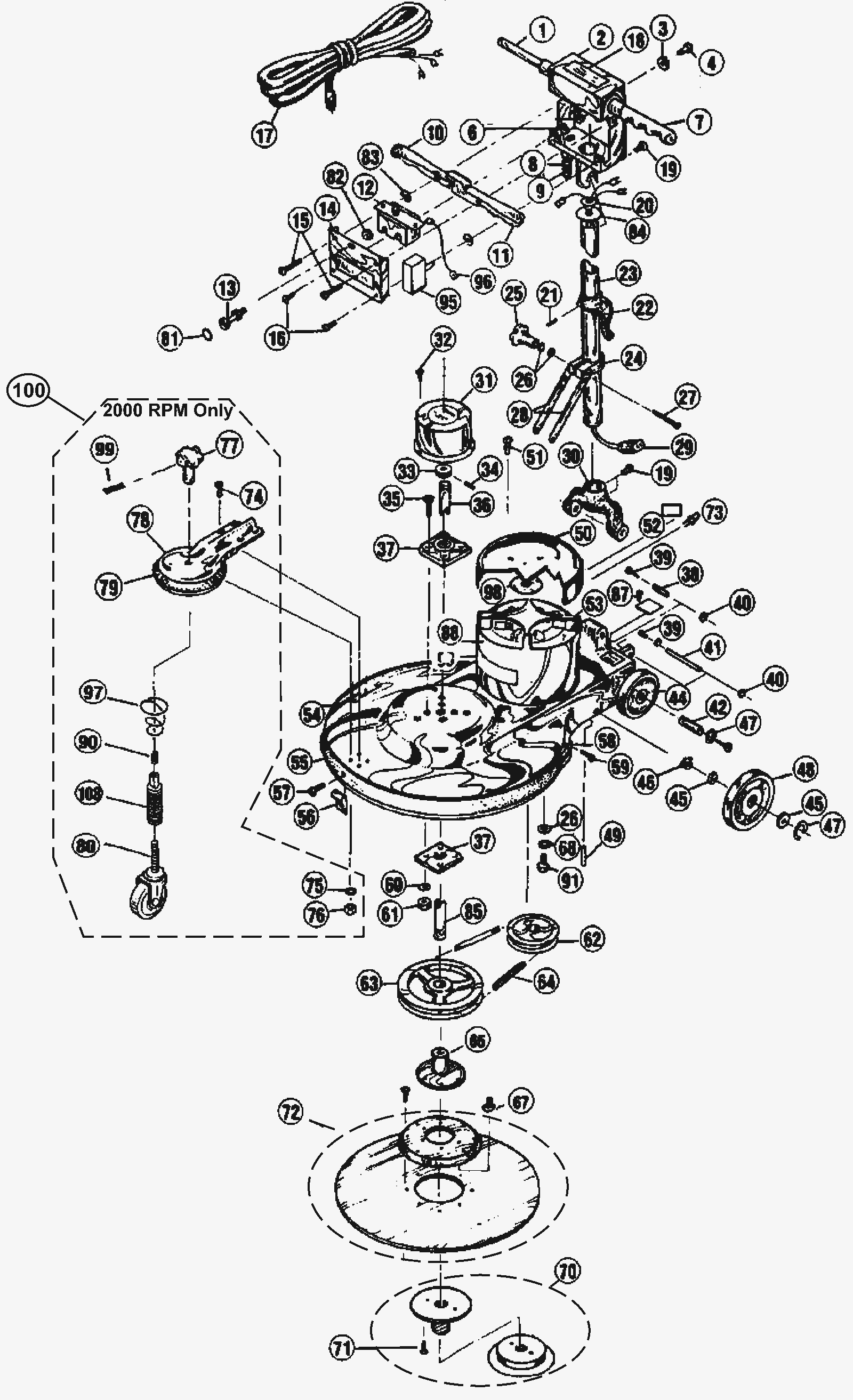

Entire Assembly - Aluminum Base

#PartDescription ReqNotesAvailability
1 206-5022 Handle nipple (OBSOLETE) 2
2 N/A Not available 1 (for svc order 206-5438)
3 206-5025 Bumper 1
4 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated 1
6 206-5019 Nut 10-32 elastic stop 1
7 206-5026 Handle grip (gray) 2
8 206-5029 Strain relief brass clamp (OBSOLETE) 1
9 206-5028 Strain relief assembly (OBSOLETE) 1
10 206-5004 Right switch lever (OBSOLETE) 1
11 206-5018 Left switch lever (OBSOLETE) 1
12 206-6020 Switch assembly (OBSOLETE) 1
13 206-5014 Interlock switch assembly (OBSOLETE) 1
14 N/A Not available 1 (for svc order 206-5438)
15 206-0385 Screw 10-32 x 1 3/4 oval head (OBSOLETE) 2
16 999-0074 Screw 10-32 x 1/2 round head slotted zinc plated 2
17 991-5005 14/3 replacement power cord 50 foot (yellow) 1
18 206-1244 Warning decal 1
19 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 3
20 206-5021 Strain relief bushing 1
21 206-5038 Screw 1/4-20 x 3/8 set 1
22 206-5032 Cord hook (OBSOLETE) 1
23 N/A Not available 1 (for svc order 206-5438)
24 206-5035 Handle clamp (OBSOLETE) 1
25 206-5039 Knob 1
26 999-0032 Washer 3/8 USS flat plain finish 2
27 999-1607 Bolt 5/16-18 x 2 1/2 carriage stainless steel 1
28 206-0391 Brace 2
29 206-0392 Handle cord assembly (OBSOLETE) 1
30 206-1247 Handle yoke (OBSOLETE) 1
31 206-5209 Dust cover (OBSOLETE) 1
32 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated 3
33 206-0394 Upper shaft collar 1
34 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish 1
35 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated 4
36 206-0395 Drive shaft 1
37 206-0396 Bearing block 2
38 206-0397 Yoke brace (OBSOLETE) 1
39 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 2
40 206-5054 Yoke rod snap ring 2
41 206-5044 Handle pivot shaft 1
42 206-6411 Wheel axle 2
44 206-5065 Wheel 4 inch (OBSOLETE) 2
45 206-5049 Fiber washer 12
46 206-5048 Wave washer 8
47 206-5064 Snap ring (OBSOLETE) 4
48 206-5001 5 inch wheel 2
49 999-1478 Screw 10-32 x 3/8 socket set stainless steel 1
50 206-3501 Motor cover 1
51 206-0233 Screw 8-32x1/2 3
52 206-0401 Brush indicator label 1
53a 206-5008 DC motor 115v 1
53b 206-2000 220V 1.5HP motor 1
54 206-3502 Base casting (OBSOLETE) 1
55 206-5005 Base bumper 1
56 206-5006 Bumper clips 3
57 206-5059 Screw 10-32 x 1/4 flat head phillips 3
59 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated 2
60 999-0032 Washer 3/8 USS flat plain finish 4
61 999-0170 Nut 3/8-16 hex plain finish 4
62 206-0404 Pulley motor 1
63a 206-0406 Pulley pad driver 1 (1500RPM)
63b 206-0448 Pulley pad driver 2000DC (OBSOLETE) 1 (2000RPM)
64a 206-0407 Belt 1500 1 (1500RPM)
64b 206-0450 Belt 2000DC (OBSOLETE) 1 (2000RPM)
65 206-0409 Flange flex driver 1
67 999-0348 Screw 1/4-20 x 1 flat head phillips zinc plated 6
68 206-0410 Washer 3/8 lock 4
70 996-0372 Big mouth pad holder (left hand thread) 1
71 206-0413 Screw 8 x 5/8 wood 3
72 206-0431 Flex pad assembly 19 diameter 1
73 206-0432 Light indicator brush wear 1
74 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated 4
75 999-0060 Washer 1/4 split lock plain finish 4
76 999-0190 Nut 1/4-20 hex plain finish 4
77 206-3021 Caster knob adjuster (OBSOLETE) 1
78 206-3503 Housing (OBSOLETE) 1
79 206-5098 Bumper (OBSOLETE) 1
80 206-3024 Caster (OBSOLETE) 1
81 206-0417 Sw. int. label 1
82 999-0143 Nut 3/8-24 hex plain finish 1
83 206-5016 Rubber washer (OBSOLETE) 2
84 206-5020 Handle tube washer 1
85 206-0418 Key 1
87 206-0420 Screw 2x1/4 drive (OBSOLETE) 2
90 206-3026 Screw 1/4 - 20 x 3/8 allen set 1
91 206-0423 Screw 3/8-16x1 hex head 4
95 206-5003 18amp circuit breaker 1
96 206-0424 Lead assembly circuit breaker (OBSOLETE) 1
97 206-3025 Spring 1
98 206-5043 Felt washer 1
99 206-5099 Screw 8-32 1/4 allen set (OBSOLETE) 2
100 206-5097 Pad pressure caster housing assembly (OBSOLETE) 1 (includes 74, 77-80, 90, 97 99, 108)
108 206-3027 Caster stud 1
N/S 999-0024 Washer 5/16 flat stainless steel 1
