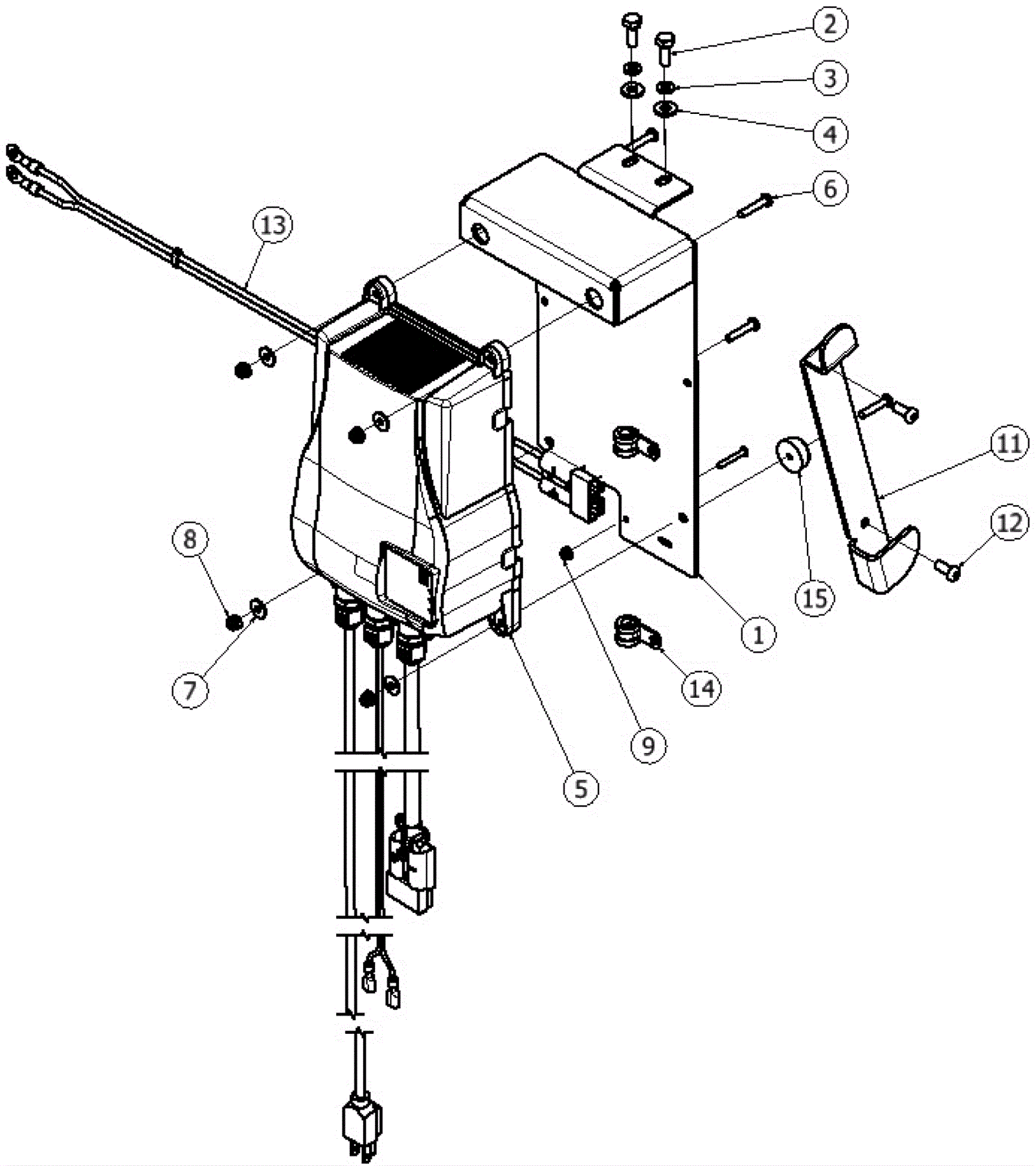

S-20 Onboard Charger Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-3499 Charger mounting bracket $57.20 1 usually ships 1-5 days
2 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 2 ships same day
3 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
4 206-4820 Washer $3.14 2 usually ships 13-21 days
5 206-3420 24V onboard charger $1,483.46 1 usually ships 13-21 days
6 999-9067 Screw 10-32 x 1 pan head phillips zinc plated $0.99 4 usually ships 1-5 days
7 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
8 999-1353 Nut 10-32 hex nylon lock insert stainless steel $0.99 4 ships same day
9 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 1 ships same day
10 206-5388 Screw $2.41 1 usually ships 1-5 days
11 206-3421 Cord bracket $20.12 1 usually ships 1-5 days
12 999-0395 Screw 1/4-20 x 5/8 button head socket plain finish $0.99 2 ships same day
13 206-3394 Battery charger harness $65.60 1 usually ships 13-21 days
14 206-3205 P clamp $3.92 2 usually ships 13-21 days
15 206-5025 Bumper $8.27 2 usually ships 13-21 days
