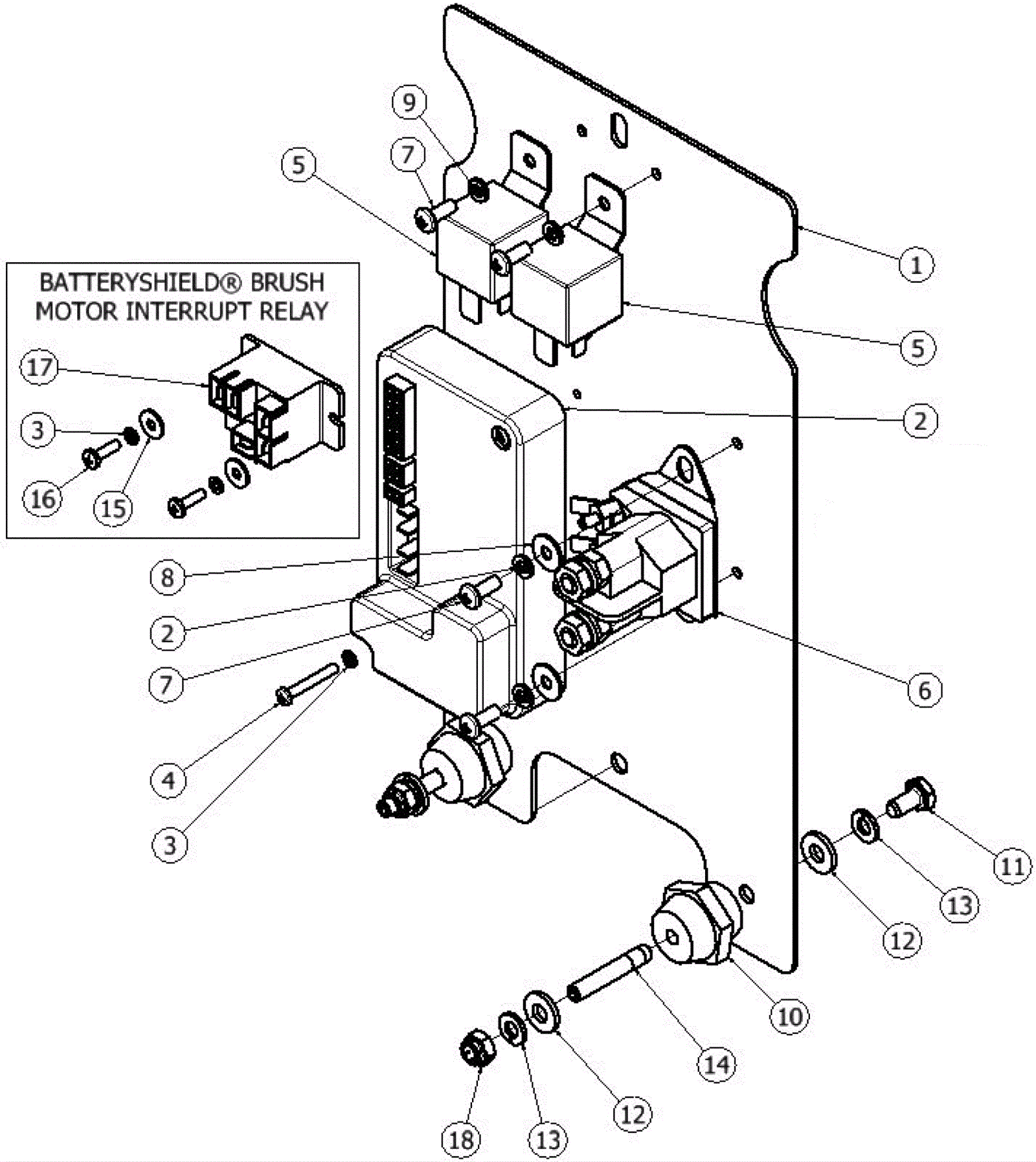

Electronics Assembly

#PartDescription ReqNotesAvailability
1 206-3497 Electrical panel 1
2 206-3498 I-drive controller 1 (not required on pad assist models)
3 206-5387 Washer 4
4 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2
5 206-3415 24V 70amp relay 2 (not required on orbital models)
6 206-3416 24V 100amp contactor 1
7 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel 4
8 999-0998 Washer #10 flat stainless steel 2
9 999-0053 Washer #10 split lock plain finish 4
10 206-3417 Insulated stand off 2
11 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel 4
12 206-4820 Washer 6
13 999-0060 Washer 1/4 split lock plain finish 6
14 206-3418 Screw 1/4-20 x 1 1/4 set zinc 2
15 999-1158 Washer #6 flat stainless steel 2
16 999-1021 Screw 6-32 x 1/2 pan head black zinc metal 2
17 206-3419 24V relay 1
18 206-4047 Nut 1/4-20 flex lock zinc 2
