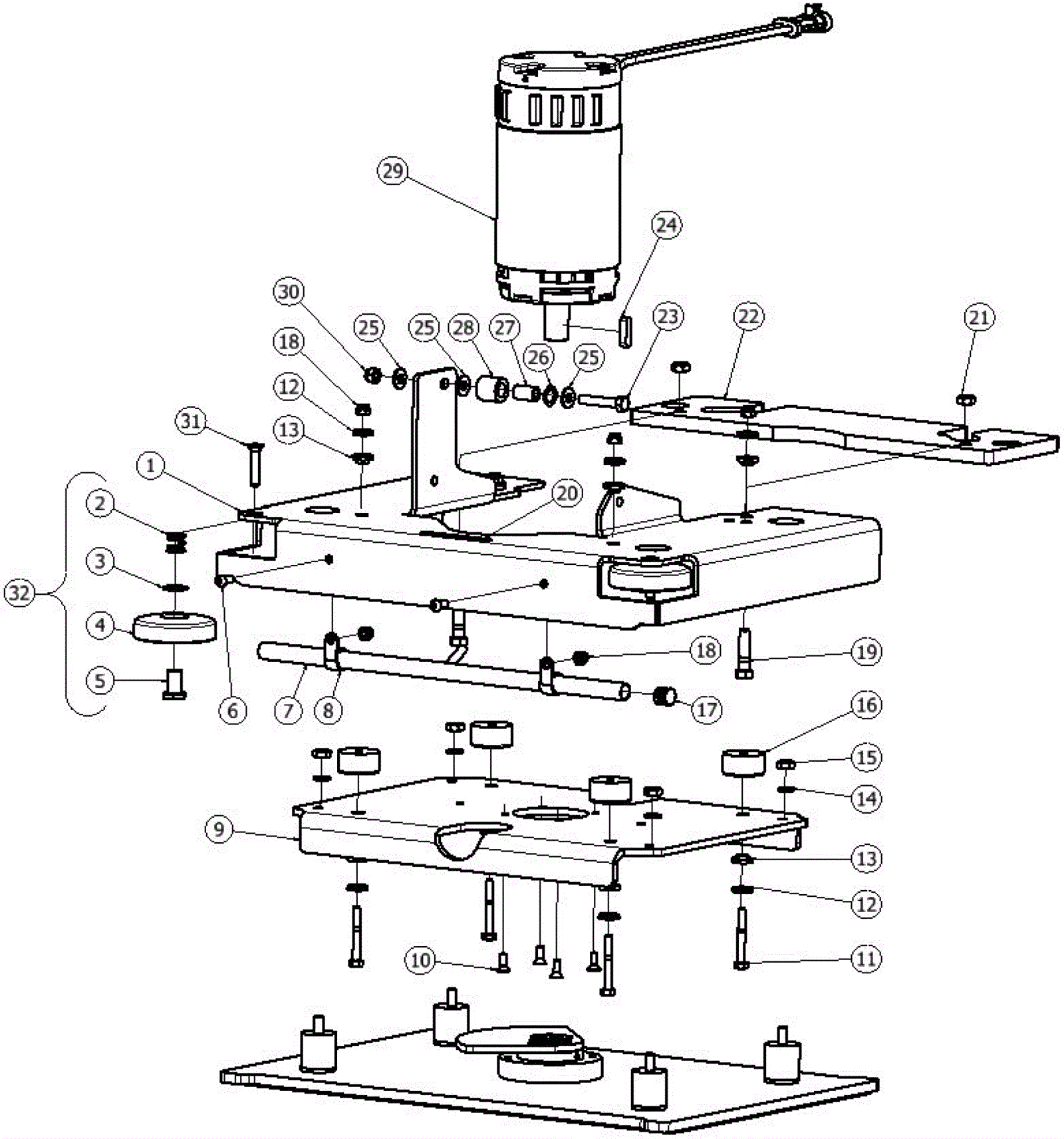

S-20 ORBITAL Upper Scrub Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-3475 Orbital head mounting bracket $198.76 1 usually ships 1-5 days
2 206-1598 Compression spring $11.00 2 usually ships 5-15 days
3 206-1599 Washer 1/2 inch nylon $2.95 2 usually ships 5-15 days
4 206-3274 Guide wheel $5.86 2 ships same day
5 206-1600 Guide wheel spacer $50.46 2 usually ships 5-15 days
6 999-0395 Screw 1/4-20 x 5/8 button head socket plain finish $0.99 2 ships same day
7 206-4041 Distribution tube $116.72 1 usually ships 5-15 days
8 206-3372 P clamp $3.69 2 usually ships 5-15 days
9 206-3476 Motor mounting plate $140.85 1 usually ships 5-15 days
10 999-1620 Screw M6-1 x 20mm flat head socket stainless steel $6.29 4 ships same day
11 999-0258 Bolt 1/4-20 x 2 hex head grade 5 zinc plated $0.99 4 ships same day
12 206-3376 Rubber washer (OBSOLETE) $3.15 8 usually ships 5-15 days
13 206-3373 Rubber bushing $12.14 8 ships same day
14 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
15 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
16 206-3313 Rubber spacer $8.31 4 ships same day
17 206-4042 Plug $6.24 2 usually ships 5-15 days
18 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 6 ships same day
19 999-1489 Screw 3/8-16 x 1 1/2 hex head stainless steel $1.72 2 (after SN 123985) ships same day
20 206-4040 Decal $31.84 1 usually ships 5-15 days
21 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 2 (after SN 123985) ships same day
22a 206-1679 Plate weight $145.66 1 (after SN 123985) usually ships 5-15 days
22b 206-3478 Weight plate $74.83 2 (before SN 123986) usually ships 1-5 days
23 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 1 ships same day
24 206-3329 Square keyway $3.51 1 usually ships 5-15 days
25 206-5233 Washer 5/16 x .040 flat $2.59 3 ships same day
26 206-3310 Washer 1/2 wave $2.59 1 ships same day
27 206-3315 Spacer $16.35 1 usually ships 5-15 days
28 206-3319 Plastic roller $11.17 1 ships same day
29 206-3320 24V brush motor $1,066.23 1 usually ships 5-15 days
30 999-0593 Nut 5/16-18 hex stainless steel $0.99 1 ships same day
31 999-1825 Screw 5/16-18 x 1 1/2 flat head socket SS $2.00 2 ships same day
32 206-1602 Wheel replacement kit $28.07 1 (after SN 123985) (includes 2-5) usually ships 5-15 days
33 206-4039 Carbon brush kit $153.95 1 usually ships 5-15 days
N/S 206-4830 14x20 green turf pads (pkg of 4) $493.86 1 ships same day
