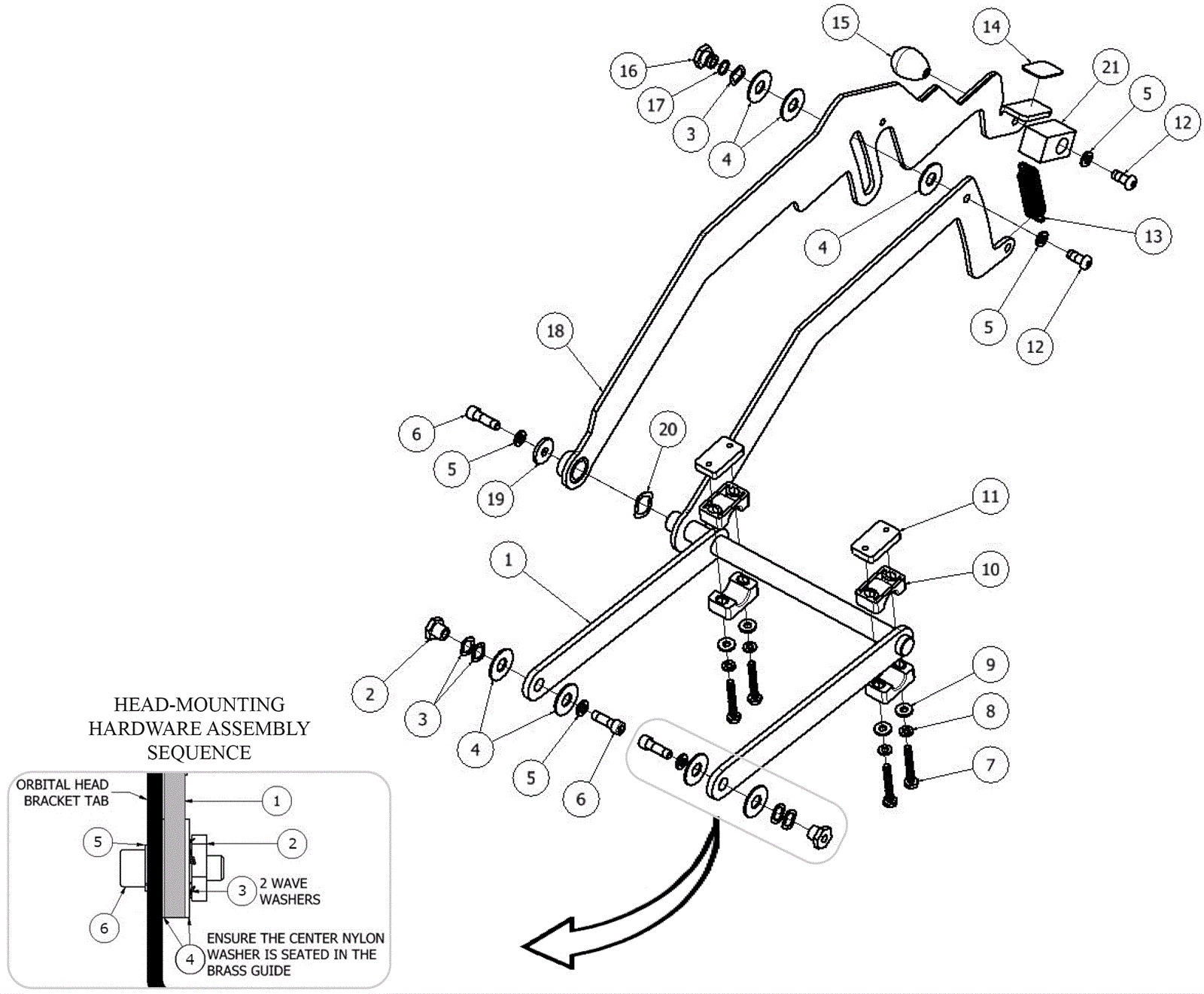

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-3458
|
Lift head bracket |
1 |
|
|
2 |
206-3463
|
Lever guide |
2 |
|
|
3 |
206-3310
|
Washer 1/2 wave |
5 |
|
|
4 |
206-3095
|
Washer thrust |
7 |
(qty 4 for disk and pad models) |
|
5 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
5 |
(qty 3 for disk and pad models) |
|
6 |
999-1822
|
Screw 5/16-18 x 1 socket cap stainless steel |
3 |
|
|
7 |
206-1672
|
Screw 1/4-20 x 1 3/4 hex head (OBSOLETE) |
4 |
|
|
8 |
999-0060
|
Washer 1/4 split lock plain finish |
4 |
|
|
9 |
206-4820
|
Washer |
4 |
|
|
10 |
206-3378
|
Plastic bail mount |
4 |
|
|
11 |
206-1673
|
Bracket bearing mount (OBSOLETE) |
2 |
|
|
12 |
999-1524
|
Screw 5/16-18 x 3/4 button head socket stainless steel |
2 |
|
|
13 |
206-3462
|
Extension spring |
1 |
|
|
14 |
206-3460
|
Foot grip decal |
1 |
|
|
15 |
206-3386
|
Knob |
1 |
|
|
16 |
206-3467
|
Lever guide with groove |
1 |
(orbital model) |
|
17 |
206-3468
|
O ring |
1 |
(orbital model) |
|
18 |
206-3459
|
Down pressure lever |
1 |
|
|
19 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
20 |
206-5445
|
Washer |
1 |
|
|
21 |
206-3466
|
Balance weight |
1 |
(orbital model) |
|
N/S |
206-5233
|
Washer 5/16 x .040 flat |
2 |
(disk and pad assist models) |
|
N/S |
206-3431
|
Spacer |
2 |
(disk and pad assist models) |
|
N/S |
999-0593
|
Nut 5/16-18 hex stainless steel |
2 |
(disk and pad assist models) |
|
KIT1 |
206-1674
|
Head lift mount kit (OBSOLETE) |
1 |
(includes 7-11) |
|
