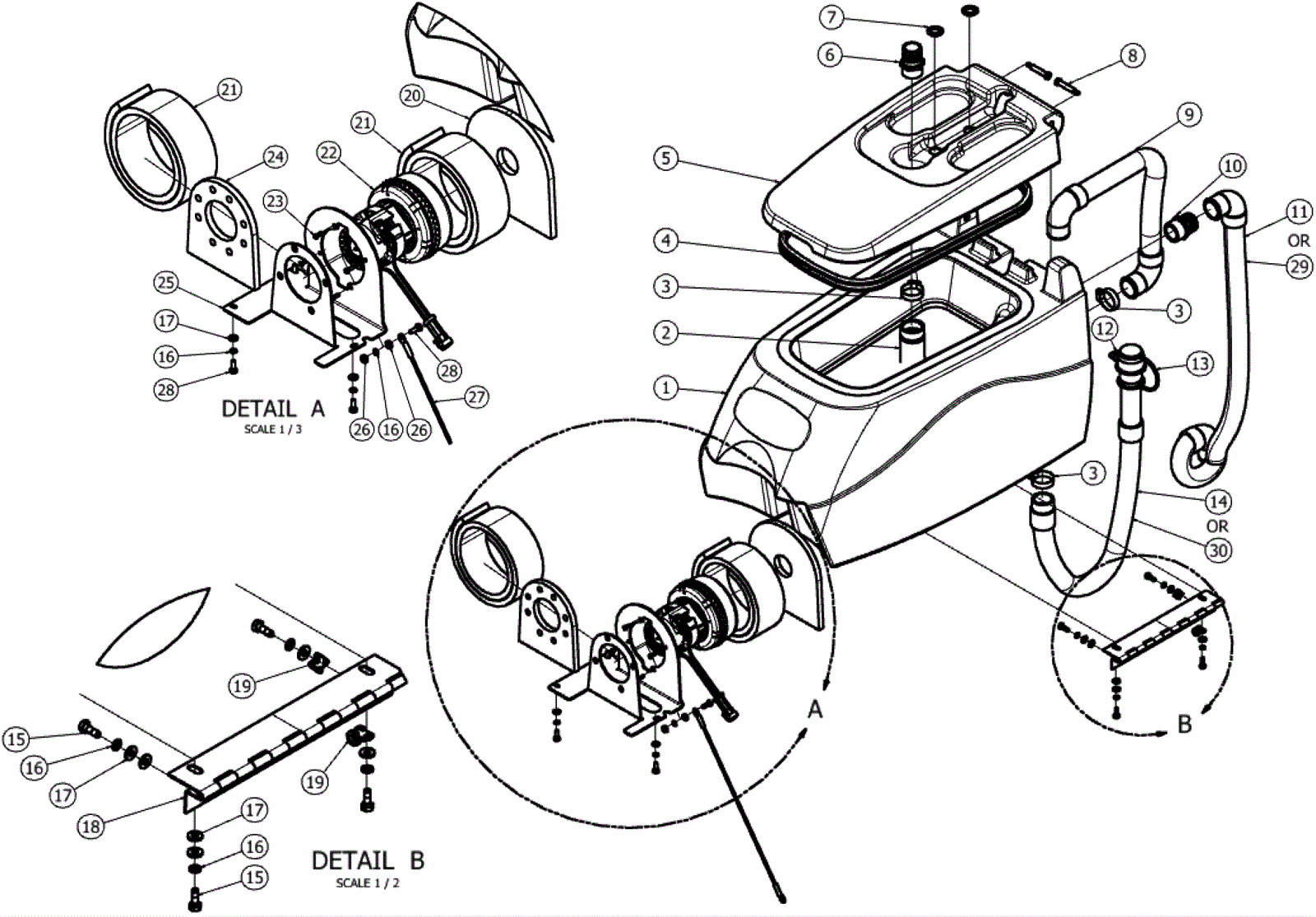

S-20 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-3439 Recovery tank $329.13 1 usually ships 13-21 days
2 206-3244 Shut off float $155.13 1 usually ships 13-21 days
3 206-0071 Clamp $7.23 3 usually ships 13-21 days
4 206-4027 Lid cover gasket $20.03 1 usually ships 13-21 days
5 206-3440 Recovery tank cover $57.74 1 usually ships 13-21 days
6 206-3245 Fitting $9.41 1 usually ships 1-5 days
7 206-4031 Plug $5.45 2 usually ships 13-21 days
8 206-3250 Screw 3/8 x 1 3/4 shoulder stainless steel $24.01 2 usually ships 13-21 days
9 206-3247 1 1/2 inch vacuum hose $88.61 1 usually ships 13-21 days
10 206-3255 Fitting $22.60 1 usually ships 13-21 days
11 206-3441 Squeegee hose $100.91 1 ships same day
12 206-5485 Hose support strap $18.78 1 usually ships 13-21 days
13 206-6410 Drain hose cap $53.41 1 (for hose 206-3253) usually ships 13-21 days
14 206-3253 Drain hose assembly $84.57 1 ships same day
15 206-1899 Screw 1/4-20 x 3/4 hex head with patch Call for price 4 (after SN 124470) usually ships 13-21 days
16 999-0060 Washer 1/4 split lock plain finish $0.99 8 ships same day
17 206-4820 Washer $3.14 9 usually ships 13-21 days
18 206-3442 Recovery tank hinge $49.02 1 usually ships 13-21 days
19 206-3205 P clamp $3.92 2 usually ships 13-21 days
20 206-4032 Noise foam barrier $12.99 1 usually ships 13-21 days
21 206-3446 Noise foam $21.90 2 usually ships 13-21 days
22 206-3443 24V 2 stage vacuum motor peripheral $431.38 1 usually ships 13-21 days
23 999-0572 Screw 10-24 x 1/2 pan head self-tapping zinc $0.99 1 ships same day
24 206-3266 Vacuum gasket $10.62 1 usually ships 13-21 days
25 206-1678 Vacuum mounting bracket $90.59 1 (after SN 124470) usually ships 13-21 days
26 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
27 206-4030 Tank retention cable $38.59 1 usually ships 13-21 days
28 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 4 ships same day
29 206-4028 Squeegee hose (chemical resistant) $267.15 1 usually ships 13-21 days
30 206-4029 Drain hose capped chem resist $211.40 1 usually ships 13-21 days
N/S 206-3444 Isolator mounting bracket $26.61 1 (before SN 124471) usually ships 13-21 days
N/S 206-3445 Vacuum mounting cover (OBSOLETE) $64.03 1 (before SN 124471) usually ships 1-5 days
N/S 206-3249 Rubber mount $14.20 2 (before SN 124471) usually ships 13-21 days
N/S 206-4026 Instruction sheet (OBSOLETE) Call for price 1 (included in KIT1) usually ships 13-21 days
N/S 206-3446 Noise foam $21.90 2 (included in KIT1) usually ships 13-21 days
N/S 206-1007 Clamp $2.57 4 (included in KIT1) usually ships 1-5 days
N/S 206-3266 Vacuum gasket $10.62 1 (included in KIT1) usually ships 13-21 days
N/S 206-4032 Noise foam barrier $12.99 1 (included in KIT1) usually ships 13-21 days
KIT1 206-3443 24V 2 stage vacuum motor peripheral $431.38 1 usually ships 13-21 days
