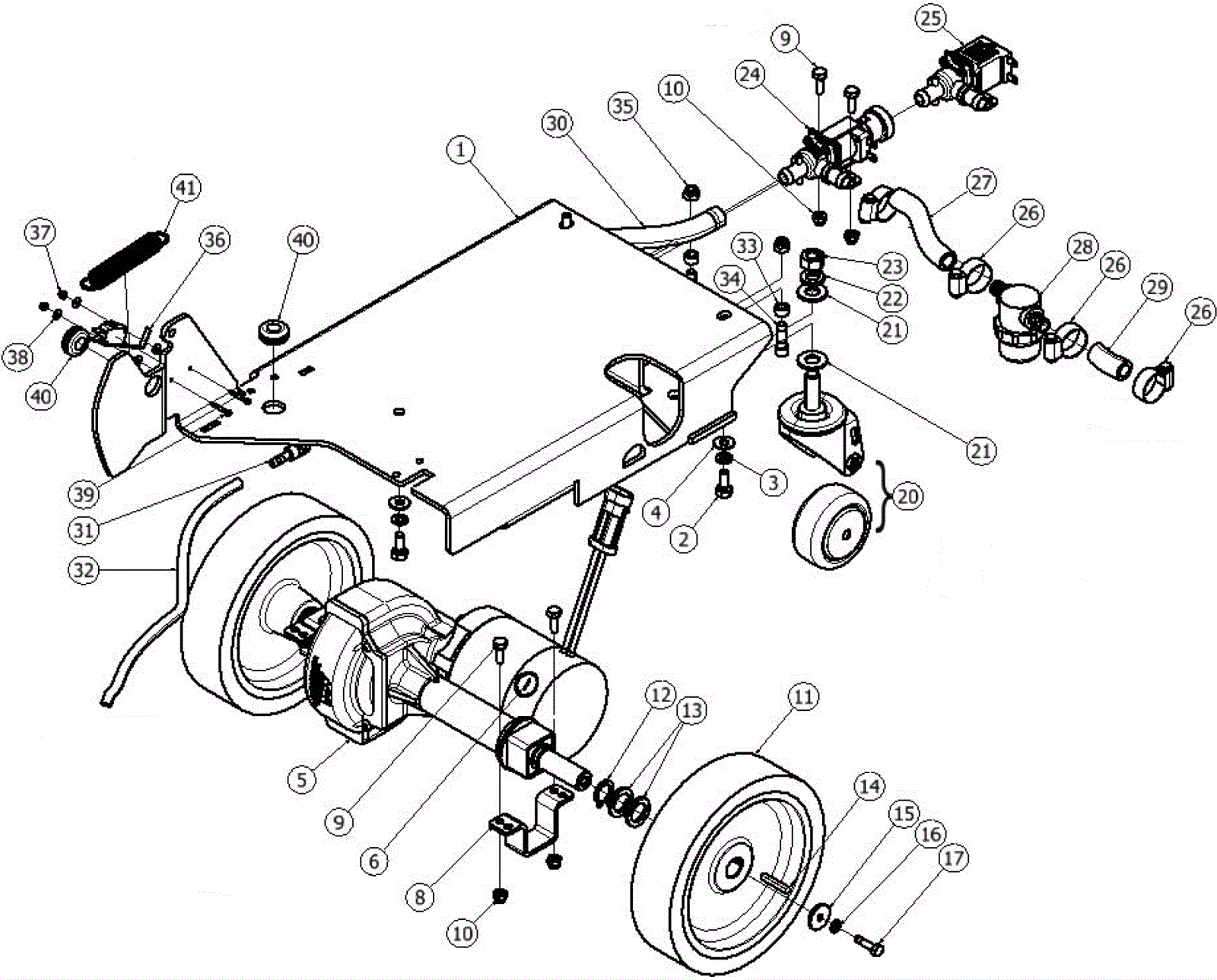

S-20 ORBITAL Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1a 206-3424 Frame $236.07 1 (traction model) usually ships 1-5 days
1b 206-3432 Frame $304.29 1 (pad assist model) usually ships 1-5 days
2 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 3 (traction model) ships same day
3 999-0553 Washer 5/16 medium split lock stainless steel $0.99 3 (traction model) ships same day
4 206-5233 Washer 5/16 x .040 flat $2.59 3 (traction model) ships same day
5 206-3425 24V transaxle $1,395.70 1 (traction model) ships same day
6 206-4024 Brush kit $133.24 1 (traction model) usually ships 5-15 days
8 206-3193 Transaxle retaining bracket $20.71 2 (traction model) usually ships 5-15 days
9 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 6 ships same day
10 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 6 ships same day
11 206-3426 Traction wheel $223.85 2 (traction model) ships same day
12 206-3427 Retaining ring $3.32 2 (traction model) usually ships 5-15 days
13 206-3428 Keyed washer $12.91 4 (traction model) usually ships 5-15 days
14 206-3429 Square keyway $3.31 2 (traction model) usually ships 5-15 days
15 999-0016 Washer 1/4 flat plain finish $0.99 2 (traction model) ships same day
16 999-0060 Washer 1/4 split lock plain finish $0.99 2 (traction model) ships same day
17 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 2 (traction model) ships same day
20 206-3430 3 inch caster wheel kit $140.31 2 usually ships 5-15 days
21 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 3 ships same day
22 206-5444 Lock washer $2.57 2 usually ships 5-15 days
23 206-4022 Hex nut $3.47 2 usually ships 5-15 days
24 206-3191 24V solution solenoid valve $193.88 1 usually ships 5-15 days
25 206-4025 24V solenoid valve $165.74 1 (traction model) usually ships 5-15 days
26 206-0080 Hose clamp $5.66 4 usually ships 1-5 days
27 206-0157 Clear hose (sold by the inch) $3.63 4 in ships same day
28 206-3192 Screen filter $43.63 1 usually ships 5-15 days
29 206-0157 Clear hose (sold by the inch) $3.63 2 in ships same day
30 206-0157 Clear hose (sold by the inch) $3.63 10 in ships same day
31 206-3231 Reducer fitting $5.16 1 usually ships 5-15 days
32 206-0099 1/4 inch hose (clear) (sold by the inch) $4.08 19 in (traction model) usually ships 5-15 days
33 206-3431 Spacer $22.24 2 usually ships 5-15 days
34 999-1822 Screw 5/16-18 x 1 socket cap stainless steel $1.18 2 ships same day
35 999-0593 Nut 5/16-18 hex stainless steel $0.99 2 ships same day
36 206-3222 Snap switch $54.40 1 ships same day
37 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 2 ships same day
38 999-1521 Washer M3 flat stainless steel $0.99 4 ships same day
39 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
40 206-4023 Grommet $3.16 2 usually ships 5-15 days
41 206-3465 Extension spring $20.63 1 usually ships 1-5 days
N/S 206-1671 Motor $450.79 1 (traction model) usually ships 5-15 days
N/S 206-3433 8 inch wheel with bearing $88.61 2 (pad assist model) ships same day
N/S 999-0202 Nut 1/2-13 hex plain finish $0.99 2 (pad assist model) ships same day
N/S 206-0099 1/4 inch hose (clear) (sold by the inch) $4.08 17 in (pad assist model) usually ships 5-15 days
