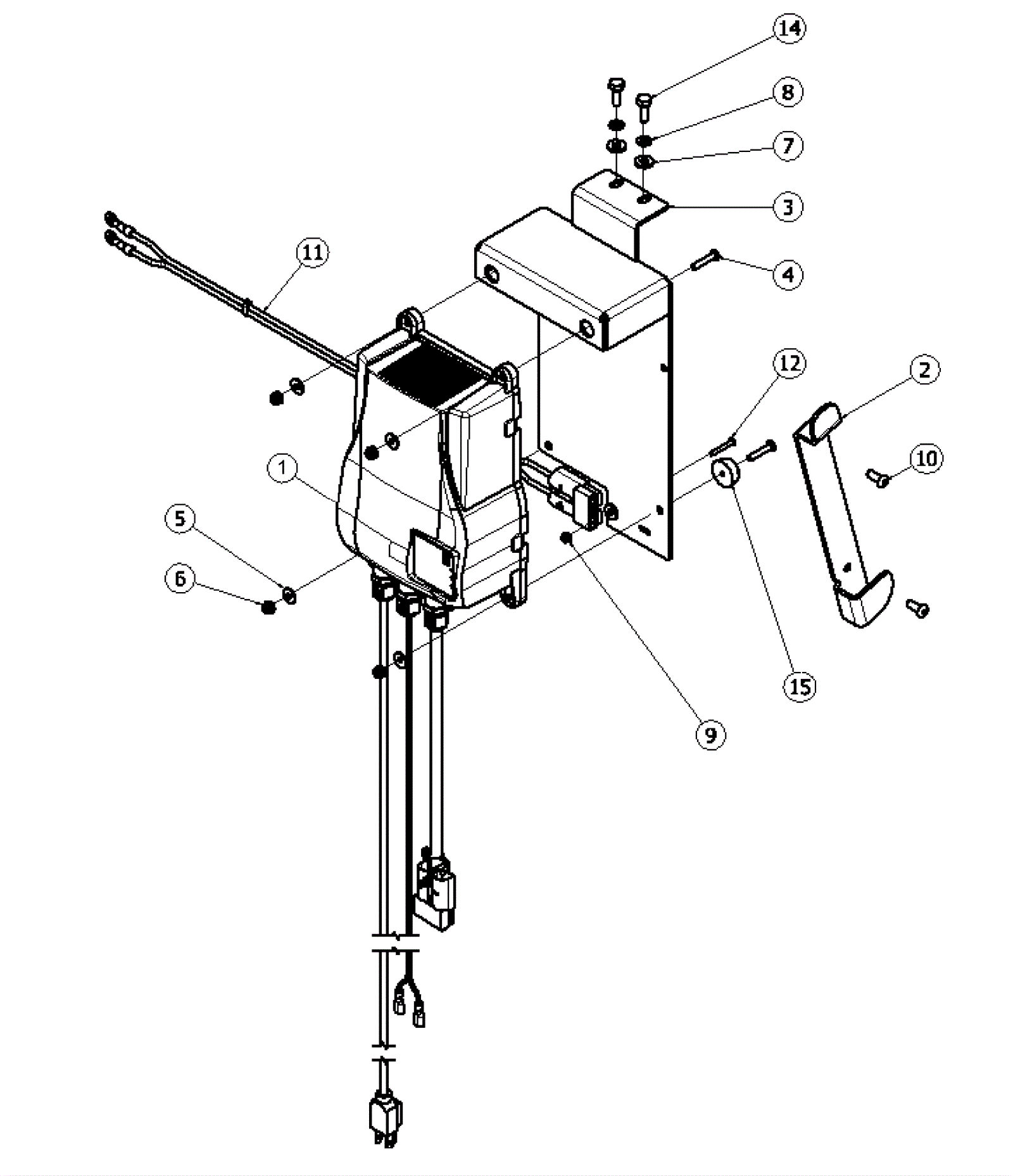

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
206-3420
|
24V onboard charger |
1 |
|
|
2 |
206-3421
|
Cord bracket |
1 |
|
|
3 |
206-3422
|
Charger mounting bracket |
1 |
|
|
4 |
999-9067
|
Screw 10-32 x 1 pan head phillips zinc plated |
4 |
|
|
5 |
999-0998
|
Washer #10 flat stainless steel |
6 |
|
|
6 |
999-1353
|
Nut 10-32 hex nylon lock insert stainless steel |
4 |
|
|
7 |
206-4820
|
Washer |
2 |
|
|
8 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
9 |
999-0337
|
Nut 6-32 nylon insert lock stainless steel |
1 |
|
|
10 |
999-0395
|
Screw 1/4-20 x 5/8 button head socket plain finish |
2 |
|
|
11 |
206-3394
|
Battery charger harness |
1 |
|
|
12 |
999-0511
|
Screw 6-32 x 1 pan head phillips zinc plated |
1 |
|
|
14 |
999-1099
|
Bolt 1/4-20 x 3/4 hex head stainless steel |
2 |
|
|
15 |
206-5025
|
Bumper |
2 |
|
|
