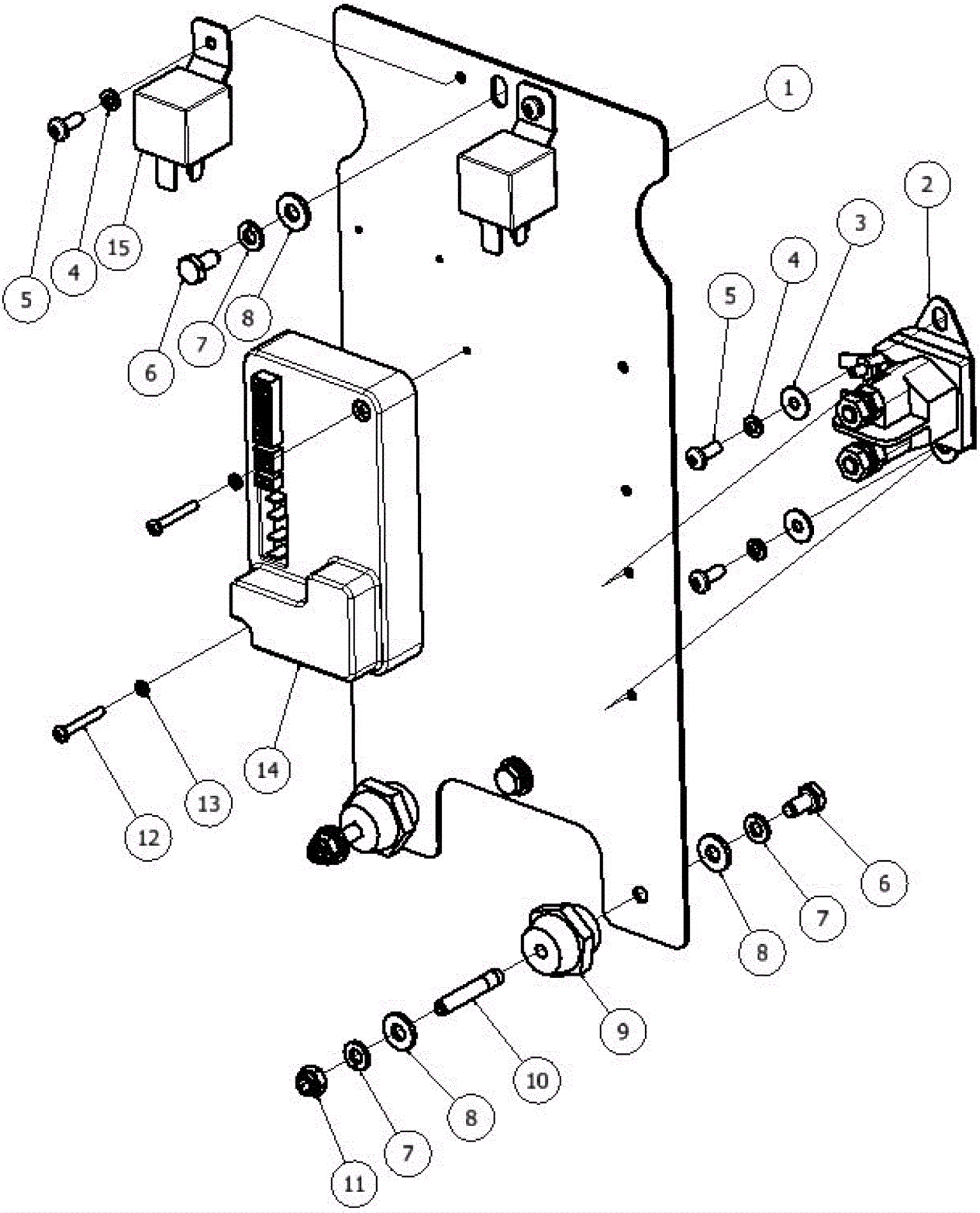

S-28 Electrical Assembly

#PartDescription ReqNotesAvailability
1 206-3414 Electronic panel 1 usually ships 1-5 days
2 206-3416 24V 100amp contactor 1 (qty 2 for S-28 disk and S-32) usually ships 17-25 days
2 999-0998 Washer #10 flat stainless steel 2 (qty 4 for S-28 disk and S-32) usually ships 11-14 days
4 999-0053 Washer #10 split lock plain finish 4 (qty 6 for S-28 disk and S-32) (qty 3 for S-28 orbital) usually ships 11-14 days
5 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel 4 (qty 6 for S-28 disk and S-32) (qty 3 for S-28 orbital) usually ships 11-14 days
6 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel 4 usually ships 11-14 days
7 999-0060 Washer 1/4 split lock plain finish 6 usually ships 11-14 days
8 206-4820 Washer 6 usually ships 17-25 days
9 206-3417 Insulated stand off 2 usually ships 1-5 days
10 206-3418 Screw 1/4-20 x 1 1/4 set zinc 2 usually ships 1-5 days
11 206-4047 Nut 1/4-20 flex lock zinc 2 usually ships 17-25 days
12 999-0511 Screw 6-32 x 1 pan head phillips zinc plated 2 usually ships 11-14 days
13 206-5387 Washer 4 usually ships 1-5 days
14 206-3413 Controller 1 usually ships 17-25 days
15 206-3415 24V 70amp relay 2 usually ships 17-25 days
