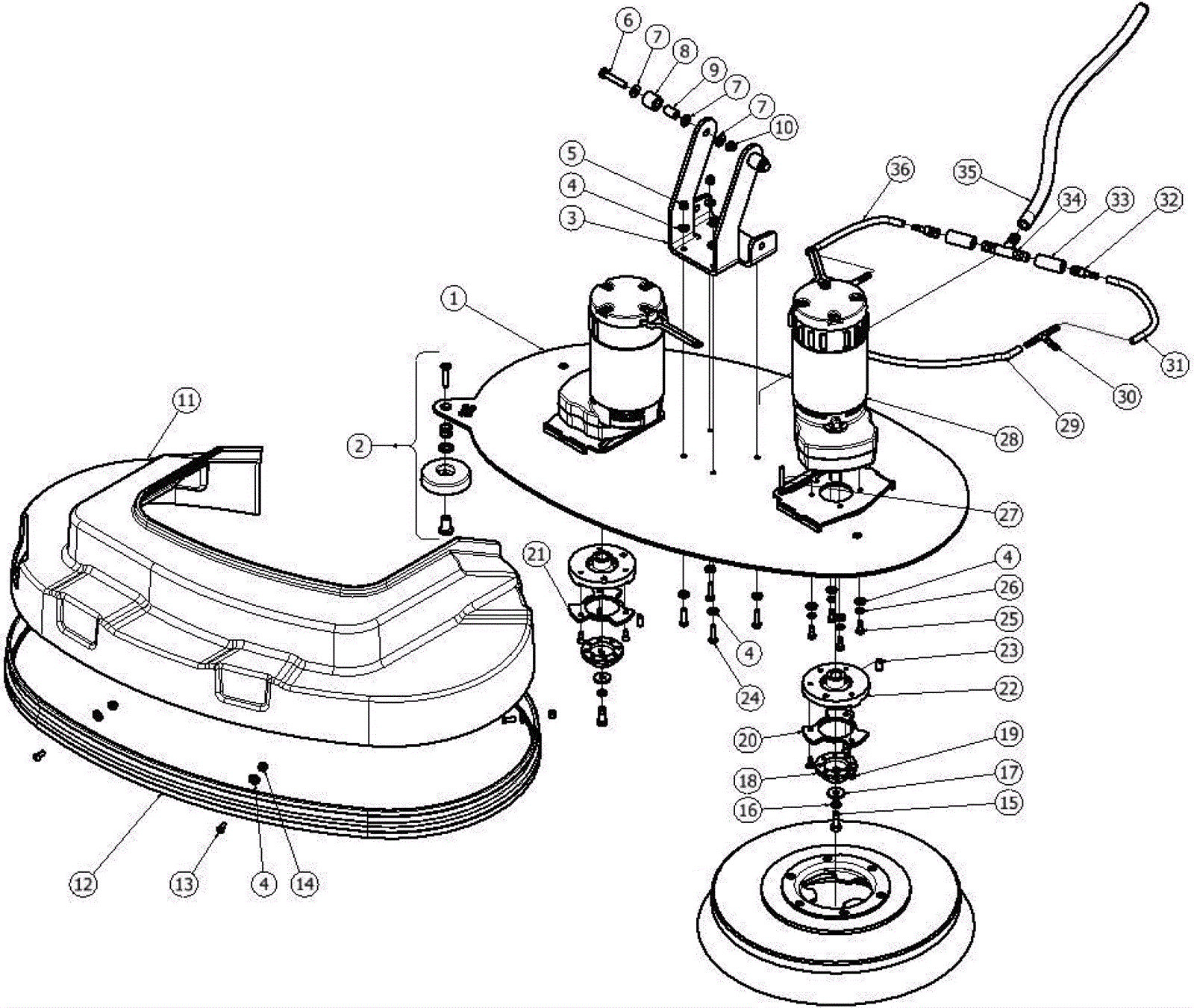

S-32 Scrub Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 206-3762 13 inch polypropylene brush $147.61 2 ships same day
2 206-3763 13 inch nylon brush $224.40 2 usually ships 12-16 days
3 206-3764 13 inch grit brush $384.17 2 usually ships 1-5 days
4 206-3765 Pad driver $181.40 2 usually ships 12-16 days
5 206-3274 Guide wheel $5.86 1 usually ships 12-16 days
6 206-3343 Square keyway $14.20 2 usually ships 1-5 days
7 206-3315 Spacer $16.35 3 usually ships 12-16 days
8 206-4067 Shroud assembly $214.59 1 usually ships 12-16 days
9 206-3349 28 inch shroud head $74.14 1 usually ships 12-16 days
10 206-3350 Skirt $229.08 1 usually ships 12-16 days
11 999-0395 Screw 1/4-20 x 5/8 button head socket plain finish $0.99 4 ships same day
12 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
13 206-4820 Washer $3.14 20 usually ships 12-16 days
14 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
15 206-5233 Washer 5/16 x .040 flat $2.59 7 ships same day
16 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
17 206-3316 Left hand driver guide $64.35 1 usually ships 12-16 days
18 206-3344 Plastic pad guide $106.61 2 usually ships 12-16 days
19 206-3319 Plastic roller $11.17 2 ships same day
20 999-1824 Screw 1/4-20 x 5/8 flat head socket stainless steel $2.01 6 ships same day
21 999-0551 Bolt 5/16-18 x 1 3/4 hex head stainless steel $1.63 2 ships same day
22 999-1825 Screw 5/16-18 x 1 1/2 flat head socket SS $2.00 1 ships same day
23 999-0593 Nut 5/16-18 hex stainless steel $0.99 3 ships same day
24 206-3346 Head support bracket $62.85 1 usually ships 1-5 days
25 206-3301 Flange bushing $11.84 4 usually ships 12-16 days
26 206-3275 Screw 1/2 x 1/2 shoulder $13.33 4 usually ships 12-16 days
27 206-3347 Tee fitting $6.41 2 usually ships 1-5 days
28 206-3348 Mounting plate gimbal $70.83 2 usually ships 1-5 days
29 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
30 999-1482 Nut 3/8-16 nylon lock stainless steel $1.06 4 ships same day
31 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 4 ships same day
32 999-0060 Washer 1/4 split lock plain finish $0.99 12 ships same day
33 999-0609 Nut 1/4-20 hex stainless steel $0.99 4 ships same day
34 206-4062 Brush motor $1,446.06 2 usually ships 12-16 days
35 206-4039 Carbon brush kit $153.95 1 usually ships 12-16 days
36 206-3352 28 inch mounting plate $200.80 1 usually ships 1-5 days
37 206-3337 Right side driver guide $45.62 1 usually ships 12-16 days
38 206-0099 1/4 inch hose (clear) (sold by the inch) $4.08 16 in usually ships 12-16 days
39 206-0099 1/4 inch hose (clear) (sold by the inch) $4.08 6 in usually ships 12-16 days
40 206-0099 1/4 inch hose (clear) (sold by the inch) $4.08 6 in usually ships 12-16 days
41 206-3353 Rubber bumper $15.80 4 usually ships 1-5 days
42 206-3230 Tee fitting $7.29 1 usually ships 12-16 days
43 206-3231 Reducer fitting $5.16 2 usually ships 12-16 days
44 206-0157 Clear hose (sold by the inch) $3.63 2 in ships same day
45 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 8 ships same day
46 206-3354 Retaining bracket $11.03 2 usually ships 12-16 days
47 206-0157 Clear hose (sold by the inch) $3.63 20 in ships same day
48 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
49 206-3310 Washer 1/2 wave $2.59 1 ships same day
50 206-4035 Brush hub $204.31 2 usually ships 12-16 days
51 206-4037 Press-in plunger ball $48.73 2 usually ships 12-16 days
N/S 206-1388 Pad holder $66.18 2 usually ships 12-16 days
